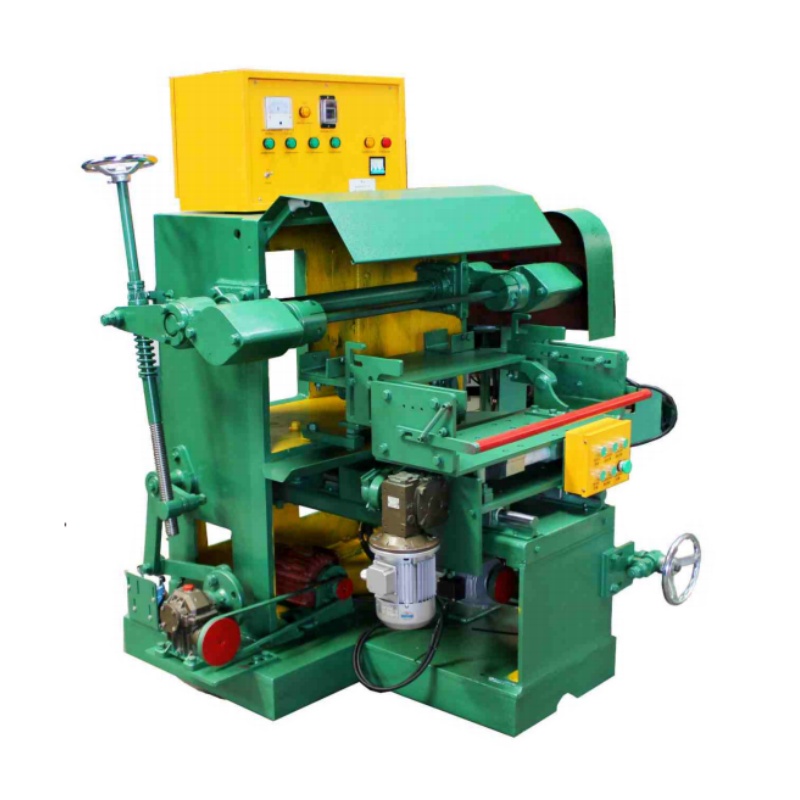

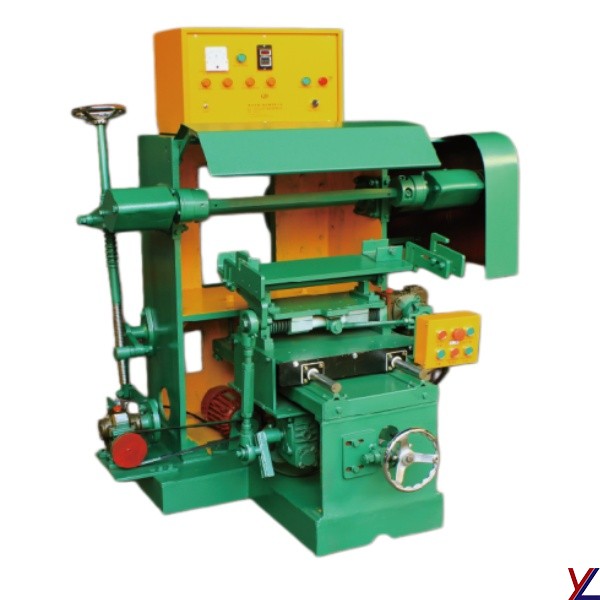

The Single-Axis Concave Polishing Machine is an automated metal polishing system designed for ease of operation and user-friendliness. Both its worktable and polishing curvature can be customized to meet the specific requirements of various products, and the magnitude of the polishing arc is also flexibly adjustable.
The primary adjustment functions of this equipment are executed via mechanical mechanisms; additionally, the polishing curvature can be fine-tuned through custom programming.
Brand :
YOL-POLISHINGProduct Name :
Single-Axis External Bending Polishing MachineColor :
Green/WhiteProduct Model :
YL-ATPM-002custom made :
Different adjustable curvature size ranges can be customized according to the product.Product Uses :
Used for grinding and polishing the concave surfaces and necks of spoons, as well as the outer curved surfaces of certain metal products.Product Introduction
1. The Single-Axis Outer-Curve Polishing Machine is designed for the grinding and polishing of the outer curved surfaces and neck sections of stainless steel spoons and forks following their forming process.
2. This machine can also be utilized for the surface grinding, polishing, and satin finishing of various metal components with diverse shapes.
3. The machine features simple operation and adjustment mechanisms. It employs a tapered motor to ensure precise positioning of the grinding wheel's opening and closing movements. The electrical control cabinet is equipped with export-grade electrical components and imported limit switches, making the machine user-friendly and durable while minimizing maintenance requirements and ensuring smooth production flow.
4. With a workbench width of 600 mm, the machine can polish multiple products simultaneously, enabling batch production to significantly boost efficiency and reduce manufacturing costs. It is capable of rapidly removing surface contaminants—such as oil stains, burrs, and oxide scale—as well as smoothing rough surfaces, thereby enabling products to achieve a high-gloss mirror finish.
Technical Parameters:
Polishing Roller Drive Motor: 7.5 kW - 4-pole × 1
Polishing Wheel Lateral Oscillation Motor: 0.37 kW - 4-pole × 1; Gearbox Model: WPA40-20
Worktable Feed Motor: 0.55 kW - 4-pole × 1; Gearbox Model: WPS60-60
Roller Opening/Closing Motor: Conical Motor 0.4 kW - 4-pole × 1; Gearbox Model: WD47-30
Polishing Wheel Pressure Motor: 0.4 kW (Pressure Adjustable)
Voltage: 380 V, 50 Hz (Voltage Adjustable)
Spindle Speed: 1800–2200 RPM (Supports Variable Frequency Speed Control)
Polishing Duration: 0–3 minutes (Adjustable)
Spindle Length: 600 mm
Worktable Width: 600 mm
Overall Dimensions: 1600 × 1450 × 1550 mm (L × W × H)
Machine Weight: 1100 kg
Consumable Types: Cloth wheels, sisal wheels, ventilated wheels, nylon wheels, flap wheels, wing wheels, etc.
Consumable Diameter: 100 mm – 300 mm
Applicable Products
suitable for door hinges,spoon handles,sides of spoons,sides of table knives,forks,ordinary hardware flat products,ets
Case

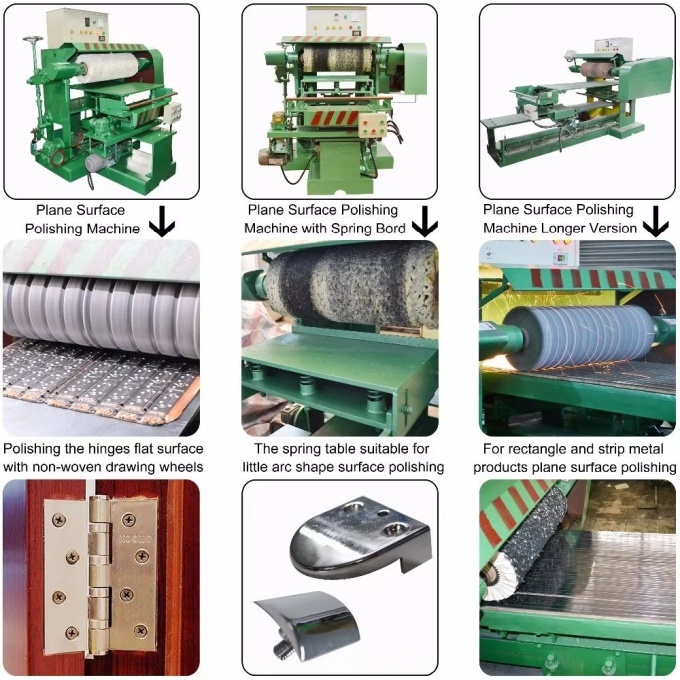

Door hinges are polished and ground.
1. Door hinges are flat products. During grinding, a grinding wheel with polishing abrasive is used, followed by a cloth polishing wheel. For a brushed finish, a nylon wheel is used.
2. This machine, in conjunction with fixtures, can be used throughout the production line to perform various processes such as polishing, grinding, and brushing.
3. If you have needs for door hinge polishing and grinding, please contact me to discuss specific solutions.

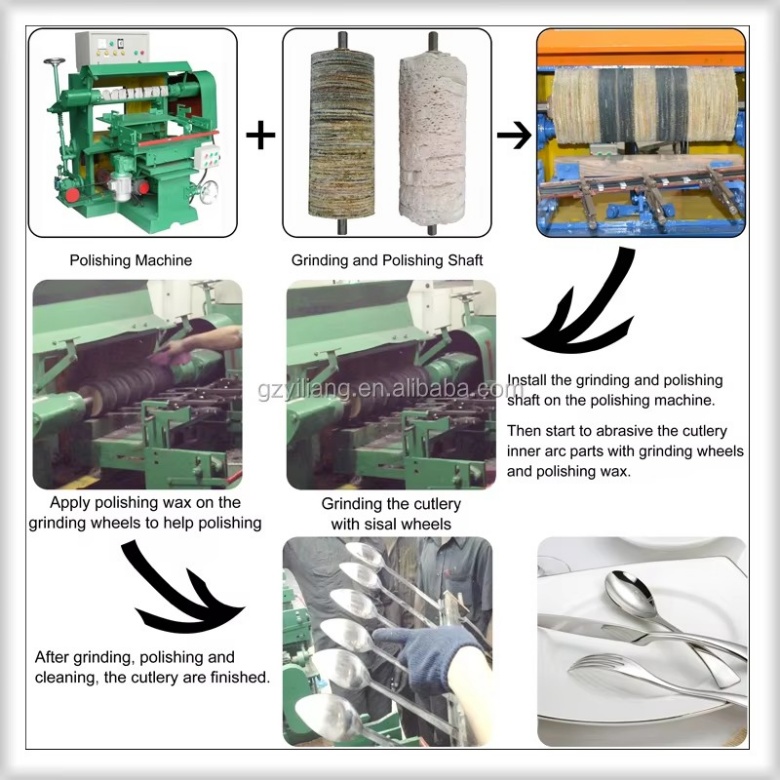

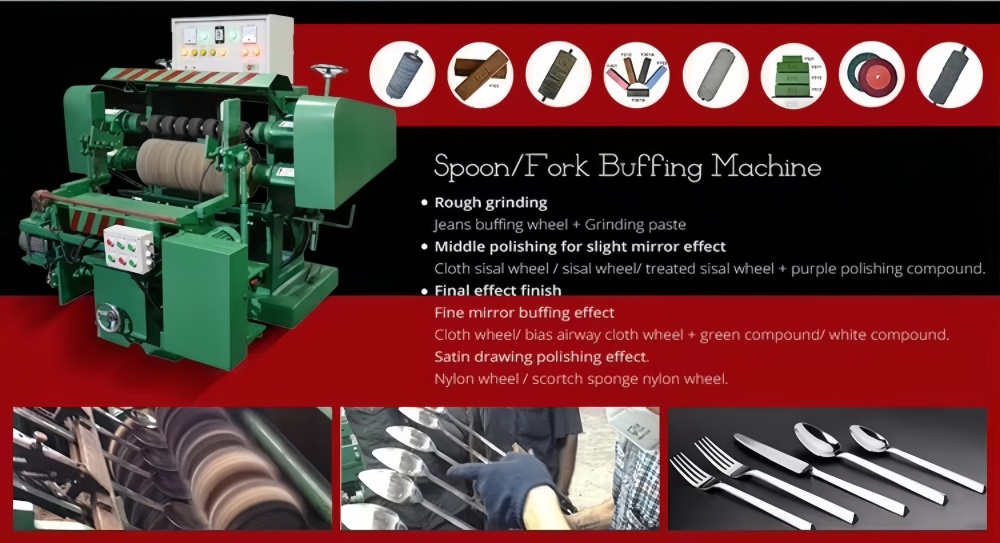

Polishing of stainless steel tableware (spoons, forks, knives).
1. For stainless steel spoons with curved surfaces, a small curved grinder can be used to polish the concave areas to remove stretch marks from the stamping process.
2. This machine is specifically designed for grinding and polishing spoons and small curved surfaces throughout the tableware production line.
3. If you have any needs for polishing and grinding stainless steel or iron tableware, please contact me to discuss specific solutions.
--

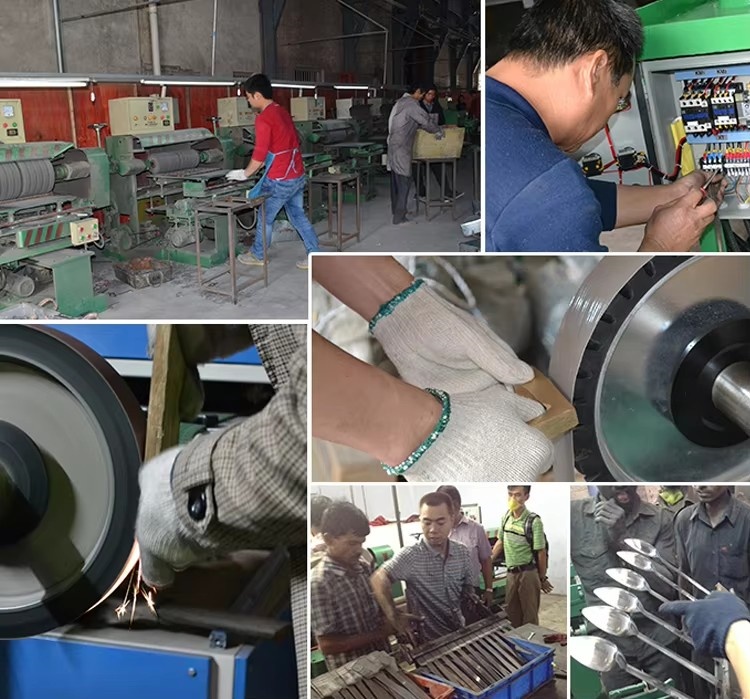

Engineer training.
Based on customer needs, we provide on-site training at their factories. Our training methods include:
1. Remote video training: Before shipment, we will film usage videos and user manuals using the customer's machines, products, and consumables.
2. Customers send personnel to their factories to learn how to use the machines.
3. We send engineers to the customer's factories to train their employees on how to use the machines.
--
