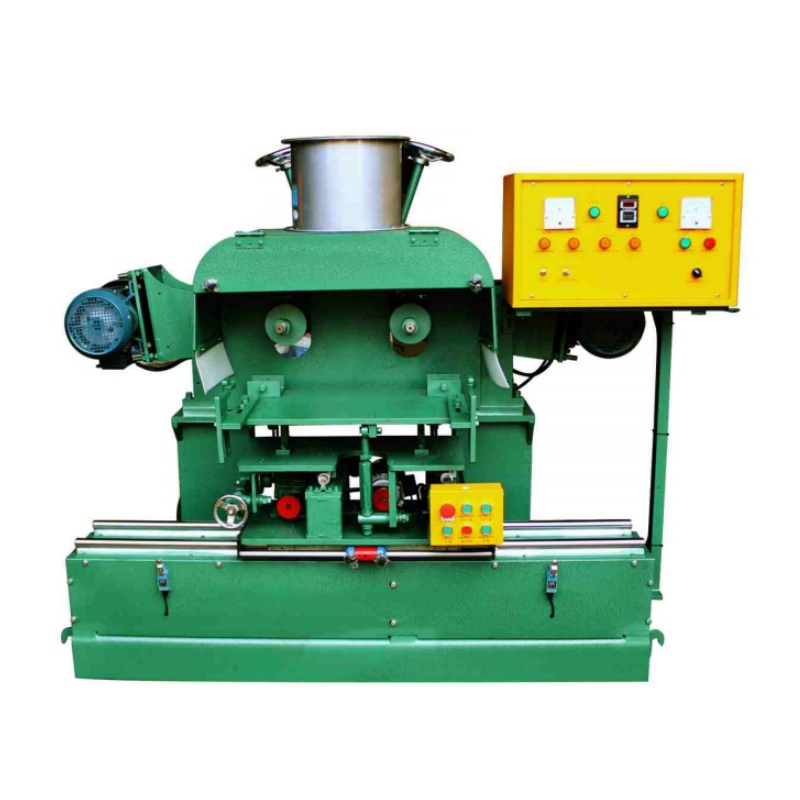

The YL-PM-005 is an advanced double-head horizontal polishing machine engineered for high-efficiency tableware manufacturing. Building on the proven single-head design, this upgraded model features dual polishing heads that simultaneously process multiple workpieces, dramatically increasing throughput while maintaining exceptional surface quality.
Brand :
YOL-POLISHINGProduct Name :
Double-Head Horizontal Surface Polishing Machine YL-ATPM-005Color :
Green/WhiteProduct Model :
YL-ATPM-005custom made :
Different adjustable curvature size ranges can be customized according to the product.Product Uses :

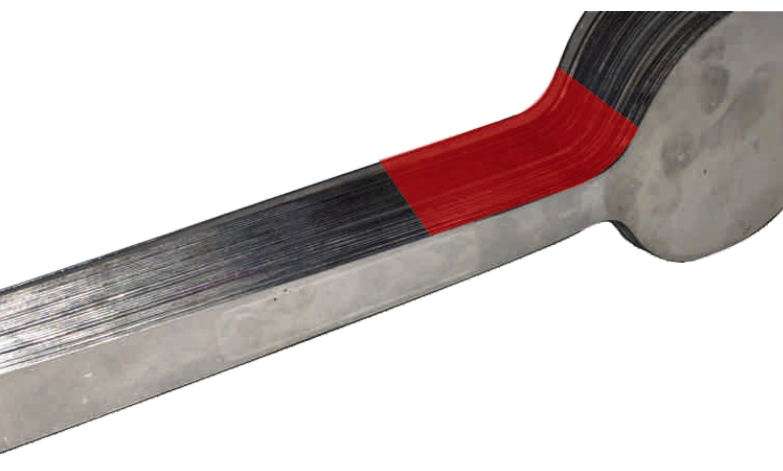

Used for grinding and polishing the necks of spoons, as well as for the lateral polishing of the concave curved surfaces of certain metal products.Product Introduction
1、Precision Polishing for Complex Contours
This machine is purpose-built to handle the most challenging polishing positions on cutlery — the inner arc of knife fork sockets, the inner arc of fork sockets, and the outer arcs on both sides of forks and spoons (collectively known as R connector positions). These areas, once achievable only through time-consuming manual labor, are now processed with consistent precision on a single integrated platform.
2、From Manual to Mechanized Production
The dual-head configuration represents a significant leap forward in tableware manufacturing. By enabling true flow-line and mechanized production, the YL-PM-005 replaces manual polishing operations that were bottlenecks in traditional workflows. The result: substantially higher output volumes paired with uniformly superior product quality — batch after batch.
3、Key Features:
Double-head design — dual polishing stations for doubled efficiency
R connector polishing — handles knife fork sockets, fork inner arcs, fork and spoon outer arcs
Reliable performance — consistent results across high-volume runs
Easy adjustment — quick setup for different cutlery sizes and specifications
Industrial-grade construction — green steel frame with dedicated electrical control cabinet
4、Specifications:
Model: YL-PM-005
Type: Double-head horizontal polishing
Application: Table knives, forks, and spoons — R connector positions
Control: Independent electrical cabinet with display panel
Benefits: High output, dual-head efficiency, consistent quality, simple operation
YILIANG Polishing — Powering the Future of Tableware Manufacturing.
Technical Parameters:
Roller Drive Motors: 4 kW, 4-pole × 2
Lateral Oscillation Motor: 370 W, 4-pole × 1
Worktable Feed Motor: 0.55 kW, 4-pole × 1
Roller Opening/Closing Motor: Conical Motor, 0.4 kW, 4-pole × 1
Voltage: 380 V, 50 Hz (Adjustable)
Spindle Speed: 1800–2200 RPM (Supports Variable Frequency Speed Control)
Grinding Duration: 0–3 minutes (Adjustable)
Dimensions: 1900 × 1200 × 1700 mm (L × W × H)
Machine Weight: 1100 kg
Consumable Diameter: 250–300 mm
Distinguishing Feature (vs. Model Yl-PM-004): The two grinding wheels rotate in opposite directions; this configuration creates a curved surface at the 90-degree joint line during the grinding process.
Applicable Products
The distinction between this model and the Yl-PM-004 lies in the rotation of its twin grinding wheels: they rotate in opposite directions. This configuration ensures that during the grinding process, the 90-degree corner edges of the workpiece are shaped into a curved surface.
Specifically, when polishing stainless steel cutlery—such as spoons, knives, and forks—this feature shapes the side surfaces of the handles into a smooth, rounded arc. Furthermore, this machine is also suitable for the lateral polishing of other curved products, such as scissors or knife handles.
Suitable for door hinges, spoon handles, spoon necks, the sides of dinner knives, forks, concave curved surfaces of metal products, and similar items.
Case
Door hinges are polished and ground.
1. Door hinges are flat products. During grinding, a grinding wheel with polishing abrasive is used, followed by a cloth polishing wheel. For a brushed finish, a nylon wheel is used.
2. This machine, in conjunction with fixtures, can be used throughout the production line to perform various processes such as polishing, grinding, and brushing.
3. If you have needs for door hinge polishing and grinding, please contact me to discuss specific solutions.
Polishing of stainless steel tableware (spoons, forks, knives).
1. For stainless steel spoons with curved surfaces, a small curved grinder can be used to polish the concave areas to remove stretch marks from the stamping process.
2. This machine is specifically designed for grinding and polishing spoons and small curved surfaces throughout the tableware production line.
3. If you have any needs for polishing and grinding stainless steel or iron tableware, please contact me to discuss specific solutions.
--
Engineer training.
Based on customer needs, we provide on-site training at their factories. Our training methods include:
1. Remote video training: Before shipment, we will film usage videos and user manuals using the customer's machines, products, and consumables.
2. Customers send personnel to their factories to learn how to use the machines.
3. We send engineers to the customer's factories to train their employees on how to use the machines.
--
