Brand :
YOL-POLISHINGProduct Name :
Dual-Station Cookware Outer Wall Polishing Machine (YL-QMG-0102)Product Model :
YL-QMG-0102custom made :
The machine can be customized based on the product's external shape, dimensions, and process requirements.Product Uses :
Used for the automatic polishing and grinding of the surfaces of various metal cookware products.Product Introduction

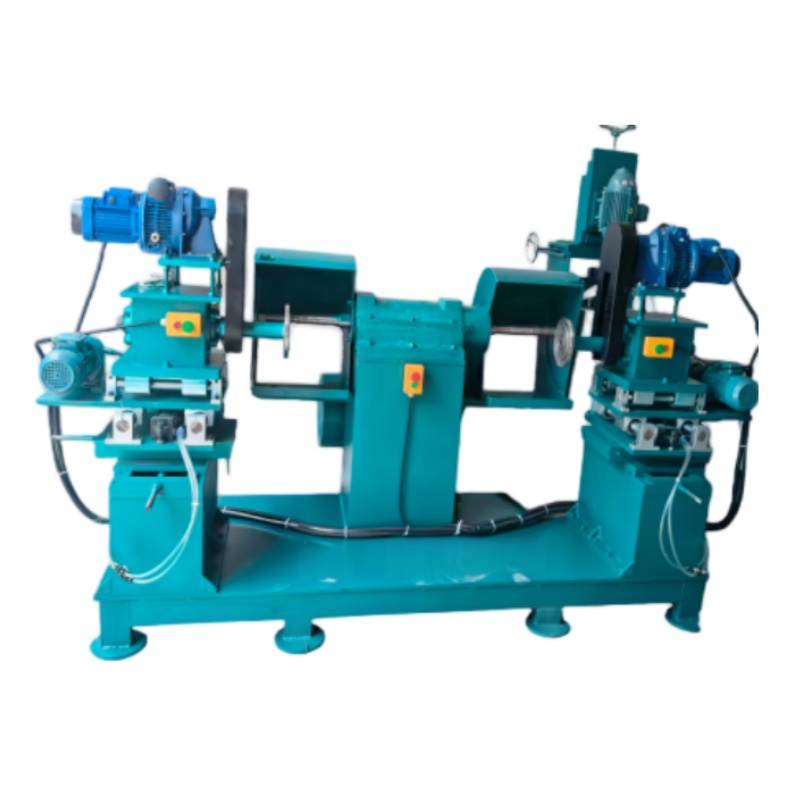

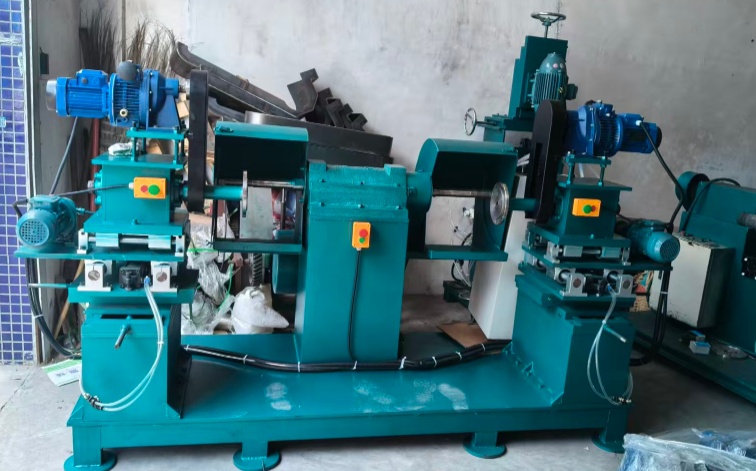

1. Dual-Station Automatic Outer-Wall Polishing Machine for Cookware: This equipment is specifically designed for the grinding and polishing of the outer cylindrical surfaces of various types of cookware. It boasts a wide scope of application, capable of processing metal cookware of diverse dimensions and specifications.
2. This cookware polishing machine is renowned for its ease of adjustment and user-friendly operation. Its core components and motors utilize imported electrical parts, ensuring not only exceptional durability but also an ergonomic, intuitive, and convenient operational experience.
3. Our polishing equipment significantly enhances the surface finish of workpieces, thereby drastically reducing the time required for grinding and polishing processes. Combining time-saving efficiency, energy conservation, and high performance—along with its simple, rapid, and highly effective operation—this machine has become the preferred choice for the high-efficiency grinding and polishing of metal cookware surfaces.
4. Our company offers complimentary, customized process solutions tailored to your specific grinding and polishing requirements. Should you encounter any workpieces requiring surface polishing during your product manufacturing process, please do not hesitate to contact us; we are dedicated to providing you with the most optimized and comprehensive solutions available.
Technical Parameters:
1. Main Unit: One 18.5 kW motor with belt drive.
2. Mold Drive: Two 750 W stepless speed-regulating gear reducers.
3. Two 750 W oscillating gear reducers.
4. Pneumatic cylinder-driven feeding mechanism; the mold shaft features a vacuum suction function.
5. Equipped with an auxiliary tailstock function (removable when not in use).
6. Manual hand-crank adjustment for compensating material loss.
7. Traditional relay-based circuit control system.
Overall Dimensions: Length 3000 mm × Width 1200 mm × Height 1550 mm
Applicable Products
Suitable for the grinding and polishing of the outer cylindrical surfaces and outer bottom surfaces of various metal cookware—including stainless steel pots, iron pans, and others—regardless of their shape or size.
If you are unsure whether this machine is suitable for your needs, please contact us and provide the product specifications; we will design a complete grinding and polishing solution for you—free of charge.
Machine Details
1. If the cookware has a unique or irregular shape, the grinding wheel is usually dressed to a specific profile to achieve precise contact with the product surface for grinding.
2. Since different products require different clamping methods, a dedicated clamp is usually needed for each size product.
3. This machine is specifically designed for grinding or polishing the outer walls of cookware.
4. Customization Service: This equipment can be customized according to customer needs to perfectly fit the specific shape and contour of the cookware and meet the expected polishing surface effect.
