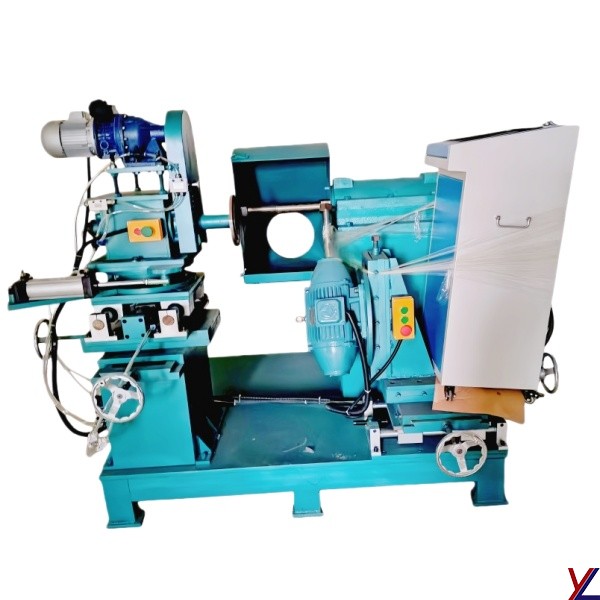

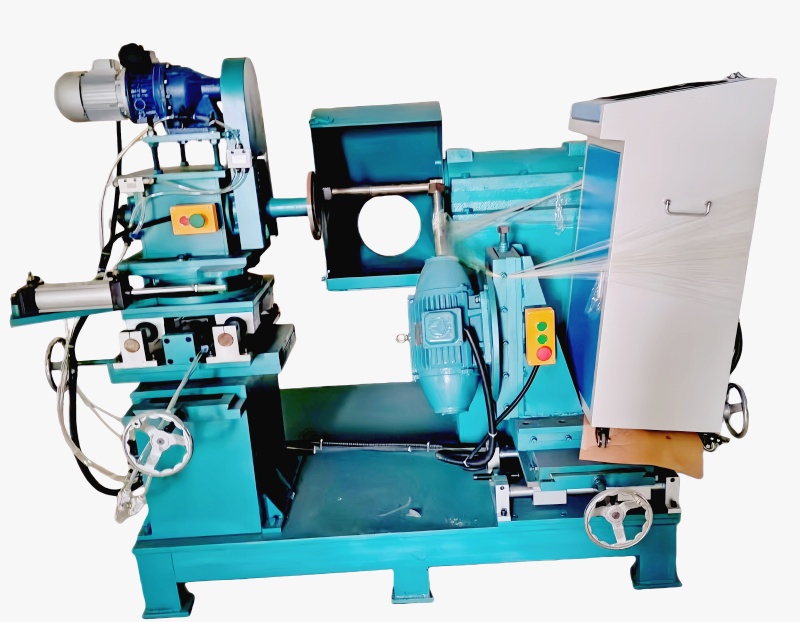

The Dual-Station Cookware Exterior and Bottom Polishing Machine is designed to simultaneously grind and polish the outer cylindrical surfaces and bottoms of metal cookware. Once the machine has been configured, the operator simply needs to load and unload the products and start the machine to complete the task, making for simple and straightforward operation.
Brand :
YOL-POLISHINGProduct Name :
Dual-Station Automatic Polishing Machine for Cookware Outer Sides and BottomsProduct Model :
YL-QMG-0101custom made :
The machine can be customized based on the product's external shape, dimensions, and process requirements.Product Uses :
Used for the automatic polishing and grinding of the surfaces of various metal cookware products.Product Introduction
1. Automatic Polishing Machine for Pot Exteriors and Bases: This equipment is specifically designed for the polishing and grinding of the outer cylindrical surfaces and bases of various types of cookware. It boasts a wide scope of application and is capable of processing metal cookware across a broad range of sizes.
2. This cookware polishing machine is distinguished by its ease of adjustment and user-friendly operation. Its core components and motors utilize imported electrical parts, ensuring not only exceptional durability but also an ergonomic, intuitive, and convenient operational experience.
3. Our polishing equipment significantly enhances the surface finish of workpieces, thereby drastically reducing the time required for grinding and polishing processes. Integrating time-saving, energy-efficient, and high-performance features, and distinguished by its simple and rapid operation, it has become the preferred choice for the efficient surface polishing and grinding of metal cookware.
4. Our company offers complimentary process solutions tailored to your specific polishing and grinding requirements. Should you encounter any workpieces requiring surface polishing during your product manufacturing process, we invite you to contact us at any time; we are dedicated to providing you with the most optimized and comprehensive solutions available.
Technical Parameters:
1. Main Motor: 11 kW × 1 (Belt-driven motor).
2. Mold Drive Motor (Infinitely Variable Speed): 4 kW × 1.
3. Bottom Polishing Motor: 4 kW × 1.
4. Product clamping and polishing operations are actuated by a pneumatic oscillating head.
5. The mold shaft features a vacuum suction function to secure the product firmly within the fixture.
6. Manual hand-crank adjustment for compensating for polishing wheel wear.
7. Control system utilizes traditional time-delay relay circuitry.
8. Machine Weight: 1200 kg.
9. Machine Dimensions: Length 1800 mm × Width 1250 mm × Height 1550 mm.
Applicable Products

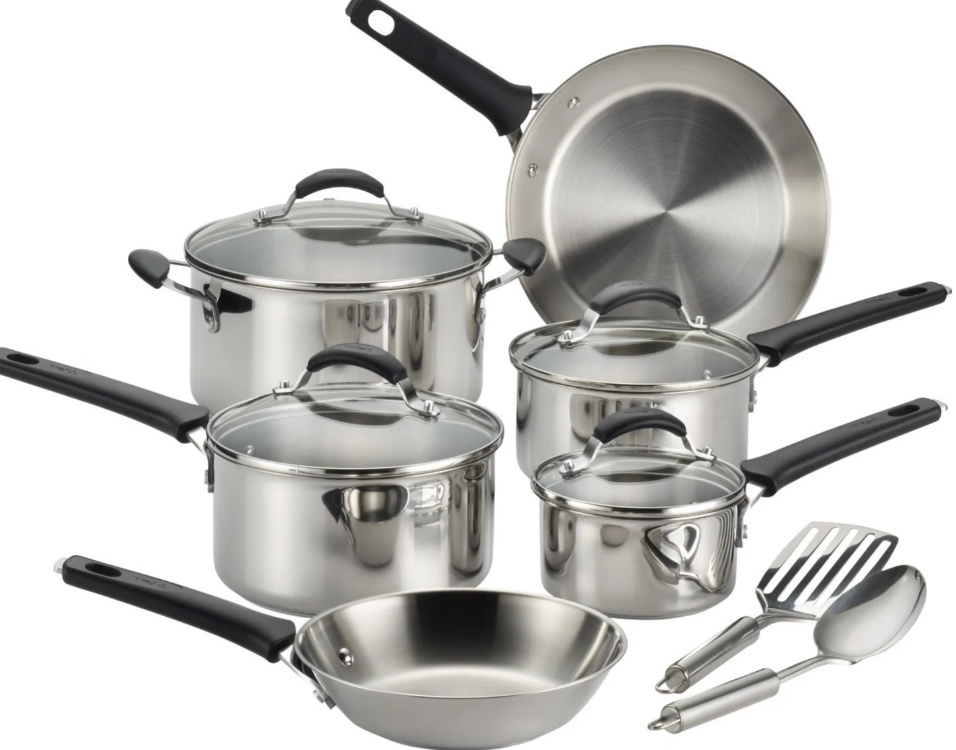

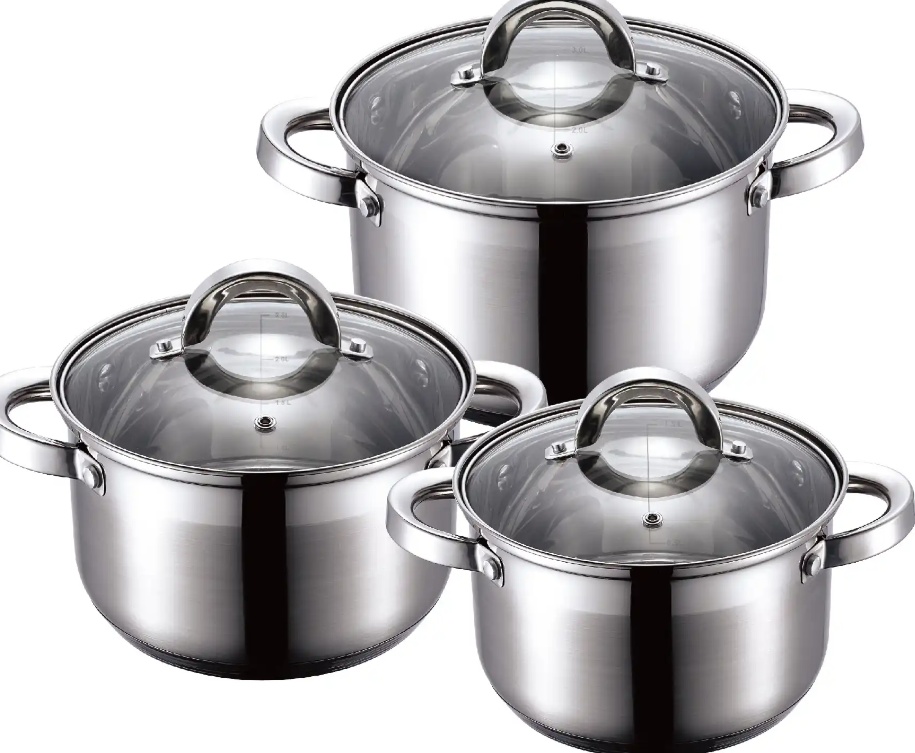

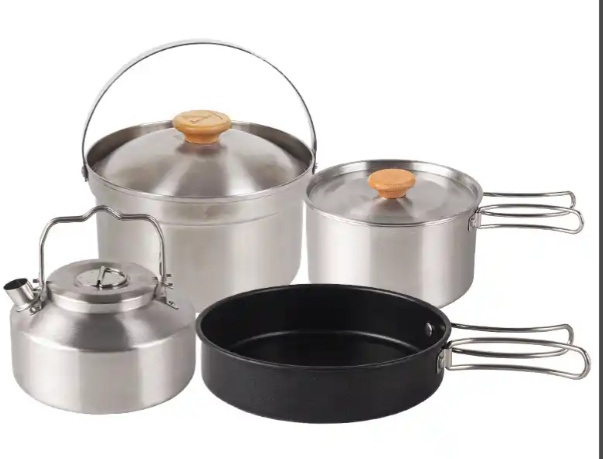

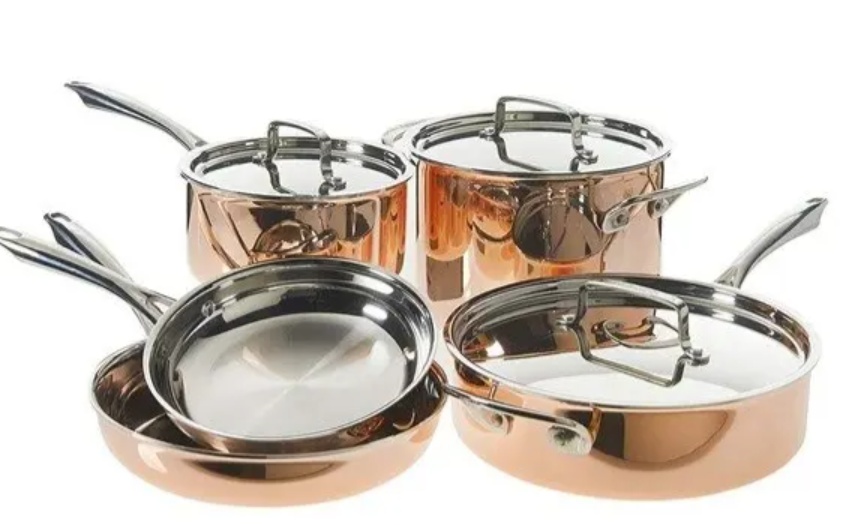

Suitable for the grinding and polishing of the outer cylindrical surfaces and outer bottom surfaces of various metal cookware—including stainless steel pots, iron pans, and others—regardless of their shape or size.
If you are unsure whether this machine is suitable for your needs, please contact us and provide the product specifications; we will design a complete grinding and polishing solution for you—free of charge.
Machine Details

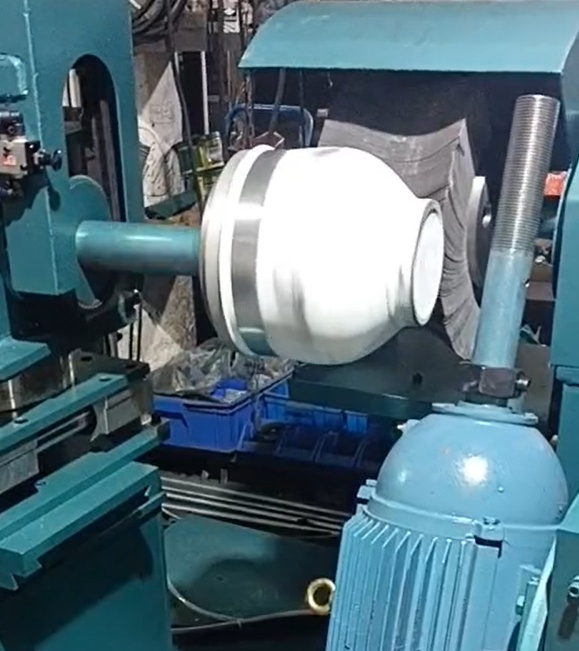

1. As illustrated: If the cookware features a unique or irregular exterior shape, the grinding wheel is typically contoured to precisely fit and grind against the product's surface.
2. Since different products require distinct clamping methods, a specific fixture is typically required for each product size.
3. This machine is designed solely for grinding or polishing the exterior bottom surface of the cookware; achieving a "CD-pattern" finish requires the use of a separate, specialized machine.
4. Customization: The machine can be custom-built to accommodate the specific exterior shape of the cookware and to meet the desired polishing finish requirements.
