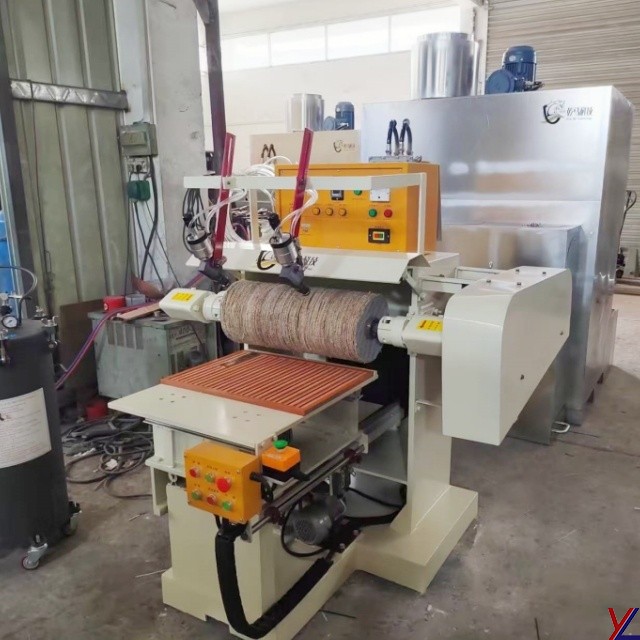

Single-Axis Automatic Flat Polishing MachineSingle-Axis Flat Metal Product Inner Curve Polishing Machine YL-ATPM-6-1

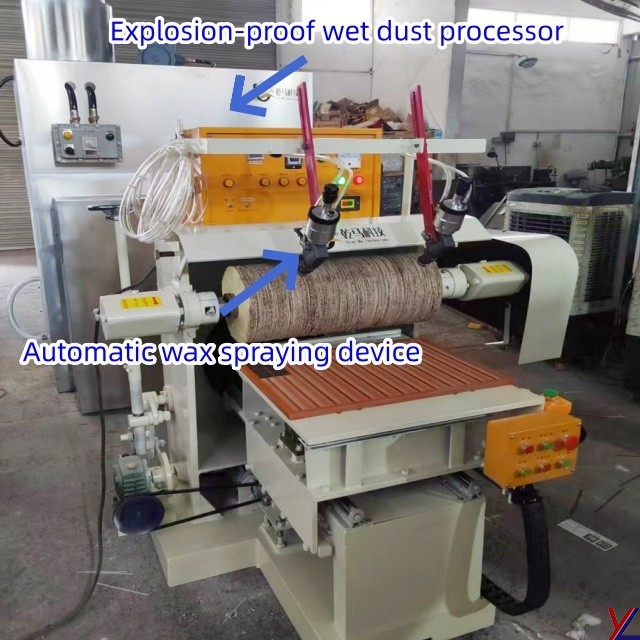

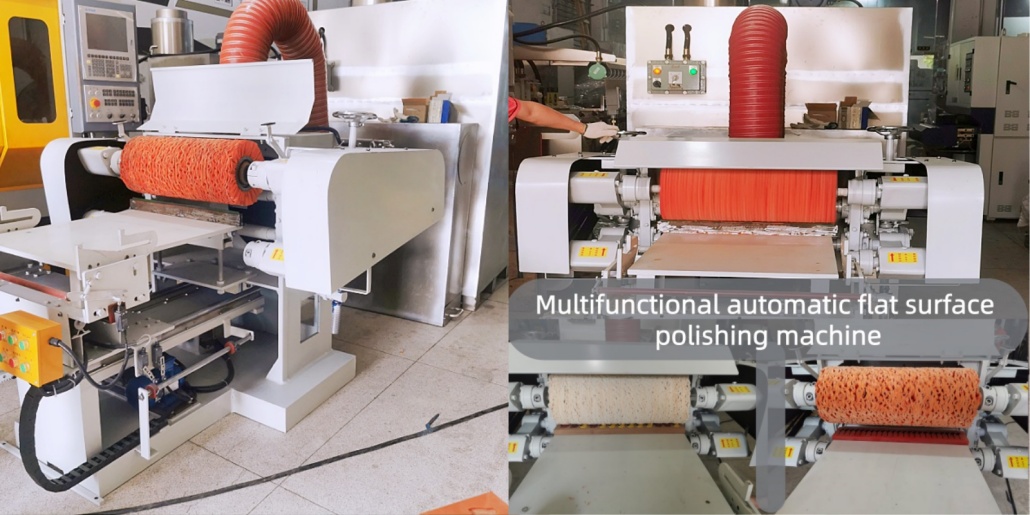

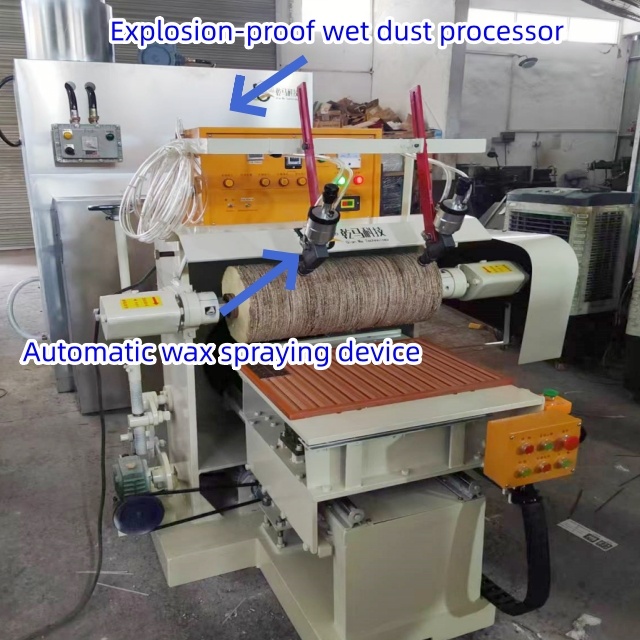

The Single-Axis Automatic Flat Polishing Machine is a mechanically operated device designed for flat surface polishing. Easy to operate, it is capable of automatically polishing and grinding the surfaces of various materials, including stainless steel, aluminum, copper, zinc alloys, titanium, plastics, and wood.
Brand :
YOL-POLISHINGProduct Name :
Single-Axis Automatic Flat Polishing MachineColor :
Green/WhiteProduct Model :
YL-ATPM-006-1custom made :
Worktables customized according to the product, such as elastic worktables, magnetic worktables, and vacuum suction worktables.Product Uses :
Used for the automatic polishing and grinding of the surfaces of various products, including metals, plastics, wood, acrylics, and more.
Product Introduction

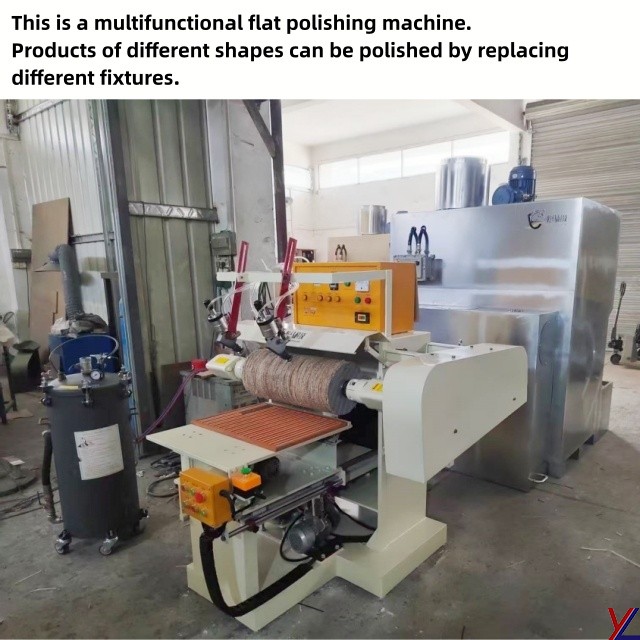

1. Single-Axis Automatic Flat Metal Polishing Machine: This machine is specifically designed for the polishing and wire-drawing of flat surfaces on a wide variety of products—including those made of metal, plastic, and wood—regardless of their shape or material composition.
2. This single-axis flat polishing machine features simple adjustments and user-friendly operation. Its components and motor utilize imported electrical parts, ensuring exceptional durability and providing an ergonomic, intuitive operating experience.
3. Our polishing equipment significantly enhances the surface finish of workpieces, thereby drastically reducing the time required for grinding and polishing processes. It offers a combination of time, energy, and labor efficiency; thanks to its simple and convenient operation, it serves as the ideal choice for polishing, grinding, deburring, and wire-drawing applications on metals, plastics, various tools, and painted surfaces.
4. Our company offers complimentary process solutions for your polishing and grinding needs. Should you encounter any workpieces requiring polishing during your product manufacturing process, please do not hesitate to contact us; we are dedicated to providing you with the most optimized solutions available.
Technical Parameters:
Roller Drive Motor:5.5KW-4*1
Horizontal Swing Motor:250W-4*1, Gearbox WPA40-20
Workbench Feed Motor: 0.55kw-4*1, Gearbox WPS60-60
Roller Opening/Closing Motor: Conical Motor 0.4kw-4*1, Gearbox WD47-30
Voltage: 380V 50Hz (Voltage adjustable)
Spindle: 1800-2200 RPM (Variable frequency speed control available)
Grinding Time: Adjustable from 0-3 minutes
Spindle Length: 600mm

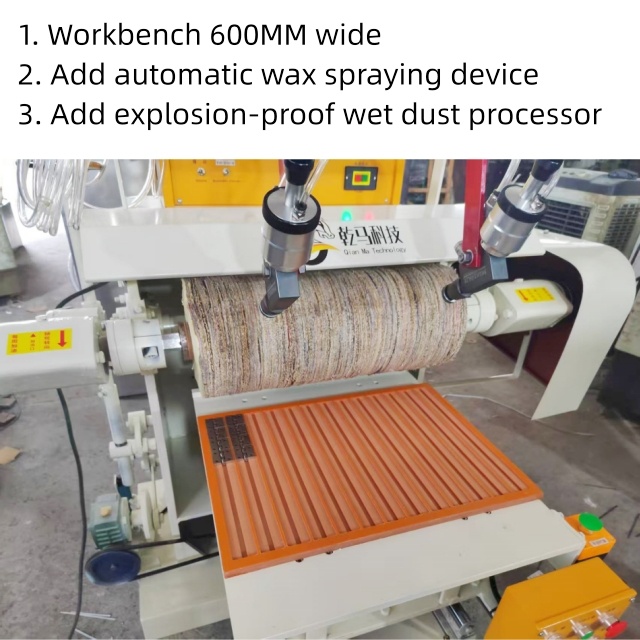

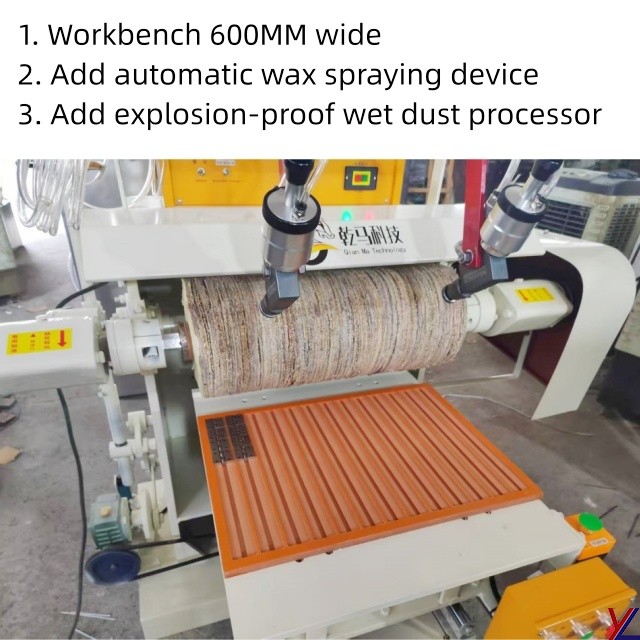

Worktable Size: 600mm (W)
Machine Dimensions: 1600*1450*1550mm (L*W*H)
Machine Weight: 1000KG
Consumables: Cloth wheels/sisal wheels/fan wheels/nylon wheels/leaf wheels/wing wheels, etc.
Consumable Diameter: 100mm-300mm
Applicable Products

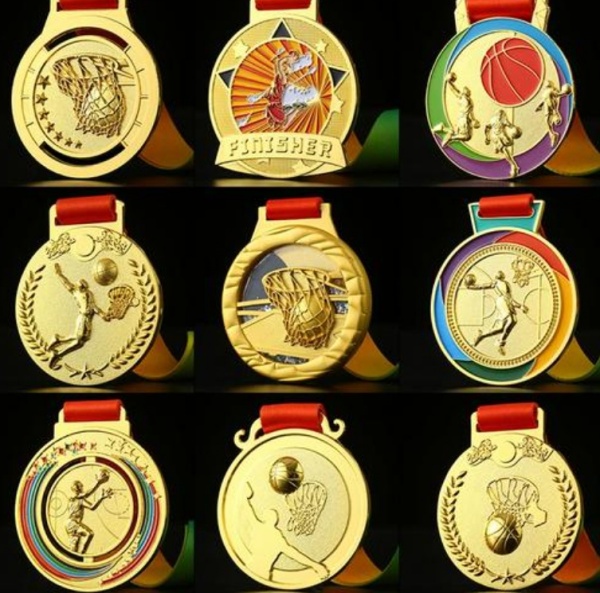

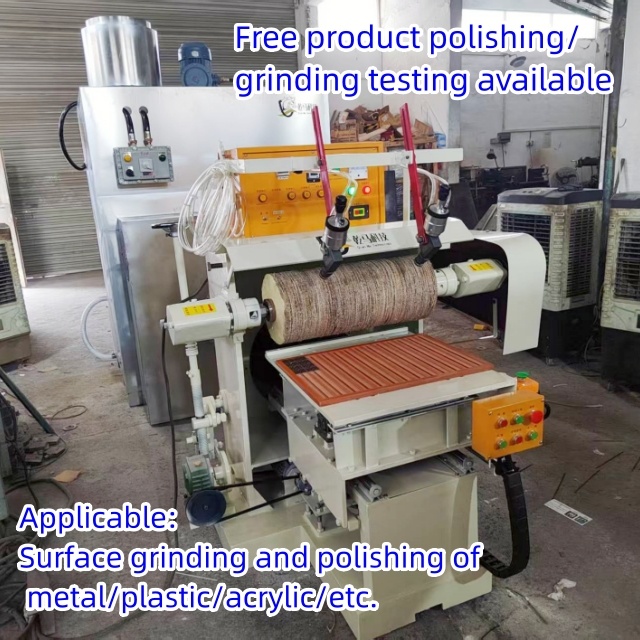

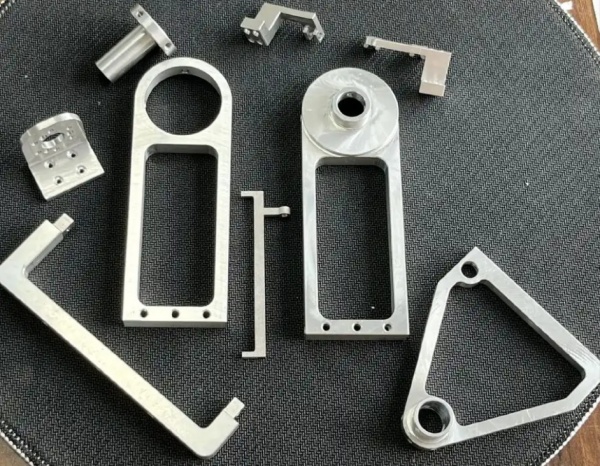

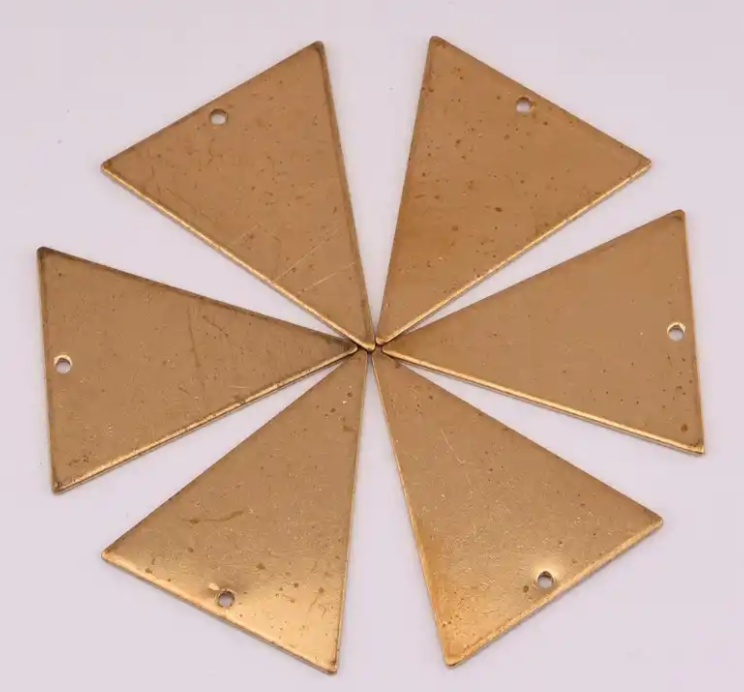

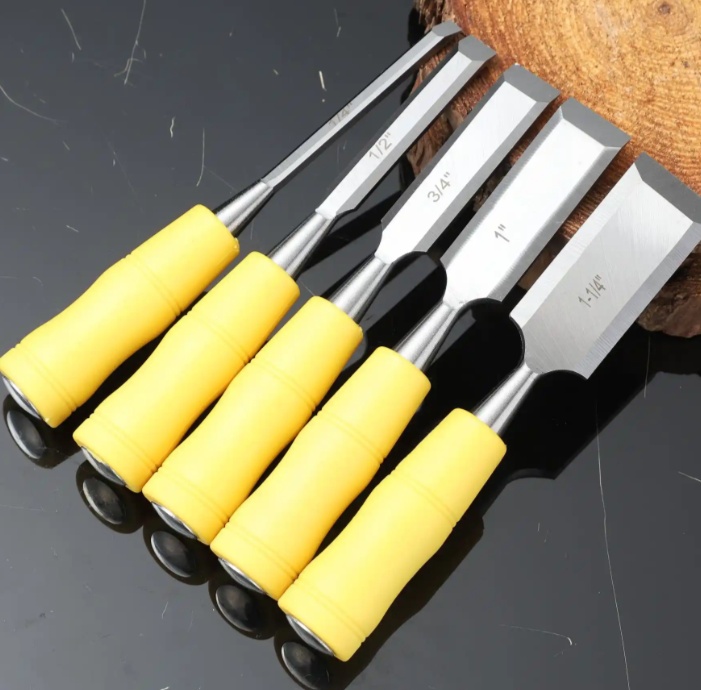

Suitable for: Surface grinding and polishing of products such as metal jewelry, luggage accessories, cutlery handles, hardware fittings, plastic components, acrylics, aluminum alloy parts, and more.
If you are unsure whether this machine is suitable for your needs, please contact us and provide the product specifications; we will design a complete grinding and polishing solution for you—free of charge.
