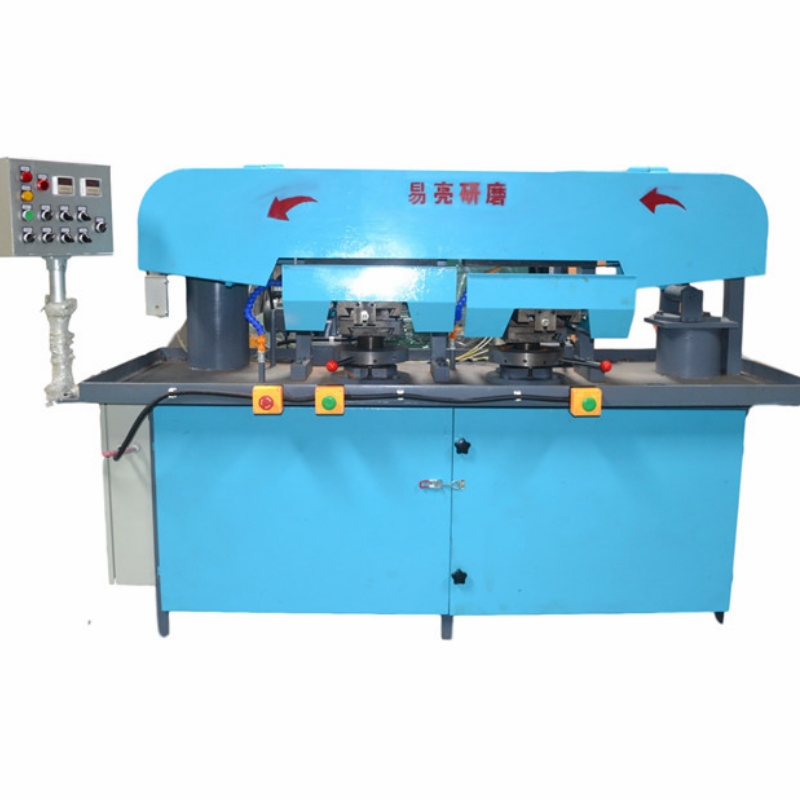

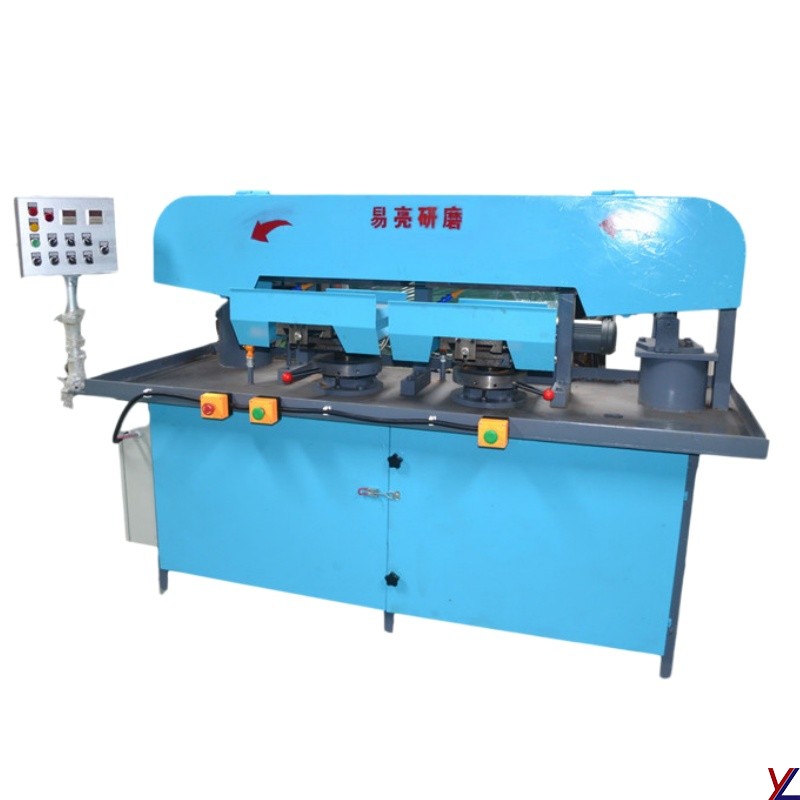

Dual-Station Wet Abrasive Belt Grinder for Precision Metal Flat Surface Finishing YL-ATPM-057
Product Name :
Dual-Station Precision Abrasive Belt Grinder (Wet Grinding)Product Model :
YL-ATPM-057custom made :
Customize workbench dimensions and fixtures based on the product.Product Uses :
Used for surface grinding, deburring, and wire drawing of metal castings and machined parts.
Metal and Plastic Deburring, Sanding, Brushing, and Wet Abrasive Belt Machine
product introduction
Machine basic parameters
Machine Name:Dual-Station Wet Abrasive Belt Grinder
| Main Motor Power: | 7.5 kW × 2 |
| Oscillation Motor: | 0.4 kW × 1 |
| Operating Voltage: | 380V, 50Hz (Voltage customizable) |
| Worktable Dimensions: |
200 mm (L) × 200 mm (W) (Customizable) |
| Sanding Belt Dimensions: |
3000 mm × 100 mm |
| Machine Dimensions: | 2500 mm × 1100 mm × 1520 mm |
| Weight: | 1000 kg |
| Wet Grinding Method: | Water circulation system |
| Operation Mode: | Once machine settings are adjusted, the machine automatically initiates the grinding process and automatically retracts upon completion. |
| Grinding Time Setting: | The grinding duration is configured based on the specific grinding requirements of the product. A single operator can manage a dual-station setup, thereby enhancing grinding efficiency. |
The workbench size of this machine can be customized to suit different products.
Machine Customization:
Typically, when utilizing this equipment, a single operator manages two to three machines simultaneously. However, if a dual-station configuration is employed, one operator is assigned to each individual machine.

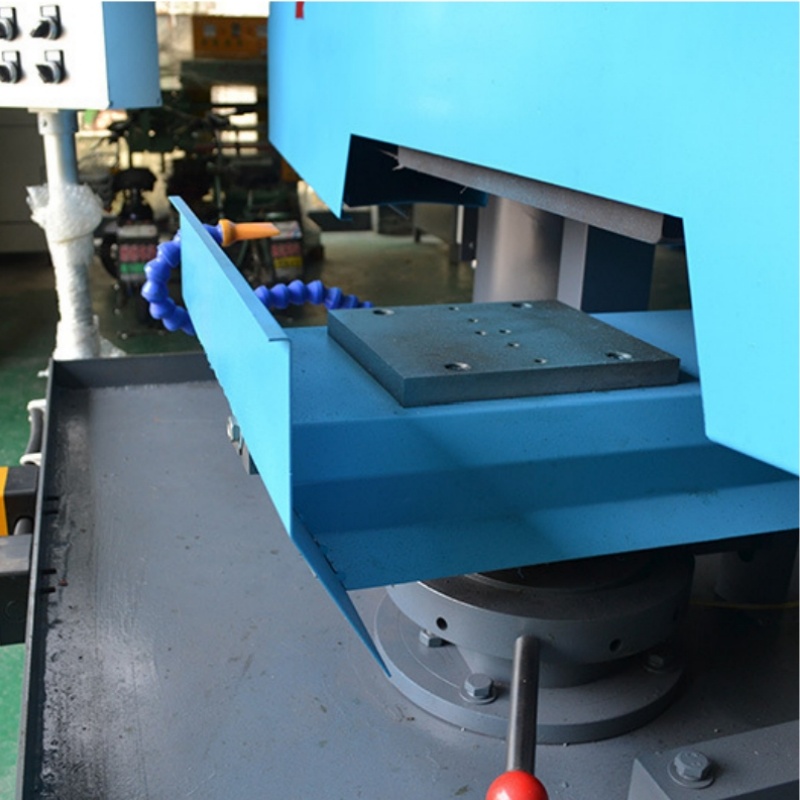

Customization: The dimensions of the workbench are customized according to the specific product requirements; the standard workbench size measures 200 mm in length by 100 mm in width. Additionally, fixtures are custom-designed to match the product's external contours and are mounted onto the workbench to facilitate the grinding process.
Product Details
Polishable products.
Refining the Product
