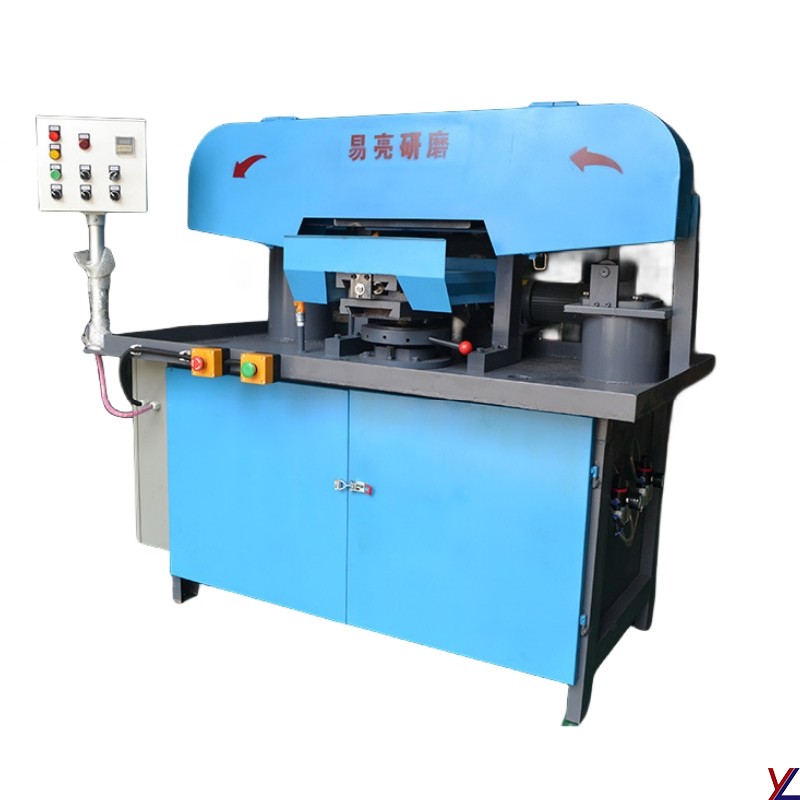

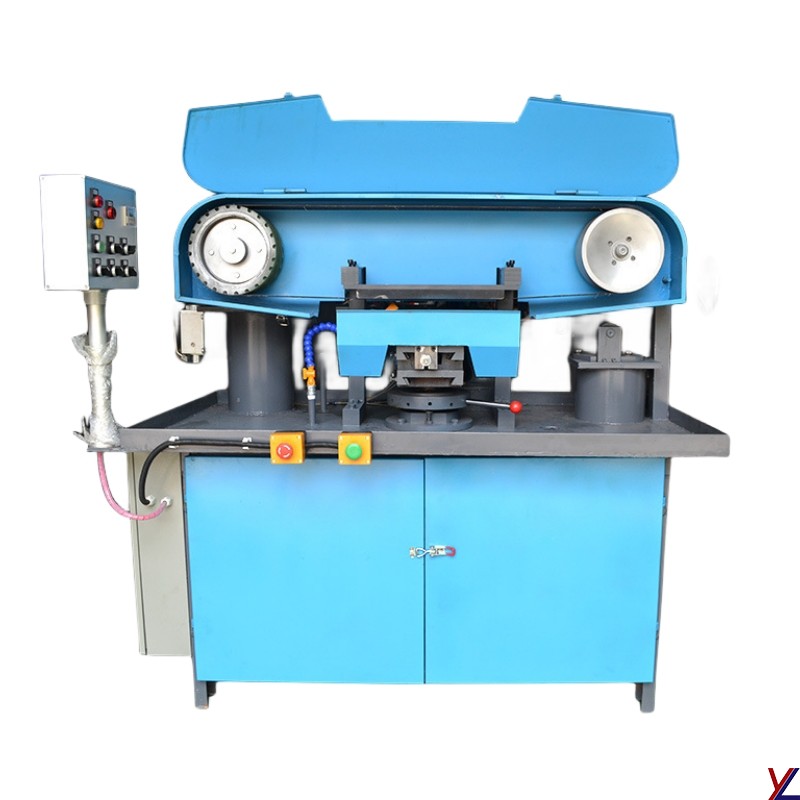

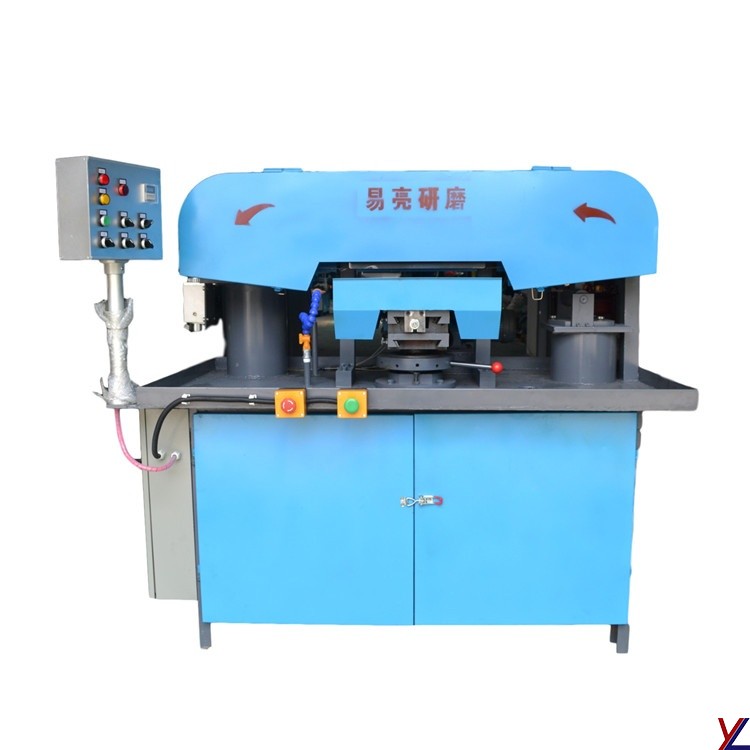

Water Sanding Belt Machine Metal Surface Grinding Polishing Machine YL-ATPM-056
Product Name :
Wet Sanding Belt GrinderProduct Model :
YL-ATPM-056custom made :
Customize workbench dimensions and fixtures based on the product.Product Uses :

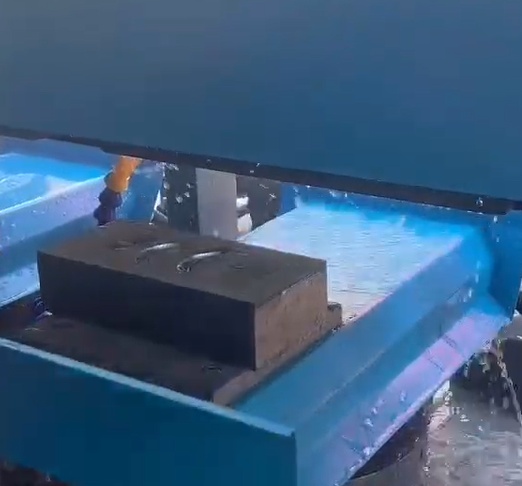

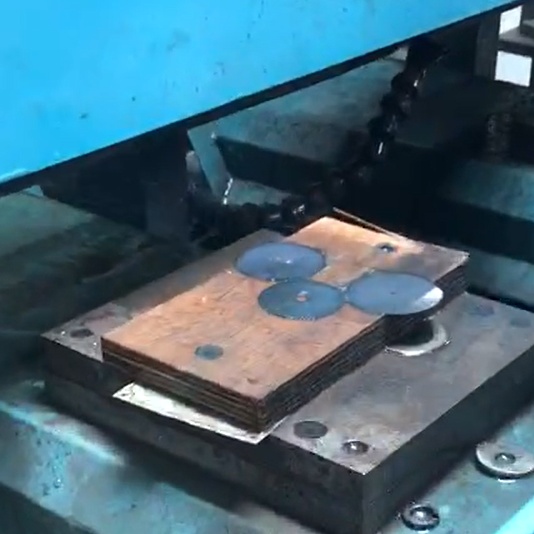

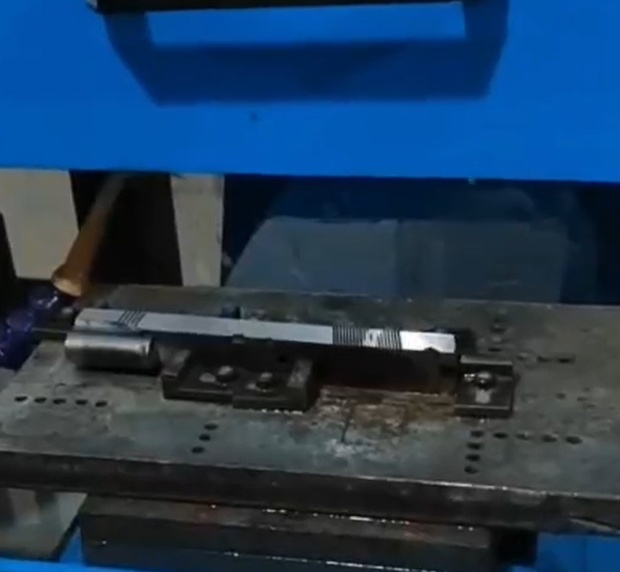

Used for surface grinding, deburring, and wire drawing of metal castings and machined parts.

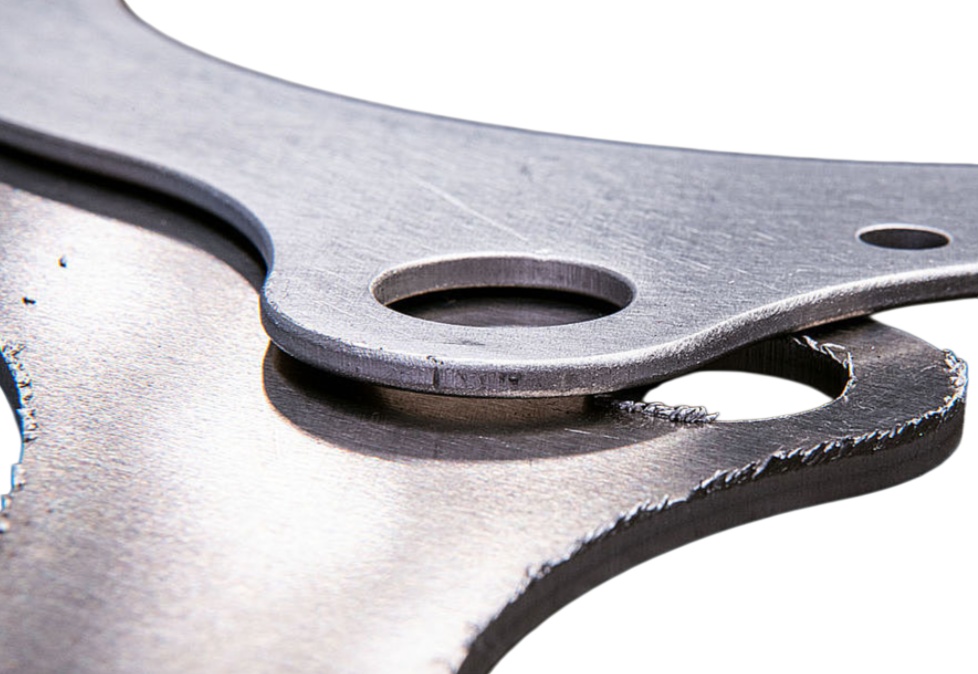

Metal and Plastic Deburring, Sanding, Brushing, and Wet Abrasive Belt Machine
product introduction
Machine basic parameters

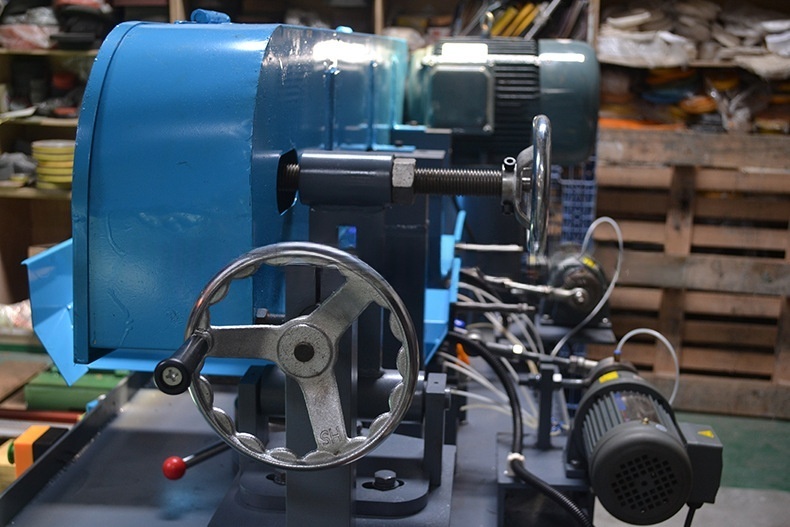

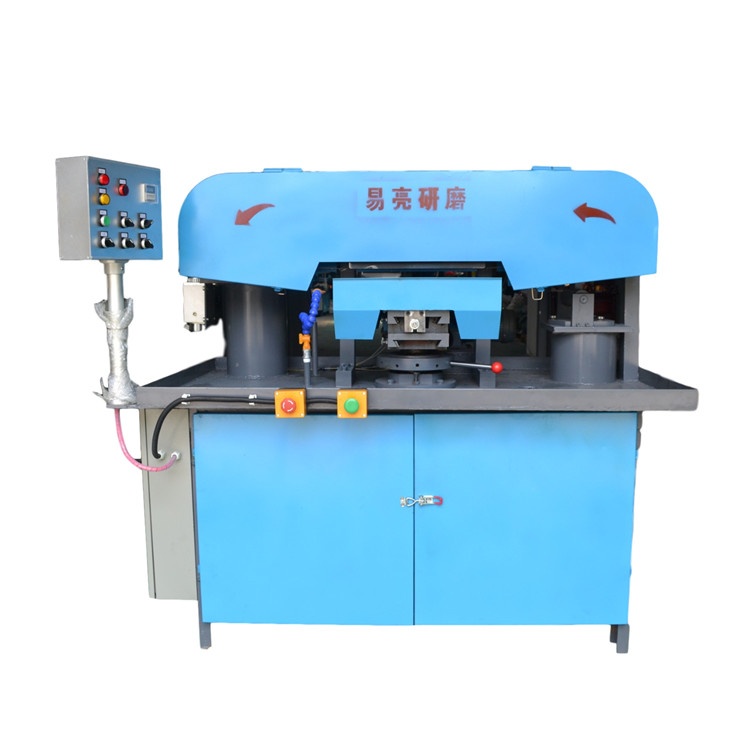

Machine Name:Wet Belt Sander
| Main Motor Power: | 7.5 kW × 1 |
| Oscillation Motor: | 0.4 kW × 1 |
| Operating Voltage: | 380V, 50Hz (Voltage customizable) |
| Worktable Dimensions: |
200 mm (L) × 200 mm (W) (Customizable) |
| Sanding Belt Dimensions: |
3000 mm × 100 mm |
| Machine Dimensions: | 1800 mm × 1100 mm × 1500 mm |
| Weight: | 550 kg |
| Wet Grinding Method: | Water circulation system |
| Operation Mode: | Once machine settings are adjusted, the machine automatically initiates the grinding process and automatically retracts upon completion. |
| Grinding Time Setting: | Grinding duration is set according to the specific sanding requirements of the product. |
The workbench size of this machine can be customized to suit different products.
Machine Customization:
Typically, when utilizing this equipment, a single operator manages two to three machines simultaneously. However, if a dual-station configuration is employed, one operator is assigned to each individual machine.

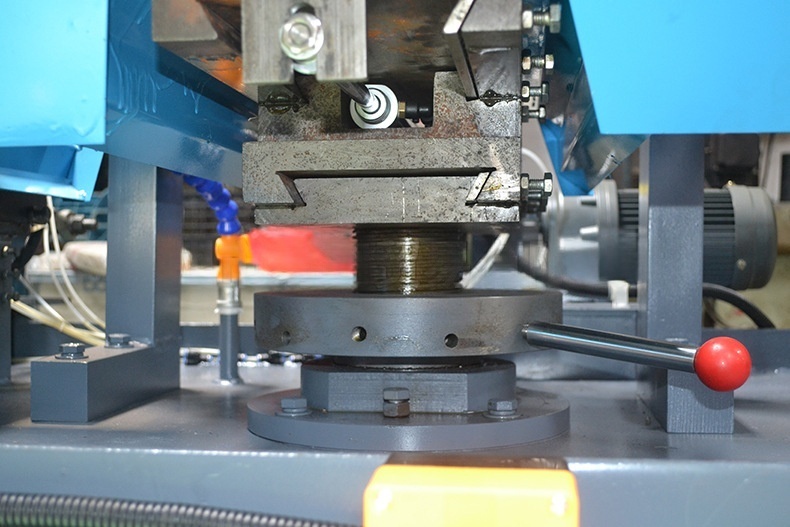

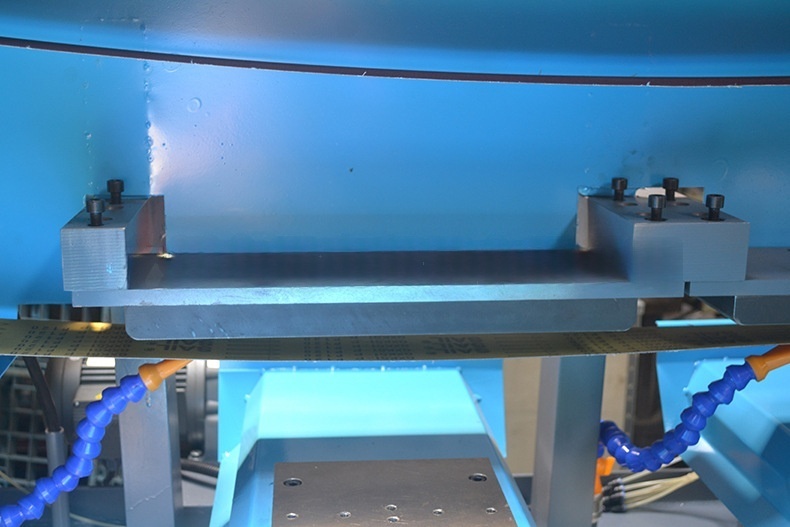

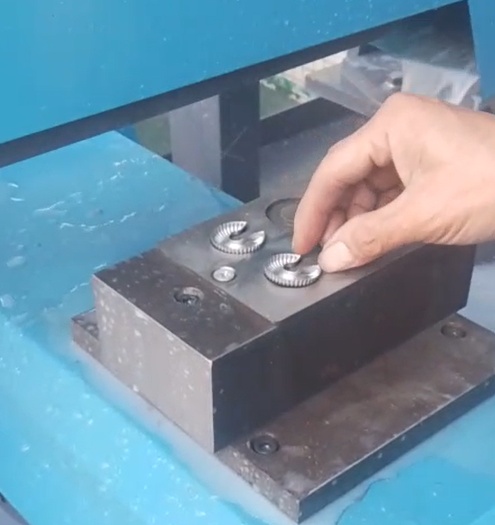

Customization: The dimensions of the workbench are customized according to the specific product requirements; the standard workbench size measures 200 mm in length by 100 mm in width. Additionally, fixtures are custom-designed to match the product's external contours and are mounted onto the workbench to facilitate the grinding process.

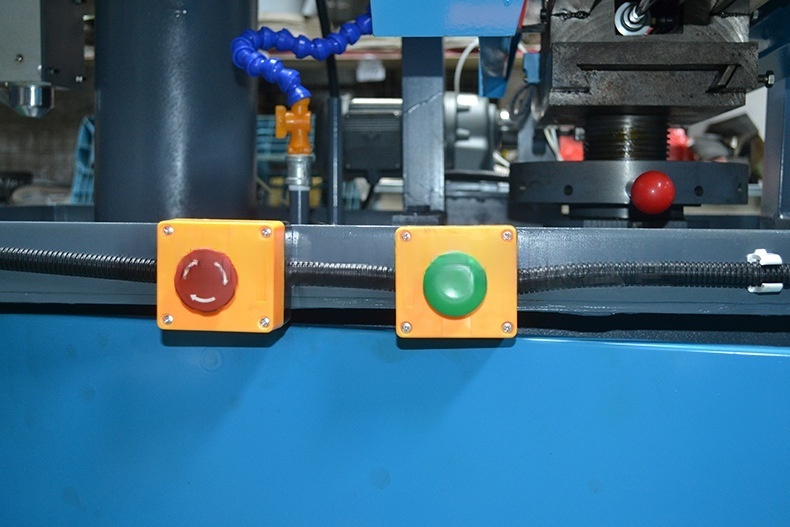

Product Details

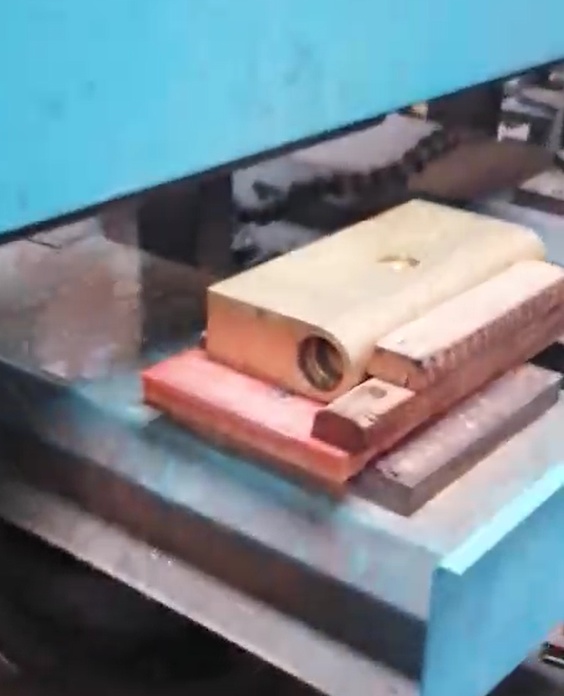

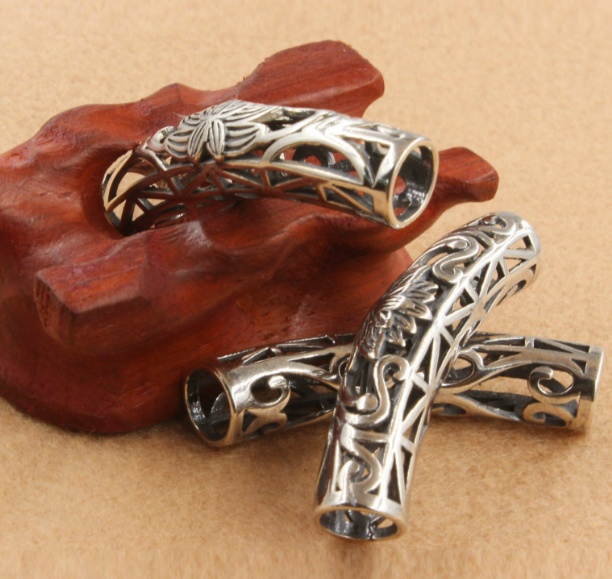

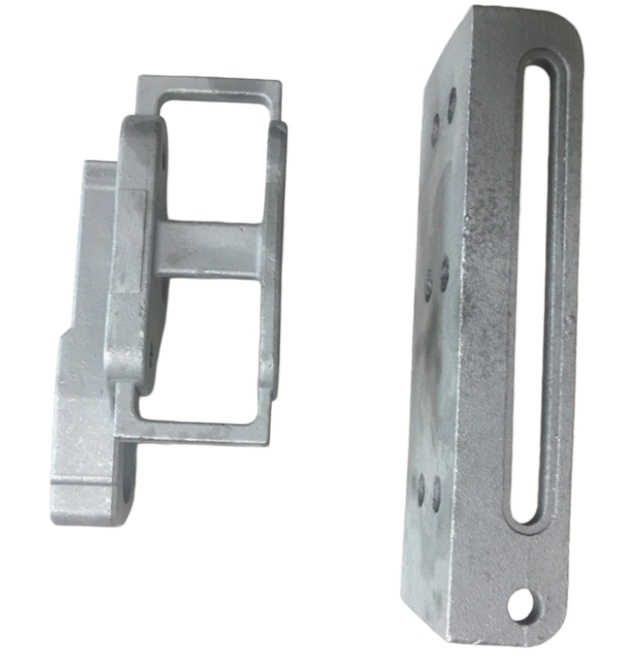

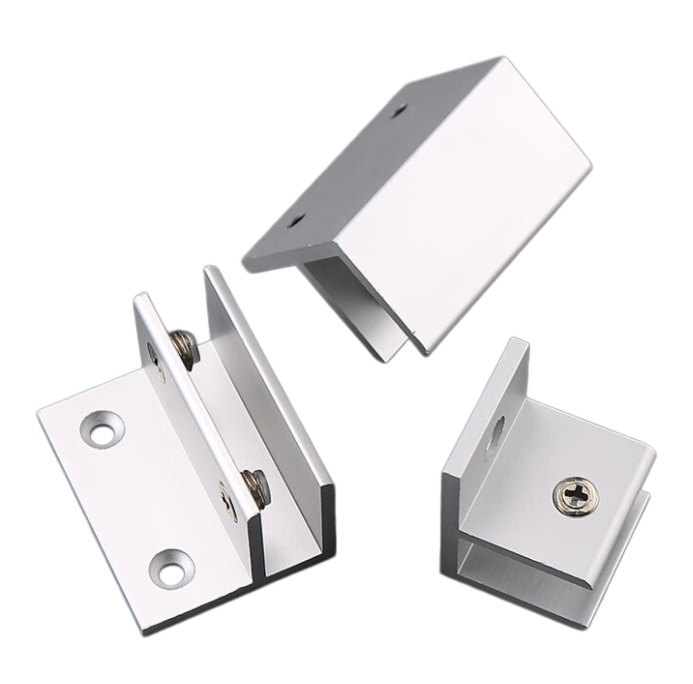

Polishable products.
Refining the Product
Your Success, Our Export Mission
Over 1,000 clients across various industries worldwide trust us.
Quality Knows No Borders – Your Global Supply Chain Partner
This automatic disc-type 3-head grinding machine is suitable for automatic mirror polishing of the surface of products such as watches, clocks, electronic parts, metal accessories for bags, hardware and bathroom accessories, and 3C product accessories.
Details
Used for mirror polishing of flat products with high mirror finish requirements, the worktable can be freely rotated in both directions under the high-speed rotating polishing wheel, so that the polished texture of the product is very fine and achieves a high mirror finish effect.
Details
This 5-axis automatic polishing machine utilizes a CNC programming system capable of storing multiple polishing programs for various parts. Once configured, these programs can be recalled and executed repeatedly. It is designed for the automatic surface polishing and grinding of products such as medical devices, 3C accessories, electronic goods, and hardware components.
Details
The Single-Axis Automatic Flat Polishing Machine is a mechanically operated device designed for flat surface polishing. Easy to operate, it is capable of automatically polishing and grinding the surfaces of various materials, including stainless steel, aluminum, copper, zinc alloys, titanium, plastics, and wood.
Details
This automatic rotary-disc four-head polishing machine is suitable for the automated mirror-finish polishing of the surfaces of various products, including watches, clocks, electronic components, hardware accessories for luggage and sanitary ware, and accessories for 3C products.
Details

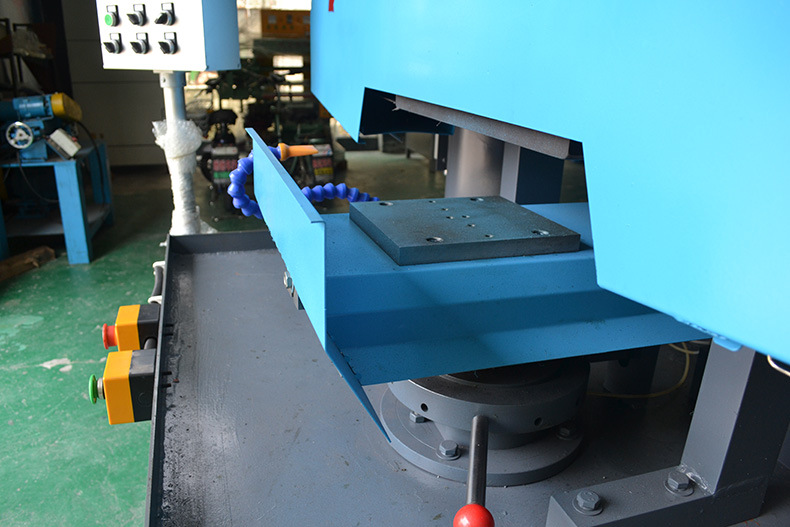

The YL-ATPM-056 Single-Station Professional Wet Abrasive Belt Grinder is equipped with a 3 kW motor operating at 2850 rpm. It features an abrasive belt size of 100 x 3000 mm and a worktable measuring 400 x 100 mm. Utilizing a water-circulation dust removal system, this machine is suitable for the grinding, polishing, and deburring of metal surfaces.
Details

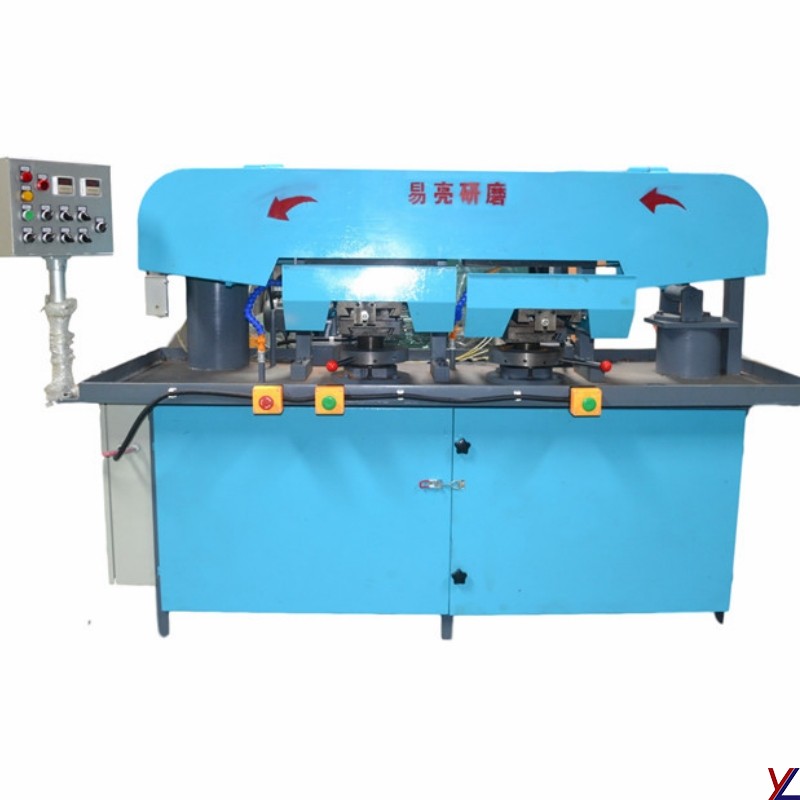

Professional Dual-Station Precision Metal Wet Belt Grinding Machine (Model YL-ATPM-057). Equipped with two 7.5 kW motors, operating at a speed of 2850 rpm. Features a sanding belt size of 100 x 4000 mm and a worktable measuring 400 x 130 mm. Incorporating a water-circulation dust removal system, this machine is suitable for the grinding, polishing, and deburring of metal surfaces.
Details
YL-SR-R1000 is a professional-grade automated polishing machine designed specifically for the surface finishing of metal workpieces. It is ideally suited for mirror-finish polishing applications involving products such as bathroom fixtures, cutlery, furniture fittings, and musical instruments.
