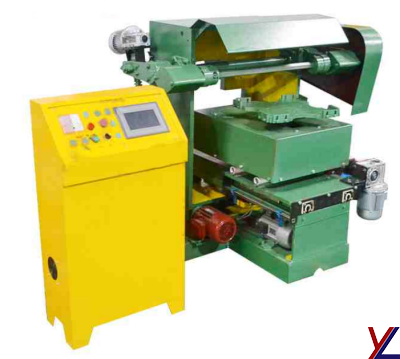

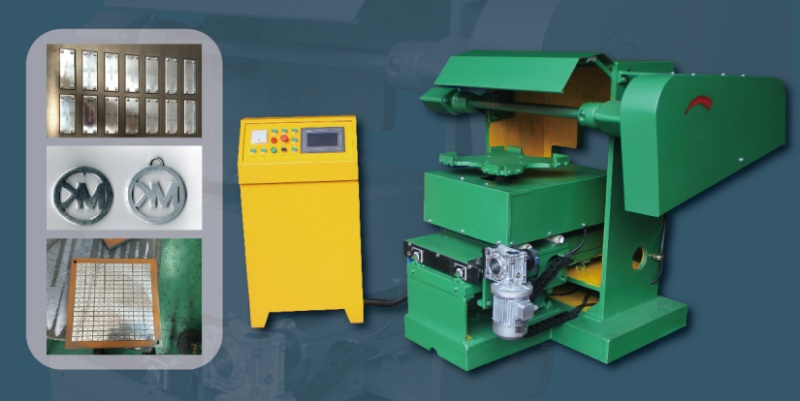

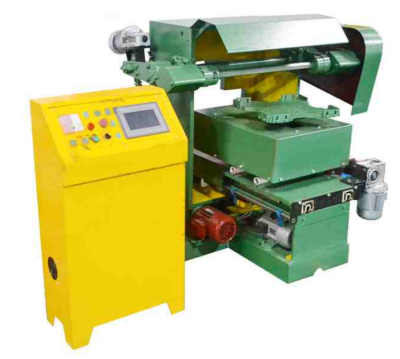

Rotary table high mirror finish automatic polishing machine YL-ATPM-051

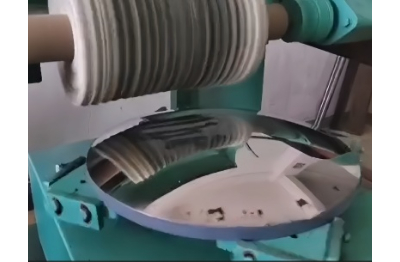

Used for mirror polishing of flat products with high mirror finish requirements, the worktable can be freely rotated in both directions under the high-speed rotating polishing wheel, so that the polished texture of the product is very fine and achieves a high mirror finish effect.
Product Name :
Single-axis rotary automatic polishing machineProduct Model :
YL-ATPM-051custom made :
Workbenches of different sizes can be customized according to the product.Product Uses :
Used for sanding and polishing metal products.
Rotary table high mirror finish automatic polishing machineYL-ATPM-051
Product Introduction
1. Applications: Polishing of hardware accessories for bags, buttons, mushroom-shaped rivets, copper rivets, etc.
2. Polishing Materials: Nylon wheels, sisal wheels, cloth wheels, and blower wheels.
3. Features: Versatile function, suitable for multiple uses; includes 360-degree rotating polishing, 180-degree polishing, 90-degree polishing, 45-degree polishing, 0-degree polishing, and wire drawing functions. Utilizes a computer program module system, making operation simple, performance stable, high output, and high quality.
Machine Basic Parameters
| Main motor: | 7.5kw-4*1 |
| Horizontal swing motor: | 0.35KW |
| Forward and backward motor: | 0.55KW |
| Pressure motor: | 0.4KW |
| Rotation motor: | 1.5KW |
| Polishing worktable size: | 400mm (L) * 400mm (W) |
| Machine size: | 1400mm (L) * 1500mm (W) * 1200mm (H) |
| Weight: | 1130KG |
Machine Key Benefits
Machine Name: Single-axis rotary automatic polishing machine
Versatile Application
High production efficiency
Customization
Time-saving

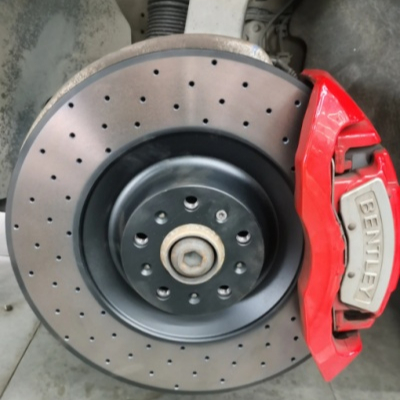

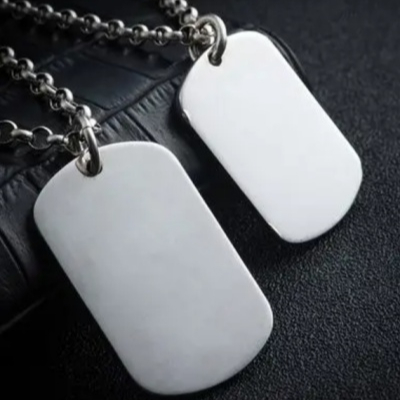

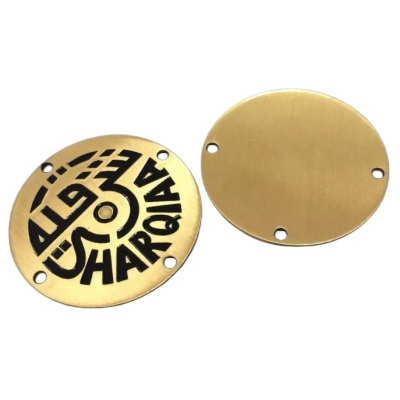

Polishable Products
Polishing chuck clamping diagram
The standard size of the rotary table is 400*400. Products of different sizes can be clamped using fixtures, and multiple small products can be polished at once.
When the product requirement exceeds the workbench size, we need to customize a larger workbench based on the product specifications.

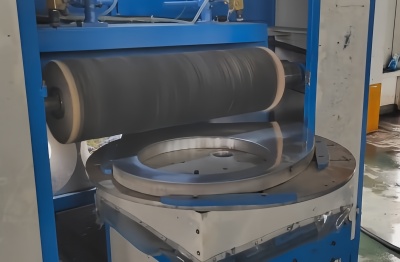

The image shows a 1000mm diameter workbench, used for a valve on a special container. It's made of a large stainless steel plate and weighs approximately 200kg.
If you've read this far, you're definitely interested in this machine. If you'd like to learn more or if there are other machines that can help you, please contact me. We will provide you with professional advice and service.
Your Success, Our Export Mission
Over 1,000 clients across various industries worldwide trust us.
Quality Knows No Borders – Your Global Supply Chain Partner
This automatic disc-type 3-head grinding machine is suitable for automatic mirror polishing of the surface of products such as watches, clocks, electronic parts, metal accessories for bags, hardware and bathroom accessories, and 3C product accessories.
Details
Used for mirror polishing of flat products with high mirror finish requirements, the worktable can be freely rotated in both directions under the high-speed rotating polishing wheel, so that the polished texture of the product is very fine and achieves a high mirror finish effect.
Details
This 5-axis automatic polishing machine utilizes a CNC programming system capable of storing multiple polishing programs for various parts. Once configured, these programs can be recalled and executed repeatedly. It is designed for the automatic surface polishing and grinding of products such as medical devices, 3C accessories, electronic goods, and hardware components.
Details

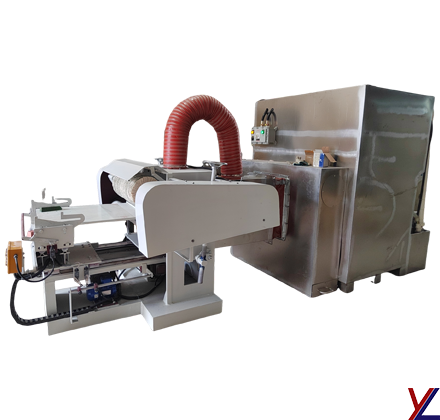

The Single-Axis Automatic Flat Polishing Machine is a mechanically operated device designed for flat surface polishing. Easy to operate, it is capable of automatically polishing and grinding the surfaces of various materials, including stainless steel, aluminum, copper, zinc alloys, titanium, plastics, and wood.
