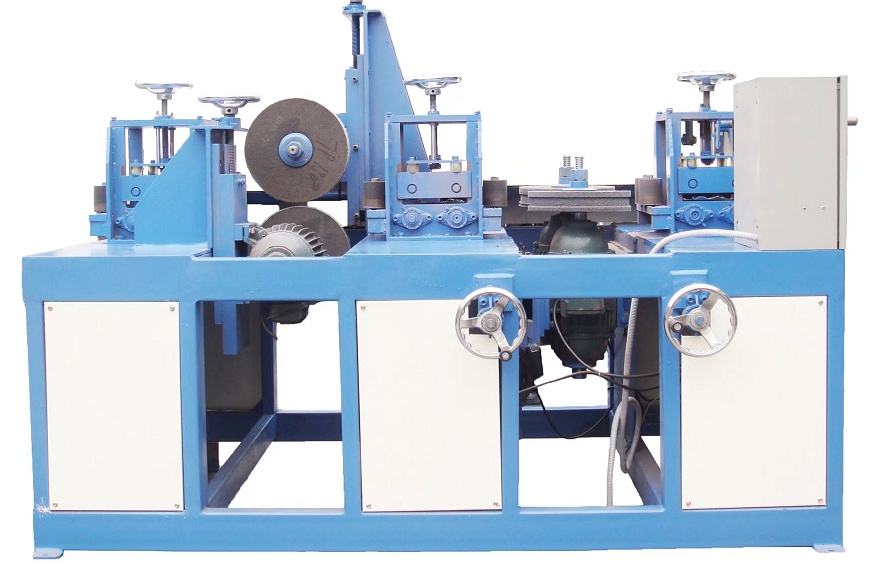

Conveyor-type Square Tube Grinding Machine YL-APM-077-4
Designed for surface grinding of various types of square tubing.
Product Name :
Automatic Square Tube Sanding MachineProduct Model :
YL-APM-077-4custom made :
Various square tube grinding and polishing machines can be customized based on specific tube dimensions, materials, and processing requirements.Product Uses :

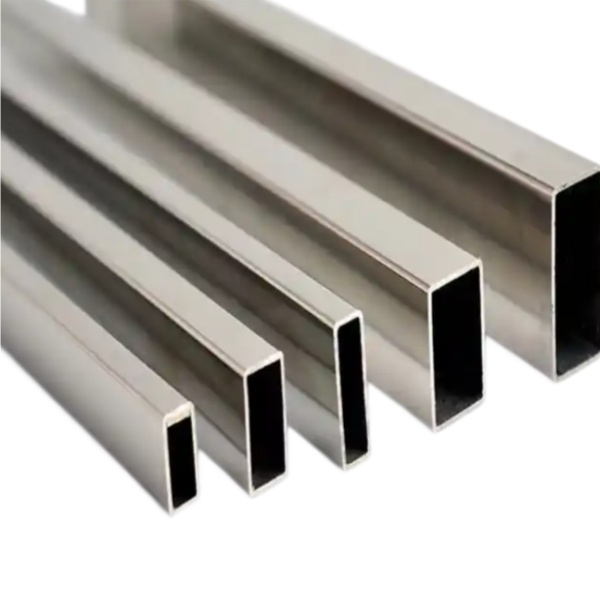

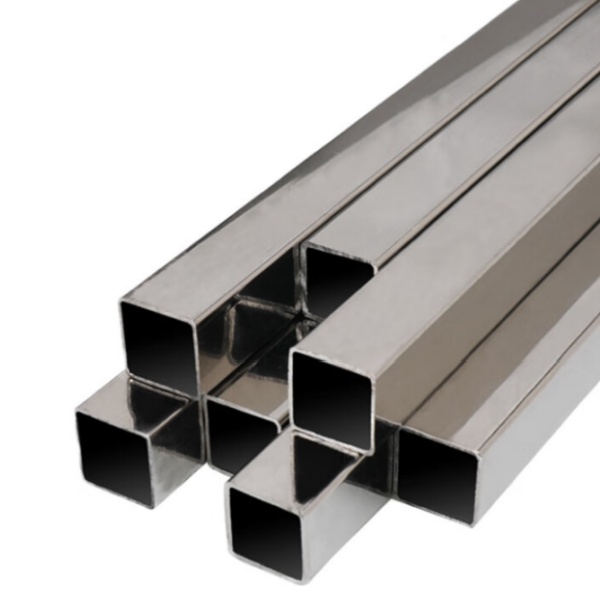

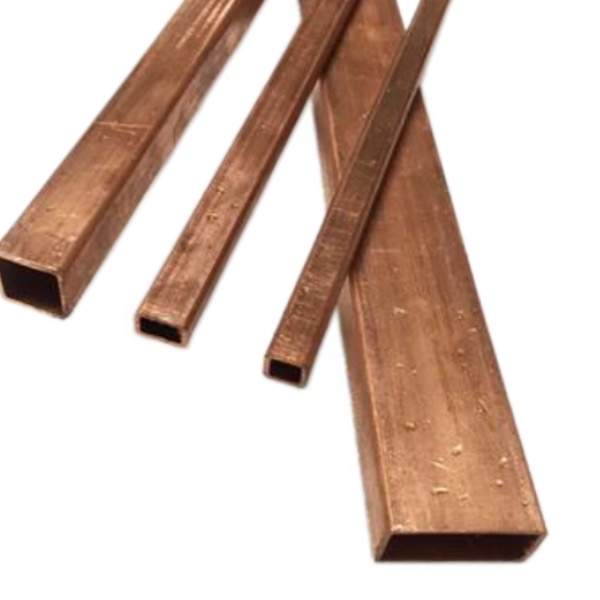

Used for the surface grinding and polishing of square tubes made of metal (stainless steel, copper, aluminum, zinc, etc.)
Conveyor-type Square Tube Grinding MachineYL-APM-077-4
1. Application Areas: Suitable for the surface polishing and grinding of square tubing made from materials such as stainless steel and aluminum alloy.
2. Functional Features:This four-station grinding and polishing machine is equipped with four sets of grinding heads (corresponding to four distinct processing stages), designed to grind all four faces of a square tube simultaneously. Each processing stage utilizes a set of four grinding heads—positioned at the top, bottom, left, and right—to address the respective surfaces. For every additional processing stage added, a corresponding set of four grinding heads is incorporated into the system.
3. Polishing Wheels: The machine is compatible with a wide variety of grinding and polishing wheels, including sisal wheels, cloth wheels, abrasive cloth wheels, nylon wheels, flap wheels, and others.
Optional add-ons, such as an automatic wax spraying system and a dust collection unit, can be freely integrated into the configuration.
4. Operation Instructions: The machine offers simple and user-friendly operation. Once the positions of the individual grinding heads have been set during the initial configuration, a single operator is all that is required to manage the continuous loading and unloading of workpieces. With its straightforward operation and streamlined structure, the equipment requires only one attendant to oversee fully automated grinding processes, making it a highly cost-effective automated polishing solution.
5. Configuration:Equipped with an automatic loading and unloading rack, enabling fully automated operation.
product introduction

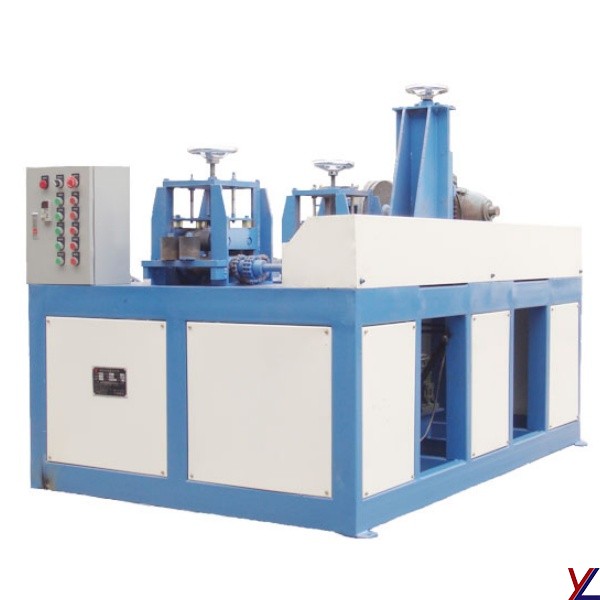

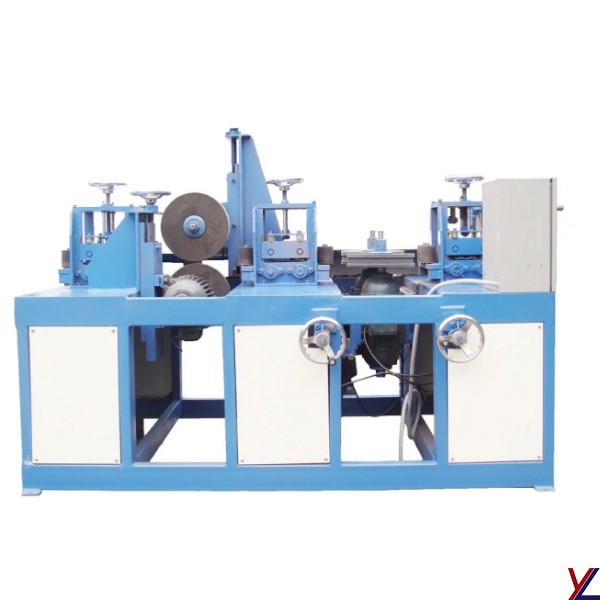

The image depicts a configuration consisting of one processing stage with four polishing heads (top, bottom, left, and right).
Customization: Additional polishing heads can be added to accommodate specific polishing processes; for each additional processing stage, four corresponding polishing heads are added
Machine basic parameters
Machine Name: Conveyor-type Square Tube Grinding Machine
| Main Motors: | 4 kW, 2-pole (4 units) |
| Chuck motor: | 2.2 kW + RV (1 unit) |
| Grinding Wheel Speed: | 2880 rpm |
| Grinding Wheel Specifications: | 300 × 100 × 25 mm (Outer Diameter × Thickness × Bore Diameter) |
| Compatible Abrasives: | Sisal wheels, flap wheels, cloth wheels, nylon abrasive wheels, and other consumables |
| Feeding Speed: | 1–5 m/min (Variable Frequency Adjustable) |
| Polishing wheel speed: |
Right wheel (first wheel): 2100 rpm, coarse polishing Middle wheel (second wheel): 2100 rpm, coarse polishing Middle wheel (third wheel): 2800 rpm, fine polishing Left wheel (fourth wheel): 2800 rpm, fine polishing |
| Processing Range: | 20–100 × 20–100 × 600–6000 mm (Width × Height × Length) |
| Power Supply: | 380 V, 50 Hz |
| Overall Dimensions: | 1800 × 1600 × 1400 mm |
| Weight: | 1600 kg |
| Features: | Suitable for the one-pass surface treatment of stainless steel and non-ferrous metal square tubes—specifically wire drawing, sanding, and polishing—on all four sides simultaneously. This machine utilizes a dual-row pressure roller conveyor system. |
The machine can be configured with different polishing heads according to different products.

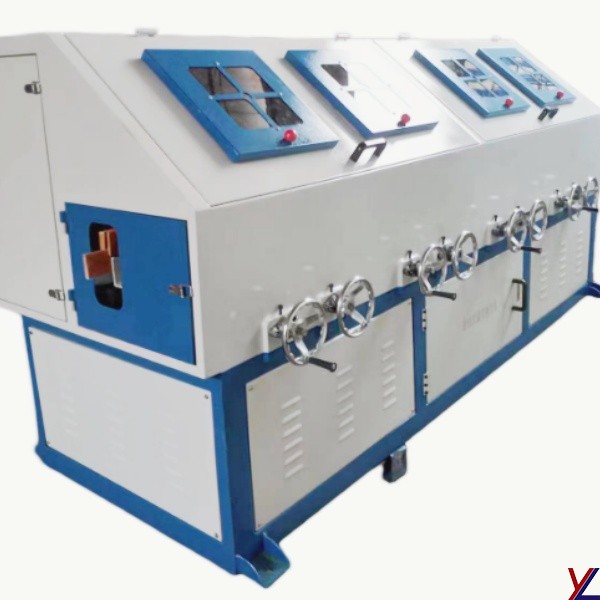

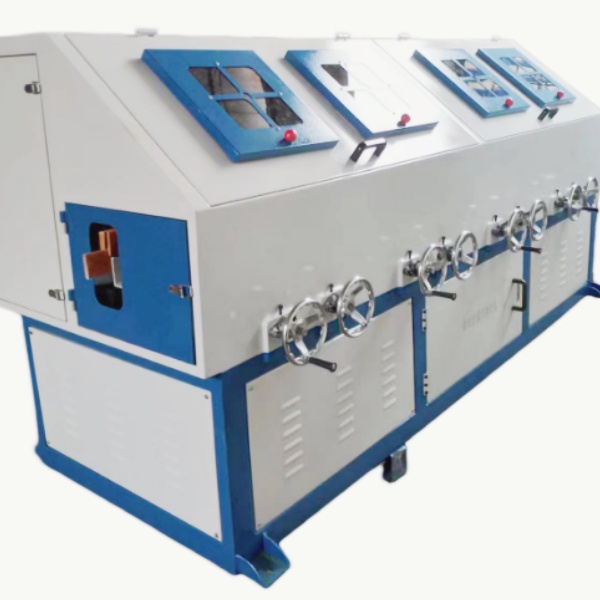

1. The accompanying image illustrates the product's appearance when fitted with its protective enclosure. Since the grinding process generates a significant amount of dust, the enclosure—in conjunction with an exhaust port—allows the dust to be extracted and channeled into a dust collection system for proper disposal.
2. If the machine is utilized for surface polishing using cloth wheels, an optional automatic waxing system—capable of applying either spray wax or solid wax—can be added. This feature eliminates the need for manual waxing, thereby saving labor costs.
3. By incorporating an automatic loading and unloading rack, the system can achieve fully automated operation—encompassing automatic product loading, automated grinding and conveying, and automatic product unloading.
Machine Customization:
Typically, we customize multiple sets of grinding heads based on the product's manufacturing process, enabling the product to achieve the desired sanding finish in a single pass.
Polishable products.
Customization: Various square tube grinding and polishing machines can be customized based on specific tube dimensions, materials, and processing requirements.
