The YL-PM-004 Single-Head Horizontal Polishing Machine is a revolutionary device designed specifically for the cutlery manufacturing industry. This industrial-grade machine is capable of efficiently polishing the inner curves of knife and fork handles (specifically the fork tines/slots), as well as the outer curves along the sides of forks and spoons—critical "R-angle junction areas" that, in the past, could typically only be finished through manual labor.
Brand :
YOL-POLISHINGProduct Name :
Single-Head Horizontal Polishing MachineYL-ATPM-004Color :
Green/WhiteProduct Model :
YL-ATPM-004custom made :
Different adjustable curvature size ranges can be customized according to the product.Product Uses :
Used for grinding and polishing the necks of spoons, as well as for the lateral polishing of the concave curved surfaces of certain metal products.Product Introduction

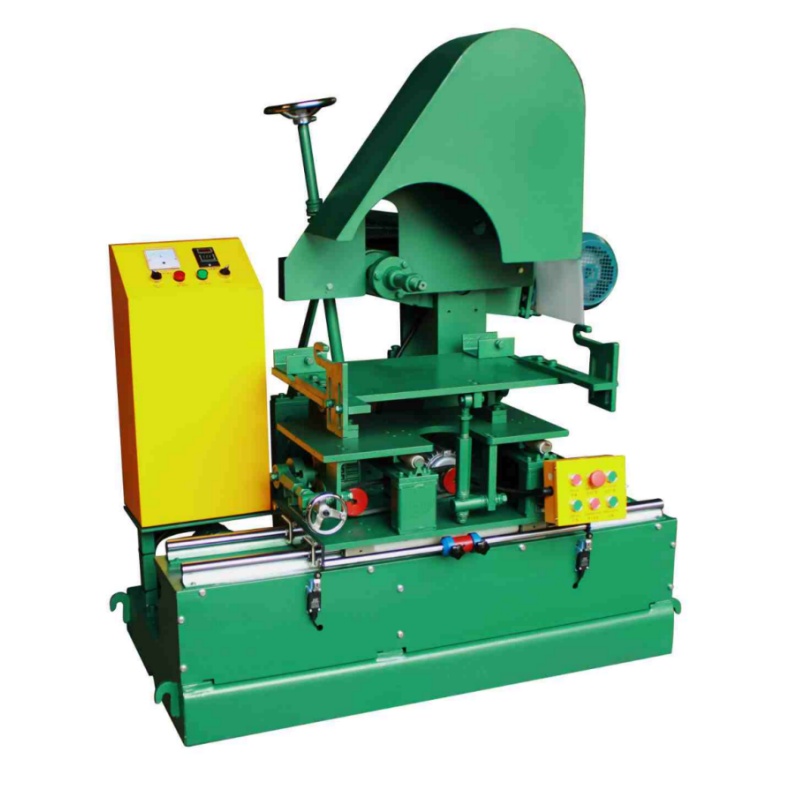

1. The YL-PM-004 features a robust and durable green main frame structure, complemented by a distinct bright yellow independent electrical control cabinet. It seamlessly integrates sturdy industrial-grade construction with precision adjustment handwheels, ensuring reliable operation and consistently stable performance. Its sliding feed guide rail system is designed to facilitate the smooth conveyance and processing of workpieces along the production line.
2. This equipment fundamentally transforms the cutlery polishing process—shifting it from a labor-intensive manual task to a highly efficient and fluid mechanized workflow. By enabling assembly-line production, it not only significantly boosts output capacity but also guarantees that every single product achieves a superior and highly uniform polishing quality.
3. The YL-PM-004 boasts simple and intuitive adjustment capabilities; operators can quickly configure the machine to accommodate workpieces of varying specifications, thereby minimizing downtime during production batch changeovers. It serves as an ideal edge-polishing solution for fork and spoon production lines, providing a professional-grade, high-quality foundation for the final precision polishing stage.
Technical Parameters:
Roller Drive Motor: 4 kW, 4-pole × 1
Lateral Oscillation Motor: 370 W, 4-pole × 1
Worktable Feed Motor: 0.55 kW, 4-pole × 1
Roller Opening/Closing Motor: Conical Motor, 0.4 kW, 4-pole × 1
Voltage: 380 V, 50 Hz (Adjustable)
Spindle Speed: 1800–2200 RPM (Supports Variable Frequency Speed Control)
Grinding Time: 0–3 minutes (Adjustable)
Overall Dimensions: 1500 × 1200 × 1600 mm (L × W × H)
Machine Weight: 800 kg
Consumable Types: Cloth wheels, sisal wheels, ventilated wheels, nylon wheels, flap wheels, wing wheels, etc.
Consumable Diameter: 250–300 mm
Applicable Products
Suitable for door hinges, spoon handles, spoon necks, the sides of dinner knives, forks, concave curved surfaces of metal products, and similar items.
Case
Door hinges are polished and ground.
1. Door hinges are flat products. During grinding, a grinding wheel with polishing abrasive is used, followed by a cloth polishing wheel. For a brushed finish, a nylon wheel is used.
2. This machine, in conjunction with fixtures, can be used throughout the production line to perform various processes such as polishing, grinding, and brushing.
3. If you have needs for door hinge polishing and grinding, please contact me to discuss specific solutions.
Polishing of stainless steel tableware (spoons, forks, knives).
1. For stainless steel spoons with curved surfaces, a small curved grinder can be used to polish the concave areas to remove stretch marks from the stamping process.
2. This machine is specifically designed for grinding and polishing spoons and small curved surfaces throughout the tableware production line.
3. If you have any needs for polishing and grinding stainless steel or iron tableware, please contact me to discuss specific solutions.
--
Engineer training.
Based on customer needs, we provide on-site training at their factories. Our training methods include:
1. Remote video training: Before shipment, we will film usage videos and user manuals using the customer's machines, products, and consumables.
2. Customers send personnel to their factories to learn how to use the machines.
3. We send engineers to the customer's factories to train their employees on how to use the machines.
--
