Single-Axis Flat Metal Product Inner Curve Polishing Machine YL-ATPM-001
This is a simple and easy-to-operate automatic metal product polishing machine with an inner arc shape. The worktable and polishing arc can be customized to suit different products, and the size of the polishing arc can also be adjusted.
The main adjustment mechanism of this machine is its mechanism; however, customized programming can also be used to adjust the polishing arc.
Brand :
YOL-POLISHINGProduct Name :
Single-axis arc surface polishing machineColor :
Green/WhiteProduct Model :
YL-ATPM-001custom made :
Different adjustable curvature size ranges can be customized according to the product.Product Uses :
Used for grinding and polishing the concave areas and necks of spoons, as well as the inner curved areas of some metal products.Product Introduction
1. Single-Axis Flat Metal Product Inner Curve Polishing MachineThis machine is used for polishing and brushing the inner curved surfaces of various metal materials with different shapes.
2. Single-Axis Flat Metal Product Inner Curve Polishing Machine is easy to adjust and operate. The accessories and motor use imported electrical components, making the machine durable and user-friendly.
3. Our polishing equipment can improve the surface finish of workpieces, saving grinding and polishing time. It saves time, electricity, and labor. Simple and easy to operate, it is an ideal choice for polishing, grinding, deburring, and brushing metals, plastics, tools, and painted surfaces.
4. Our company can provide you with free polishing and grinding product solutions. When you encounter products that need polishing, please contact us, and we will provide you with the best solution.
Technical Parameters:
Roller Drive Motor:5.5KW-4*1
Horizontal Swing Motor:250W-4*1, Gearbox WPA40-20
Workbench Feed Motor: 0.55kw-4*1, Gearbox WPS60-60
Roller Opening/Closing Motor: Conical Motor 0.4kw-4*1, Gearbox WD47-30
Voltage: 380V 50Hz (Voltage adjustable)
Spindle: 1800-2200 RPM (Variable frequency speed control available)
Grinding Time: Adjustable from 0-3 minutes
Spindle Length: 600mm
Worktable Size: 600mm (W)
Machine Dimensions: 1600*1450*1550mm (L*W*H)
Machine Weight: 1000KG
Consumables: Cloth wheels/sisal wheels/fan wheels/nylon wheels/leaf wheels/wing wheels, etc.
Consumable Diameter: 100mm-300mm
Applicable Products
suitable for door hinges,spoon handles,sides of spoons,sides of table knives,forks,ordinary hardware flat products,ets
Case
Door hinges are polished and ground.
1. Door hinges are flat products. During grinding, a grinding wheel with polishing abrasive is used, followed by a cloth polishing wheel. For a brushed finish, a nylon wheel is used.
2. This machine, in conjunction with fixtures, can be used throughout the production line to perform various processes such as polishing, grinding, and brushing.
3. If you have needs for door hinge polishing and grinding, please contact me to discuss specific solutions.
Polishing of stainless steel tableware (spoons, forks, knives).

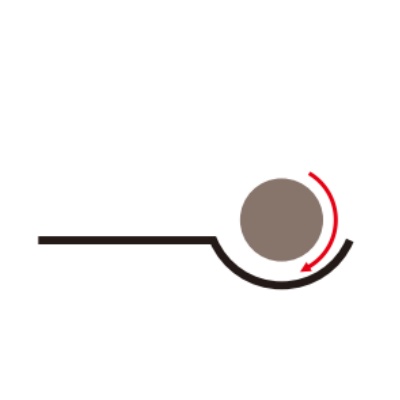

1. For stainless steel spoons with curved surfaces, a small curved grinder can be used to polish the concave areas to remove stretch marks from the stamping process.
2. This machine is specifically designed for grinding and polishing spoons and small curved surfaces throughout the tableware production line.
3. If you have any needs for polishing and grinding stainless steel or iron tableware, please contact me to discuss specific solutions.
--
Engineer training.
Based on customer needs, we provide on-site training at their factories. Our training methods include:
1. Remote video training: Before shipment, we will film usage videos and user manuals using the customer's machines, products, and consumables.
2. Customers send personnel to their factories to learn how to use the machines.
3. We send engineers to the customer's factories to train their employees on how to use the machines.
--
Your Success, Our Export Mission
Trusted by over 1,000 clients worldwide, quality knows no borders—your global supply chain partner
-
This is a simple and easy-to-operate automatic metal product polishing machine with an inner arc shape. The worktable and polishing arc can be customized to suit different products, and the size of the polishing arc can also be adjusted. The main adjustment mechanism of this machine is its mechanism; however, customized programming can also be used to adjust the polishing arc.
Details
The Single-Axis Concave Polishing Machine is an automated metal polishing system designed for ease of operation and user-friendliness. Both its worktable and polishing curvature can be customized to meet the specific requirements of various products, and the magnitude of the polishing arc is also flexibly adjustable. The primary adjustment functions of this equipment are executed via mechanical mechanisms; additionally, the polishing curvature can be fine-tuned through custom programming.
Details
1. The Automatic Inner and Outer Curve Polishing Machine is primarily designed for the consistent polishing of the inner and outer curved surfaces of stainless steel spoons and forks. 2. Simple Operation: Once the machine has been adjusted, the polishing process is performed automatically; the operator simply needs to load and unload the workpieces.
Details
This 5-axis automatic polishing machine utilizes a CNC programming system capable of storing multiple polishing programs for various parts. Once configured, these programs can be recalled and executed repeatedly. It is designed for the automatic surface polishing and grinding of products such as medical devices, 3C accessories, electronic goods, and hardware components.
Details
Designed for grinding the flat surfaces of blade products, this machine is capable of achieving a polished finish. It operates as a single-sided grinding system, utilizing a combined setup of two units: the left-side machine processes one side of the workpiece, after which the right-side machine processes the other.
Details

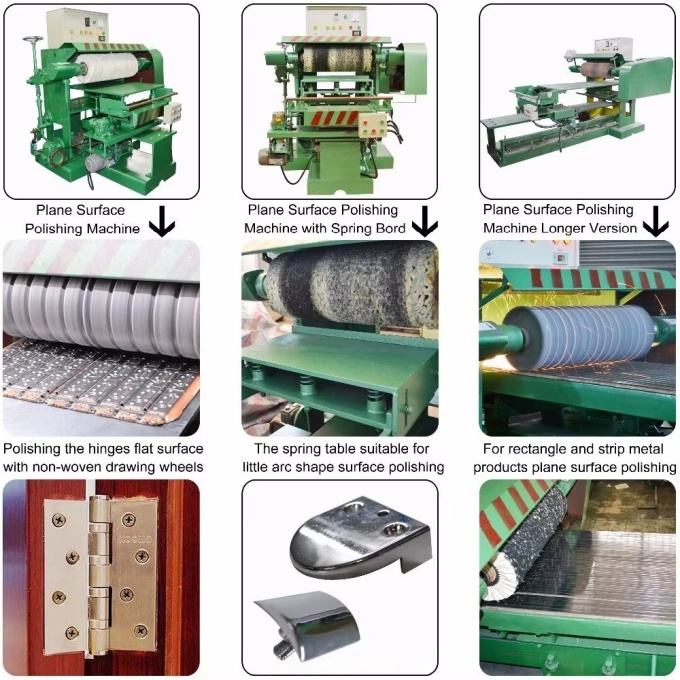

Conveyor-Type Automatic Door Hinge Brushing Machine: Designed for single-pass loading and grinding, this machine automatically performs surface brushing on stainless steel and iron door hinges.
