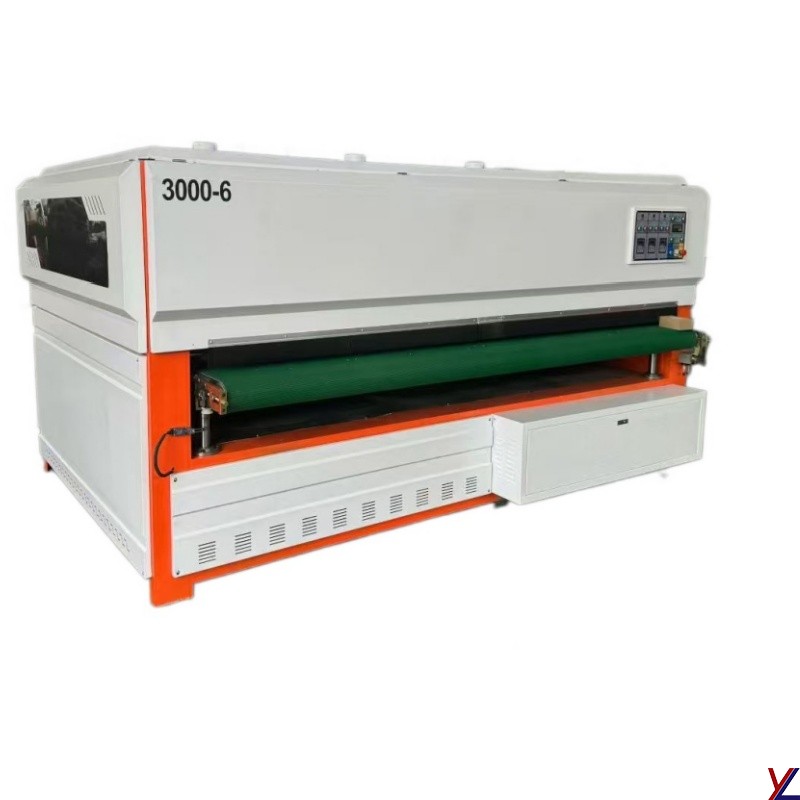

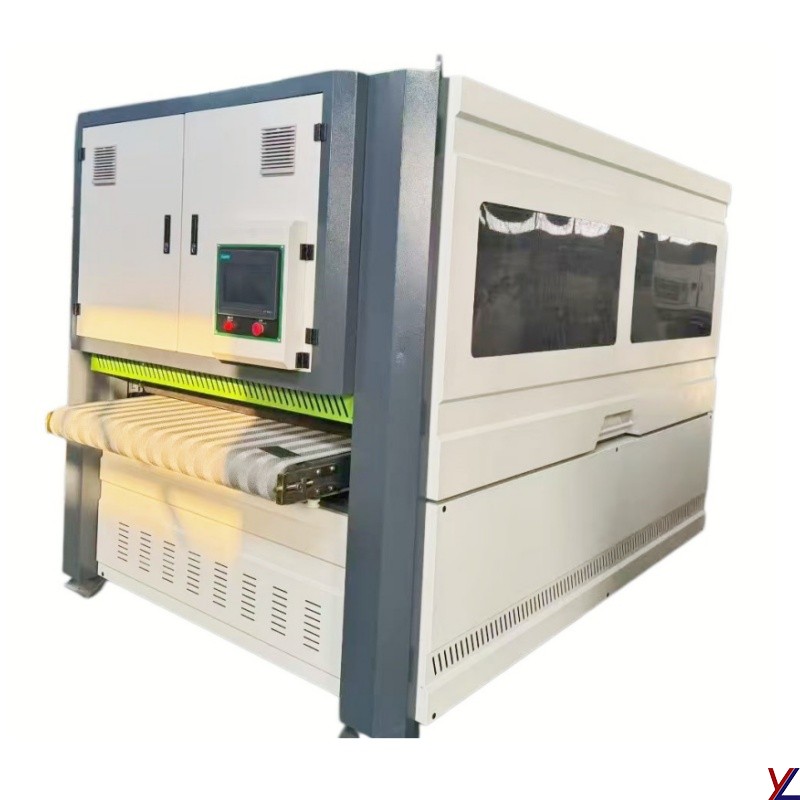

Conveyor-type Flat Belt Sander YL-SR-R1000
Product Name :
Conveyor-type Flat Belt SanderProduct Model :
YL-SR-Rcustom made :
Depending on the product's polishing process and dimensions, the grinding method and workbench size can be customized accordingly.Product Uses :
Suitable for the surface brushing and grinding of products such as stainless steel, iron, aluminum, zinc alloys, wood panels, and furniture boards.Conveyor-type Flat Belt Sander
product introduction
Machine basic parameters
| Machine Name | Dual-Belt Conveyor-Type Flat Belt Sander | |
| Machine Model | YL-SR-R1000 | |
| Sanding Head Group 1 Motor Power: | 11 kW (4-pole) | Adjust the power of the sanding head based on the requirements of the product being sanded. |
| Sanding Head Group 2 Motor Power: | 11 kW (4-pole) | Adjust the power of the sanding head based on the requirements of the product being sanded. |
| Grinding Method: | 2 Sanding Belts | Different types are customized based on the product's grinding process and desired surface finish. |
| Conveyor Motor: | 1.5 kW | |
| Platform Lifting Motor: | 0.37 kW | |
| Maximum Processing Width: | Products up to 1000 mm. | |
| Maximum Material Thickness: | 1–110 mm | |
| Maximum Material Length: | > 28 mm | |
| Weight: | 1700 kg | |
| Workbench Width | 1000MM | Customizable sizes: 400mm, 600mm, 800mm, 1000mm, 1300mm, 1500mm. |

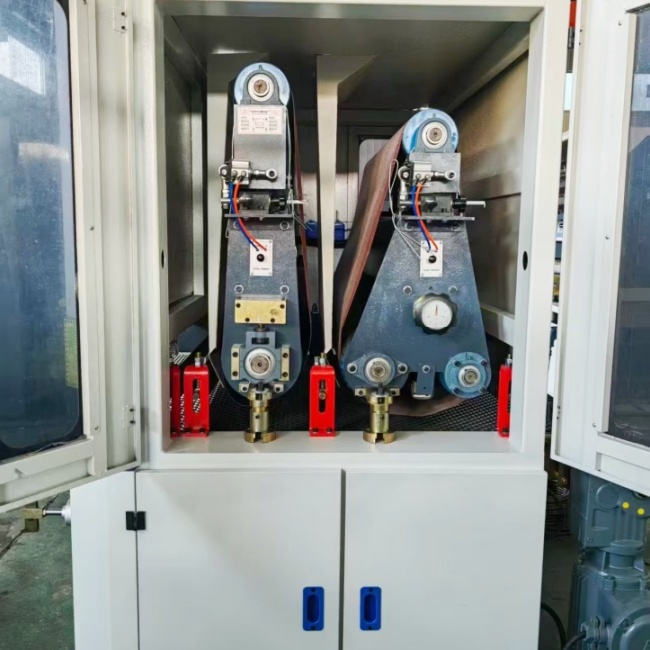

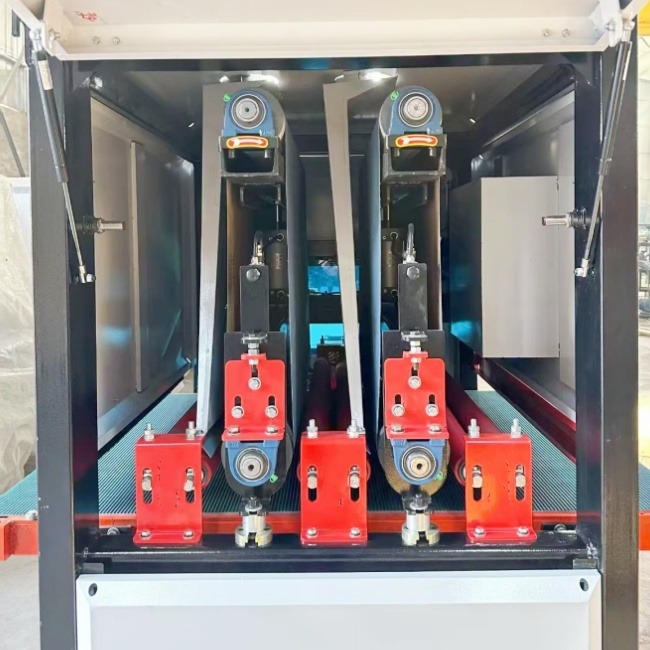

Dual-Belt Wide-Belt Automatic Sanding Machine:
1. Microcomputer control panel with digital display for simple and intuitive operation.
2. Equipped with a photoelectric sensing system to prevent sanding belt deviation.
3. Features a high-efficiency pure copper motor and a high-temperature-resistant aluminum alloy reducer.
4. The conveyor table is constructed from a single solid slab of 10cm-thick marble, ensuring high precision, resistance to deformation, and exceptional machine stability.
5. Features a stepless variable-speed conveyor motor, allowing the speed to be adjusted dynamically to suit different products.
6. The entire machine frame—fabricated from international-standard sheet metal—undergoes precision machining via a gantry milling process, followed by high-temperature powder coating to ensure corrosion resistance, stability, and a long service life.

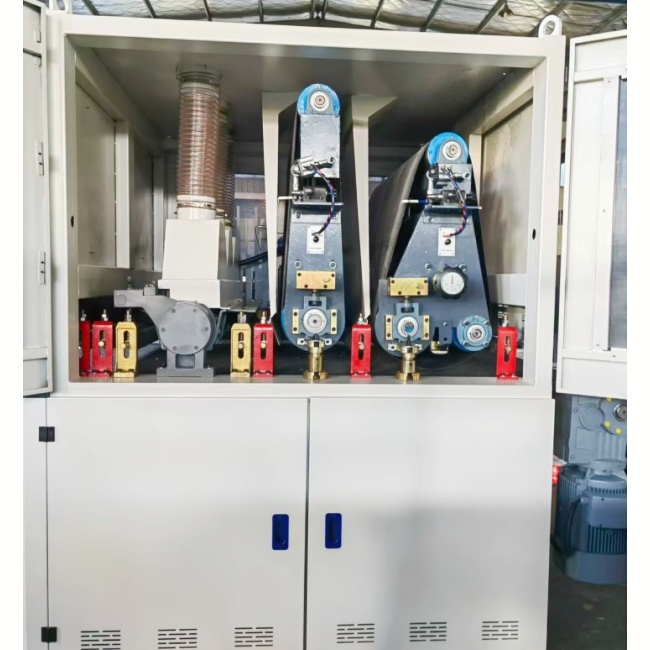

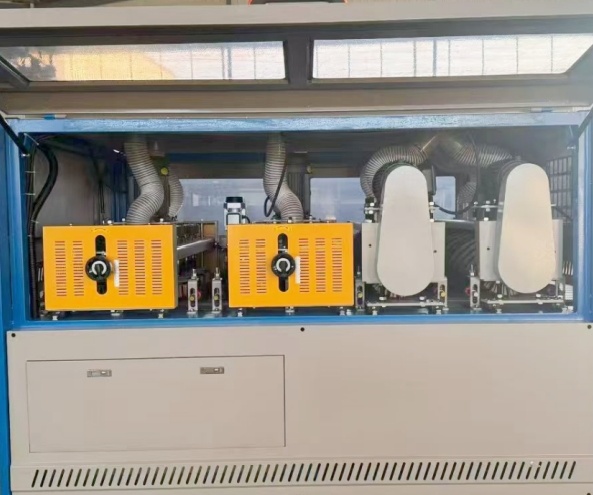

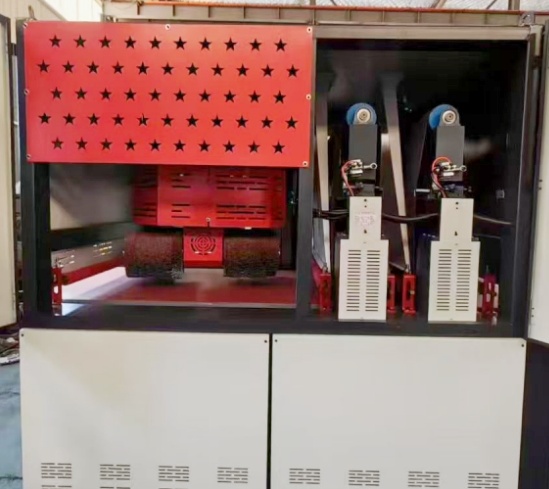

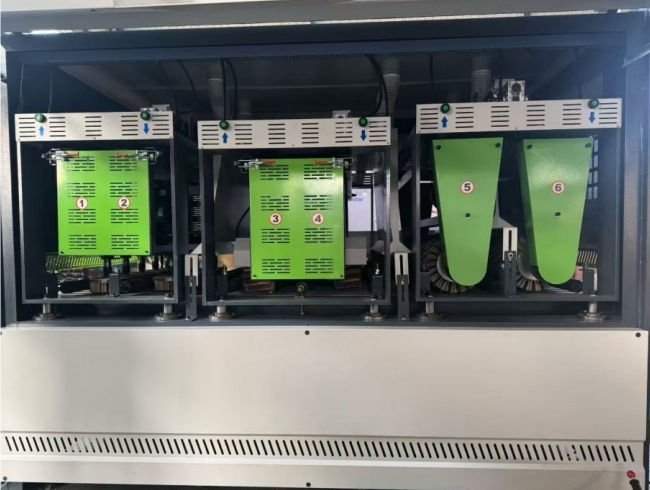

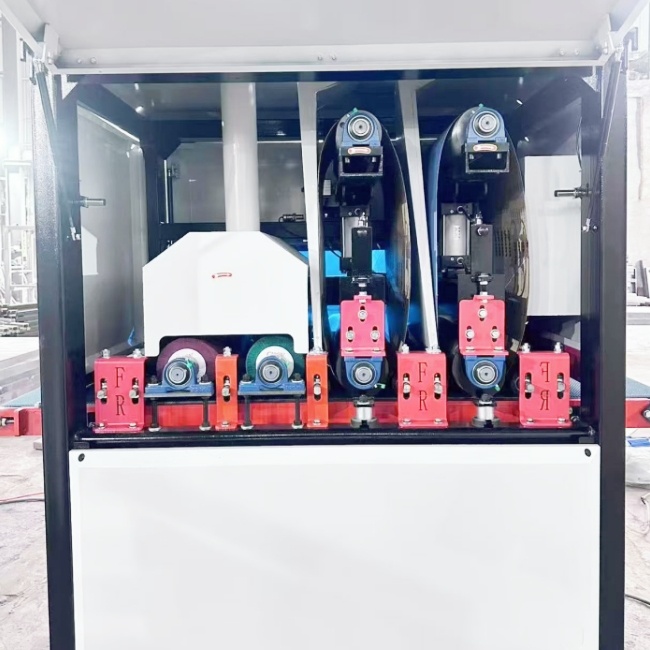

Grinding Effects of Different Grinding Head Sets:
1. Belt Grinding Set: Sanding belts of varying grits can be installed to achieve both coarse and fine grinding, depending on process requirements. Consumables include sanding belts.
2. Roller Grinding Set: Different grinding wheels can be installed to achieve coarse, fine, and fine grinding. Suitable for use with abrasive cloth, nylon, wing, wire drawing, hemp, and cloth wheels.
3. Rotating Grinding Set: Customizable with 2, 4, or 6 wheels, depending on product requirements. These wheels can achieve both fine and fine grinding, and can smooth product edges. Suitable for use with abrasive cloth, nylon, wing, wire drawing, hemp, and cloth wheels.
4. Self-Rotating Grinding Wheel: Similar to a disc sander, the grinding wheel rotates while being pressed downward. This type of grinding improves product flatness and provides the best final polishing results. Compatible with various wheels: disc sanders, cloth disc sanders, wool sanders, cleaning sanders, and more.
5. Different sanding groups can be customized based on product sanding requirements.

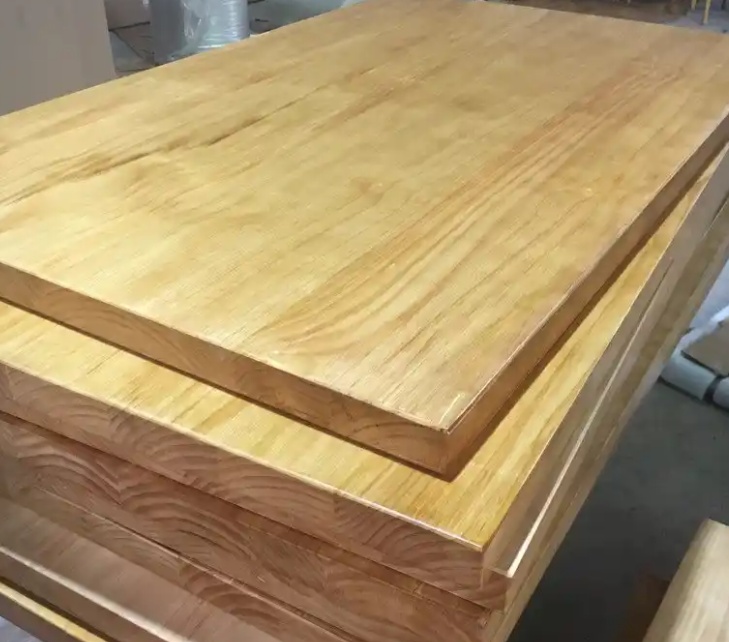

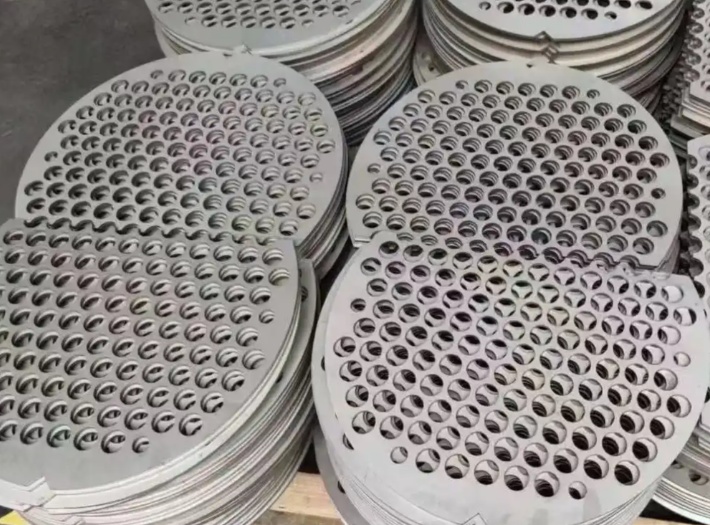

Polishable products.
Application of sanding belt buffing machine:
1.Widely use for products plane surface smoothing treatment and wire drawing.
2.Suitable for metal, wood, stainless steel, copper, brass, aluminum, steel, iron, alloy .etc sheet flat surface abrasive grinding and wire drawing polishing.
3.This abrasive belt machine suitable for products plane surface grinding and polishing. Such as elevator button panel, wood board, copper and brass sheet, metal decorative lines, stainless steel plank and so on.
Polishing effect of the sand belt grinding machine:

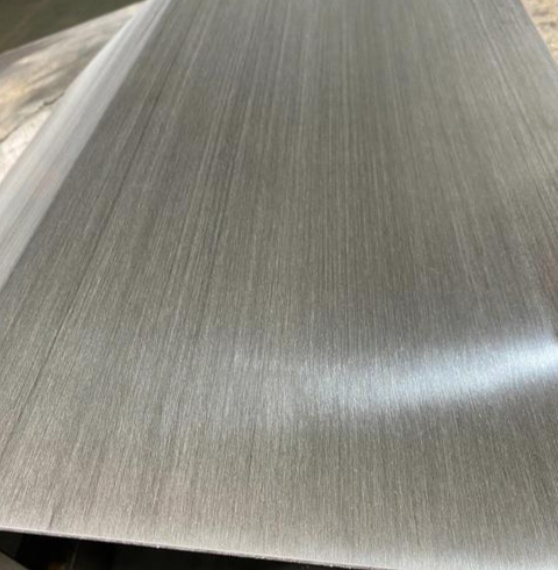

Generally use for metal and wood panel surface smooth processing and different kinds of wire drawing finishing. Like snow lines, short wire, broken wire lines and so on.
The finished wire are vary depending on the raw materials, abrasive tools, machine speed and working environment.
