Cookware Polishing Solutions

February 13, 2026

Cookware Polishing Solutions

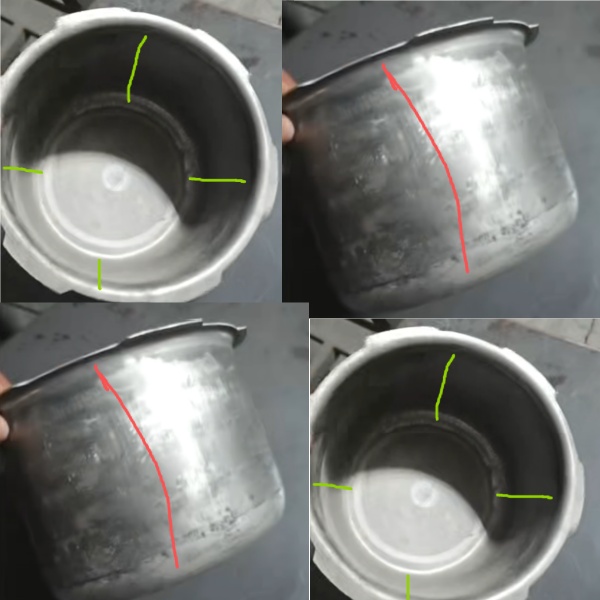

Stainless steel cookware polishing solutions

Machine specifications and process			Please read the following machine specifications and process descriptions, and select the appropriate machine based on your product requirements.
NO.	Name	picture	Machine parameters	Polishing position	Manufacturing processes and materials	illustrate

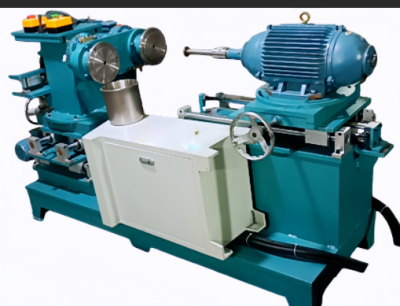

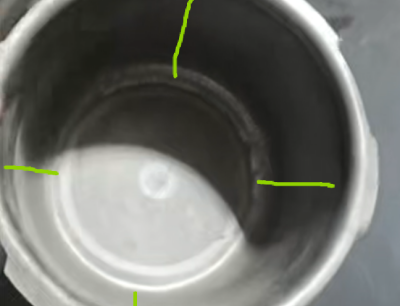

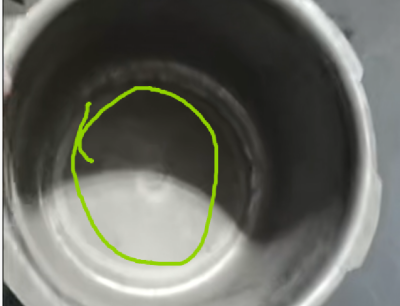

1	YL-QMG-0103 Stainless Steel Pot Interior Polishing Machine		1. Main motor: 2-stage 7.5kW polishing motor (1 unit). 2. Mold drive motor: 750W cycloidal gear reducer (1 unit). 3. Rotary workpiece head (one head is working, the other head is for loading and unloading products). 4. Features a 750W motor for reciprocating oscillation (can be switched off when not in use). 5. Pneumatic operation. 6. Controlled by traditional time relay circuit. 7. Manual adjustment for polishing wheel wear compensation. Dimensions: 1800mm (length) x 950mm (width) x 1450mm (height)	Inside of the cookware (side view)	1. Sanding wheel: The wheel diameter and thickness are customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 600#) is selected based on the product's surface roughness and desired final polishing effect. 2. Hardened pure hemp wheel: Diameter and thickness are customized according to the product size. 3. Pure hemp wheel: Diameter and thickness are customized according to the product size.	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。

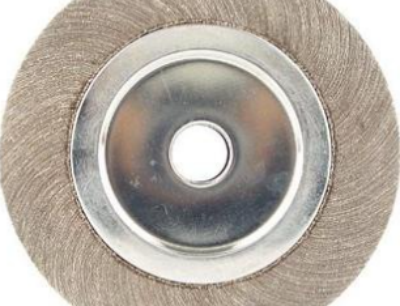

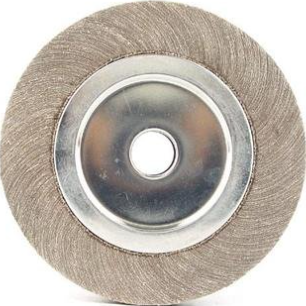

	Sanding disc		The size is customized according to the product, 180#.	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
	Sanding disc		The size is customized according to the product, 320#.	Rough grinding

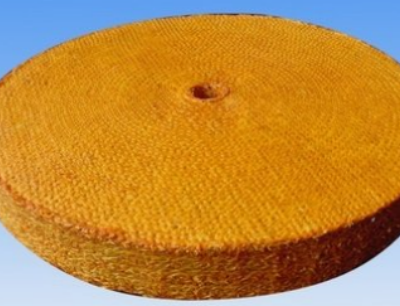

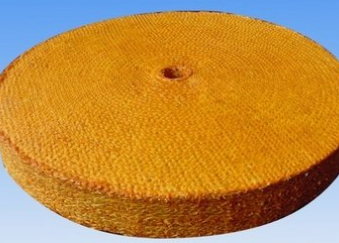

	Pure hemp wheel		Dimensions are customized according to the product.	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.

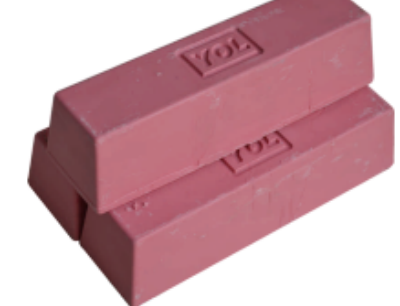

	2# Purple wax		1 kg/pack, 20 packs/box	Medium grind

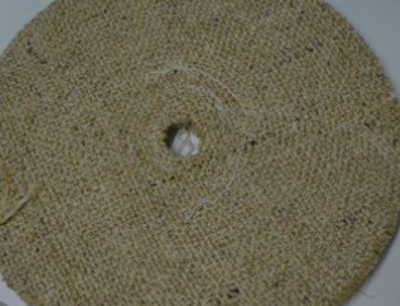

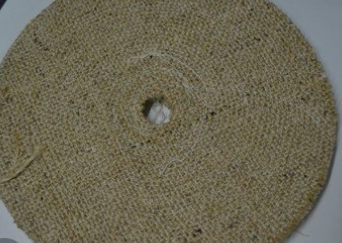

	Pure linen wheel		Dimensions are customized according to the product.	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	0#Purple wax		1 kg/pack, 20 packs/box	Fine polishing
2			1. Main motor: 2-stage 7.5kW polishing motor (1 unit). 2. Mold drive motor: 750W cycloidal gear reducer (1 unit). 3. Rotary workpiece head (one head is working, the other head is for loading and unloading products). 4. Features a 750W motor for reciprocating oscillation (can be switched off when not in use). 5. Pneumatic operation. 6. Controlled by traditional time relay circuit. 7. Manual adjustment for polishing wheel wear compensation. Dimensions: 1800mm (length) x 950mm (width) x 1450mm (height)	The inner bottom surface of the cookware	1. Sanding wheel: The wheel diameter and thickness are customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 500#) is selected based on the product's surface roughness and desired final polishing effect. 2. Hardened pure hemp wheel: Diameter and thickness are customized according to the product size. 3. Pure hemp wheel: Diameter and thickness are customized according to the product size.	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。
	Sanding disc		The size is customized according to the product, 180#.	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
	Sanding disc		The size is customized according to the product, 320#.	Rough grinding
	Pure hemp wheel		Dimensions are customized according to the product.	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.
	2# Purple wax		1 kg/pack, 20 packs/box	Medium grind
	Pure linen wheel		Dimensions are customized according to the product.	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	0#Purple wax		1 kg/pack, 20 packs/box	Fine polishing

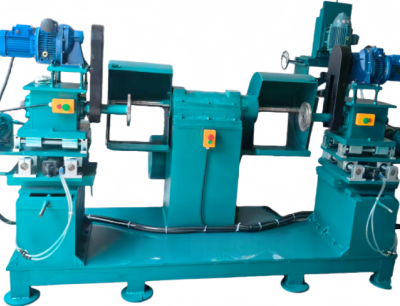

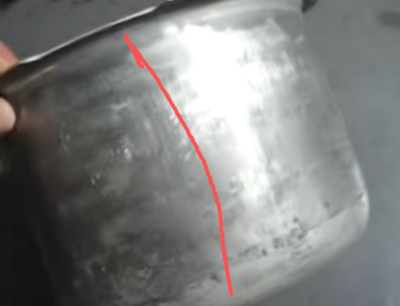

2	YL-QMG-0102 Stainless Steel Pot Exterior Polishing Machine		1. Main machine: One 18.5 kW motor, belt driven. 2. Mold drive: Two 750 W stepless speed reducers. 3. Two 750 W oscillating speed reducers. 4. Pneumatic cylinder for workpiece advancement; the mold shaft has a suction function. 5. Equipped with a tailstock function (removable when not in use). 6. Manual hand crank adjustment to compensate for material loss. 7. Traditional relay circuit control. Overall dimensions: 3000 mm (length) x 1200 mm (width) x 1550 mm (height)	Outer side of the cookware (dual workstation)	1. Sanding wheel: Diameter is 450MM, thickness is customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 500#) is selected based on the desired surface roughness and final polishing effect. 2. Hardened pure hemp wheel: Diameter 450MM, thickness 12MM, center hole 45MM 3. Pure hemp wheel: Diameter 450MM, thickness 12MM, center hole 45MM	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。
	Sanding disc		Diameter 450mm, thickness customized according to the product, 180#	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
	Sanding disc		Diameter 450mm, thickness customized according to the product,320#	Rough grinding
	Pure hemp wheel		Diameter 450mm * Thickness 12mm * 40 round holes	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.
	2# Purple wax		1 kg/pack, 20 packs/box	Medium grind
	Pure linen wheel		Diameter 450mm * Thickness 12mm * 40 round holes	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	0#Purple wax		1 kg/pack, 20 packs/box	Fine polishing

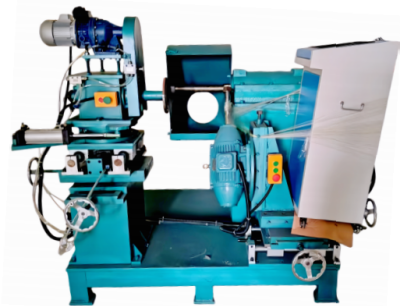

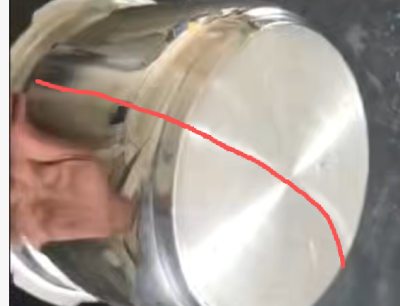

3	YL-QMG-0101 External and Bottom Polishing Machine		1. Main motor: 11KW, belt drive, one unit. 2. Mold drive: 750W stepless speed regulating motor, one unit. 3. Polishing motor: 4KW, one unit. 4. Pneumatic oscillating head for clamping. 5. Mold shaft with suction and blowing functions. 6. Manual hand crank for adjusting and compensating for material loss. 7. Traditional time relay circuit control. Overall dimensions: Length 1800 * Width 1250 * Height 1550 mm	The exterior and bottom of the cookware are polished simultaneously.	Side wheels: 1. Abrasive cloth wheel: Diameter is 450MM, thickness is customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 500#) is selected based on the product's surface roughness and desired final polishing effect. 2. Hardened pure hemp wheel, 450MM in diameter, 12MM thick, with a 45MM center hole. 3. Pure hemp wheel, 450MM in diameter, 12MM thick, with a 45MM center hole. Bottom wheel: The wheel is generally 200MM in diameter, and the thickness depends on the product diameter.	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。
	Sanding disc		Side view: Diameter 300mm, thickness customized according to the product, 180#	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
			Bottom: Diameter 200mm, thickness customized according to the product, 180#	Rough grinding
			Side view: Diameter 300mm, thickness customized according to the product, 320#	Rough grinding
			Bottom: Diameter 200mm, thickness customized according to the product, 320#	Rough grinding
	Pure hemp wheel		Side view: Diameter 300mm * Thickness 12mm * 40 circular holes	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.
	Pure hemp wheel		Bottom: Diameter 200mm * Thickness 12mm * 40 circular holes
	2# Purple wax		1 kg/pack, 20 packs/box
	Pure linen wheel		Diameter 300mm * Thickness 12mm * 40 round holes	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	Pure linen wheel		Diameter 200mm * Thickness 12mm * 40 round holes
	0#Purple wax		1 kg/pack, 20 packs/box

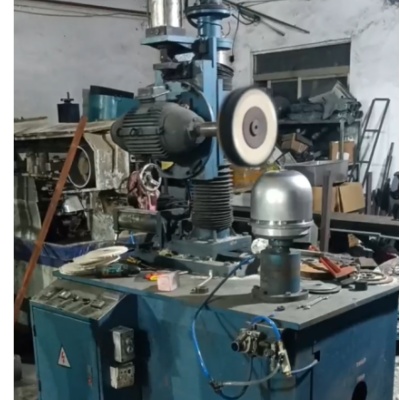

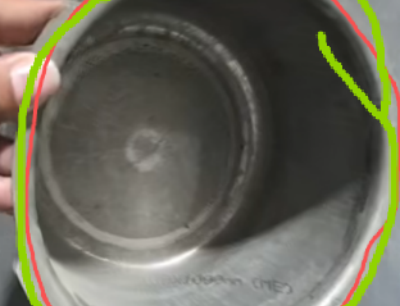

4	YL-QMG-01051 Internal positive edge polishing		1. Polishing wheel main motor: 4KW 2. Lifting motor: 750W 3. Pneumatic oscillating head for workpiece clamping. 4. Mold shaft with suction and blowing functions. 5. Manual handwheel adjustment to compensate for material loss. 6. Controlled by traditional time relay circuit. Overall dimensions: Length 1200 × Width 700 × Height 1900 mm	The edge of the cookware	1. Sanding wheel: The wheel diameter and thickness are customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 500#) is selected based on the product's surface roughness and desired final polishing effect. 2. Hardened pure hemp wheel: Diameter and thickness are customized according to the product size. 3. Pure hemp wheel: Diameter and thickness are customized according to the product size.	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。
	Sanding disc		Side view: Diameter 300mm, thickness customized according to the product, 180#	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
	Sanding disc		Side view: Diameter 300mm, thickness customized according to the product, 320#	Rough grinding
	Pure hemp wheel		Diameter 300mm * Thickness 12mm * 40 circular holes	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.
	2# Purple wax		1 kg/pack, 20 packs/box	Medium grind
	Pure linen wheel		Diameter 300mm * Thickness 12mm * 40 circular holes	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	0#Purple wax		1 kg/pack, 20 packs/box	Fine polishing

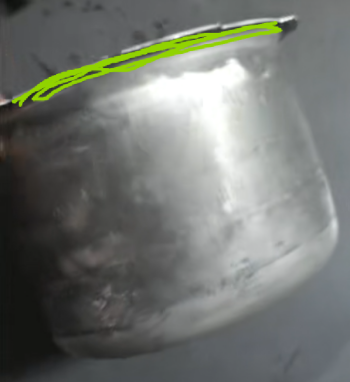

5	YL-QMG-01052 Internal reverse edge polishing		1. Polishing wheel main motor: 4KW 2. Lifting motor: 750W 3. Pneumatic oscillating head for workpiece clamping. 4. Mold shaft with suction and blowing functions. 5. Manual handwheel adjustment to compensate for material loss. 6. Controlled by traditional time relay circuit. Overall dimensions: Length 1200 × Width 700 × Height 1900 mm	The reverse side of the edge of the cookware.	1. Sanding wheel: The wheel diameter and thickness are customized according to the product size and thickness. The grit size (180#, 240#, 320#, 400#, 500#) is selected based on the product's surface roughness and desired final polishing effect. 2. Hardened pure hemp wheel: Diameter and thickness are customized according to the product size. 3. Pure hemp wheel: Diameter and thickness are customized according to the product size.	The molds are customized according to the product. Depending on the production volume, one machine can be configured for each process (the entire production line requires 4 machines). If higher quality is required, 5 machines should be configured, adding a coarser grit for rough grinding.。
	Sanding disc		Side view: Diameter 300mm, thickness customized according to the product, 180#	Rough grinding	Rough grinding: Select different grit sizes (180#, 240#, 320#, 400#, 600#) according to product quality requirements. The finer the rough grinding, the better the final polishing quality.
	Sanding disc		Side view: Diameter 300mm, thickness customized according to the product, 320#	Rough grinding
	Pure hemp wheel		Diameter 300mm * Thickness 12mm * 40 circular holes	Medium grind	Medium grinding: Covers the texture left by coarse grinding with a sanding wheel.
	2# Purple wax		1 kg/pack, 20 packs/box	Medium grind
	Pure linen wheel		Diameter 300mm * Thickness 12mm * 40 circular holes	Fine polishing	Fine polishing: This process removes the marks left by the hard abrasive wheel and sanding cloth, resulting in a mirror-like finish.
	0#Purple wax		1 kg/pack, 20 packs/box	Fine polishing

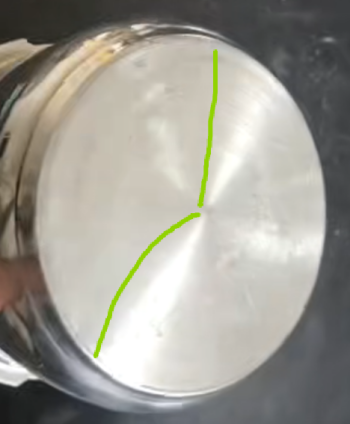

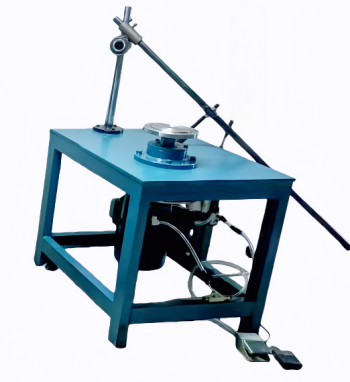

6	YL-QMG-0104 Manual bottom CD pattern brushing		1. 4 kW motor with belt drive. 2. Cast iron bearing housing, manufactured using boring process. 3. Pneumatic caliper disc brake. 4. Variable frequency speed control, maximum speed 2900 revolutions per minute. Table dimensions: Length 750 * Width 650 * Height 650 mm	Manual brushing/polishing of the cookware bottom (inner and outer surfaces)	80-grit sandpaper roll, 50 meters long.	Customized molds are made according to the product specifications.
	emery cloth		Width 50mm, length 50m, 80#	CD pattern brushed finish
illustrate		1. The machines used for polishing cookware are generally the types shown above. 2. After the machines are manufactured, you will need to provide us with the cookware to be polished so we can create the necessary fixtures. 3. Once the machine is adjusted according to the product specifications, no further adjustments are needed; only the fixtures need to be changed. 4. The number of machines should be increased based on the monthly production volume and process requirements. For high-volume production, one machine can be allocated to each process step. This allows for assembly line production and increases monthly output. 5. If the monthly production volume is low, machines can be allocated based on the different parts of the product, but this requires changing consumables after each process step is completed. 6. Therefore, we recommend configuring the machines according to your specific needs.
