Automated Polishing Solution for Pot Handles

1. Solution Overview

This pot handle polishing solution is a complete turnkey project designed to efficiently and effectively finish metal pot handles. It integrates advanced polishing equipment, high-quality abrasive materials, and standardized processes to meet the needs of mass production, ensuring consistent surface quality while reducing labor costs by 60%.

2、The pot handle product that needs to be addressed.

Automated Polishing Solution for Pot Handles

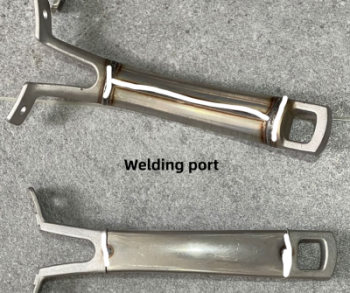

The weld seams on the handle need to be removed, and then polished to a mirror finish.

2. Core Equipment Configuration

YL-PM-013-03 Belt Sander (4kW) 1 unit

YL-PM-8 8-Axis Automatic Belt Sander (8 axes) 3 units

YL-APTM-006 Polishing Machine (7.5kW) 6 units

YL-PM-005 Horizontal Polishing Machine (5.5kW×2) 5 units

YL-ATPM-010 Cleaning Machine (70kW) 1 unit

Main Equipment Advantages

8-Axis Automatic Belt Sander: PLC touchscreen control, adjustable speed (1500-2500 rpm), suitable for complex-shaped pot handles.

Horizontal Polishing Machine: Dual-motor design, powerful, low noise (<75dB), ideal for mass production.

Cleaning Machine: Equipped with high-pressure cleaning and drying functions, water recycling system, saving resources.

3. Abrasive Selection

Abrasive Belt | High Zirconia Abrasive Belt | 2100×50mm | 80#

Abrasive Belt | Stainless Steel Abrasive Belt | 513 | 4200×50mm | 150#/240#/400#

Abrasive Belt | Stainless Steel Abrasive Belt | 513 | 2100×50mm | 150#/240#/400#

Polishing Wheel | Sievice Wheel | 250MM×10MM×32 Hexagonal

Polishing Wheel | Sievice Wheel | 300mm×10mm×32mm Round Hole Abrasive Belt

32mm Hole Paper Pad (Reusable)

32mm Hexagonal Claw Steel Pad

Material Advantages

High Zirconia Abrasive Belt: 30% longer service life than ordinary abrasive belts, lower dust generation.

Hemp rope wheel: Heat-resistant, produces a mirror-like shine on metal surfaces.

4. Standard Polishing Process

Preliminary Cleaning: Remove oil, dust, and contaminants using a cleaning machine; thoroughly dry.

Rough Polishing: Remove surface defects and machining marks using 80# high-zirconium abrasive belt (30-45 seconds per piece).

Medium Polishing: Fine grinding using 150#-240# stainless steel abrasive belt (20-30 seconds/piece).

Fine Polishing: Fine grinding using 400# stainless steel abrasive belt (15-25 seconds/piece).

Final Polishing: Mirror polishing using a hemp rope wheel with polishing compound (10-20 seconds/piece).

Quality Inspection: Inspect surface defects, measure thickness (tolerance ±0.02mm), and test surface roughness (Ra ≤ 0.05μm).

5. Technical and Quality Standards

Surface Finish: Mirror polished (Ra ≤ 0.05μm)

Dimensional Accuracy: ±0.02mm

Corrosion Resistance: Passes 48-hour salt spray test (stainless steel handle)

Production Capacity: 800-1200 pieces/hour

Power Requirements: 380V/220V, 50/60Hz; Total Power Consumption ≤120KW

6. Investment and After-Sales Service

Total Investment: RMB 1,001,550 (Equipment: RMB 973,810; Abrasive: RMB 27,740)

Payback Period: 10-12 months (based on a monthly output of 30,000 pieces)

Warranty: 1-year warranty on main unit, 6-month warranty on consumable parts

Service: Free operator training (3 days at the factory), lifetime technical support, and on-site installation (additional fee required)

7. Orders and Delivery

Payment Terms: 30% prepayment, 70% balance before shipment (telegraphic transfer); irrevocable letter of credit at sight is accepted.

Delivery Time: 25-30 working days after order confirmation.

Delivery Method: FOB Guangzhou/Shenzhen Port, China.

Packaging: Equipment is packaged in wooden crates, abrasives are packaged in moisture-proof cardboard boxes, and an English operation manual is included.
