Explosion-proof and Eco-friendly Dust Treatment Equipment YL-QMW-06

Name: Explosion-proof and Eco-friendly Dust Treatment Equipment YL-QMW-06
Availability: InStock

Wet-type explosion-proof dust collection system designed for polishing and grinding operations. Features dual-stage filtration with water curtain spray and mesh filter, completely removing explosive dust gases. Equipped with explosion-proof control cabinet and alarm lights for maximum safety. Stainless steel construction ensures corrosion resistance. Meets environmental protection standards. Ideal for metal polishing, plastic mold line removal, and medical device surface treatment. Easy maintenance with high-pressure water cleaning system.

Brand :
YOL-POLISHING
Product Name :
Explosion-Proof Dust Treatment Equipment
Color :
Green/White
Product Model :
YL-QMW-06
custom made :
Customized according to dust treatment requirements.
Product Uses :
For dust explosion protection and dust handling during polishing and grinding operations.

Inquire Now

Product Details

Explosion-proof, Eco-friendly Dust Collector

Product Introduction

The Explosion-Proof and Eco-Friendly Dust Treatment Equipment is a wet-type, explosion-proof dust collection system specifically designed for polishing and grinding operations. It effectively addresses the issues of flammable and explosive dust generated in scenarios such as metal processing and plastic mold line finishing, thereby ensuring workplace safety and environmental compliance.

Core Features

🔥 Explosion Safety	Thoroughly eliminates explosive dust and gases via wet dust removal; equipped with an explosion-proof control cabinet and warning lights.
🌿 Environmental Compliance	Tested by professional agencies and certified to meet environmental emission standards.
💧 Dual Filtration	Water curtain spray + fine-mesh filtration screen—a two-stage purification process ensures complete dust removal.
🧹 Easy Cleaning & Maintenance	Both filtration screens are detachable and can be quickly rinsed using a high-pressure water gun.

Working Principle

Introduction to dust treatment equipment:

1. Dust removal efficiency reaches 98-99%

2. Air volume 5172~6210m³

3. All accessories are explosion-proof series

4. Comes with leakage protection

5. Internal circulation design, no need to feed water all the time, just change the water regularly

6. The water pump is connected to the water pipe to drain water directly, making it easy to change water.

7. The new stainless steel filter design is not easy to block and eliminates important safety hazards such

as fire and

flammability.

8. Possess explosion-proof certificate and exhaust standard inspection certificate

9. Comes with a silencer design to reduce noise.

10. Using a special anti-clogging water pump, the problem of water pump clogging is solved.

11. We use a three-layer water curtain filtration to pre-filter bulky garbage to prevent garbage clogging

Equipment Parameters

Operating Voltage	AC380V 50HZ	The voltage can be adjusted upon request.
Manufacturing Standards	AQ4273-2019
Exhaust power	2.2KW/3kw/4KW	The power output should be determined based on the volume of dust generated by the machine.
Water pump power	0.55KW
Air volume	5009～12736m³	The airflow volume is calculated based on the machine's power output.
Dust removal efficiency	≥93%
Dimensions	L2900W 2180H 1650MM	Dimensions may vary depending on the customized machine configuration.
Total Weight	950KG
illustrate		1. The whole machine material is first designed with stainless steel, and the thickness of the stainless steel at the bottom is 1.35MM. 2. The electrical and switches of the whole machine adopt explosion-proof accessories, which meet the explosion-proof standards of the whole machine and have a third-party explosion-proof certificate. 3. The interior of the equipment adopts three-layer water curtain filtration and uses a stainless steel filter; a custom-made anti-clogging water pump makes the water pump less likely to be clogged; the water pump is connected to a water pipe and can be drained directly to the outside, making it very convenient to drain water.

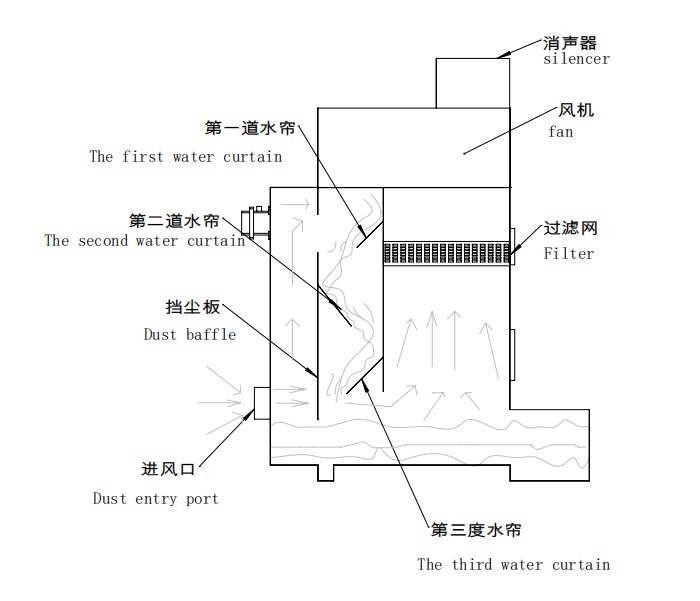

Working principle of explosion-proof dust separation

Wet explosion-proof and dust-proof polishing machine, the dust gas generated during the polishing and grinding process is

passed through the dust collection device and under the attraction of the fan, the dust-containing exhaust gas waste

passes through the pipe and enters the water curtain spray W-shaped three-way dust collection air duct. It is the first

level filtration, entering the flowerless filter. This is the second-level filtration. Under the centrifugal action of

the high-efficiency energy-saving fan and the double-action flushing and washing of high-pressure water, the explosive

dust gas has been completely removed, and the installed explosion-proof control cabinet (flammable Electrical equipment

for dust environments), explosion-proof warning lights and other components provide early warning and protection to meet

the requirements of explosion-proof standards.

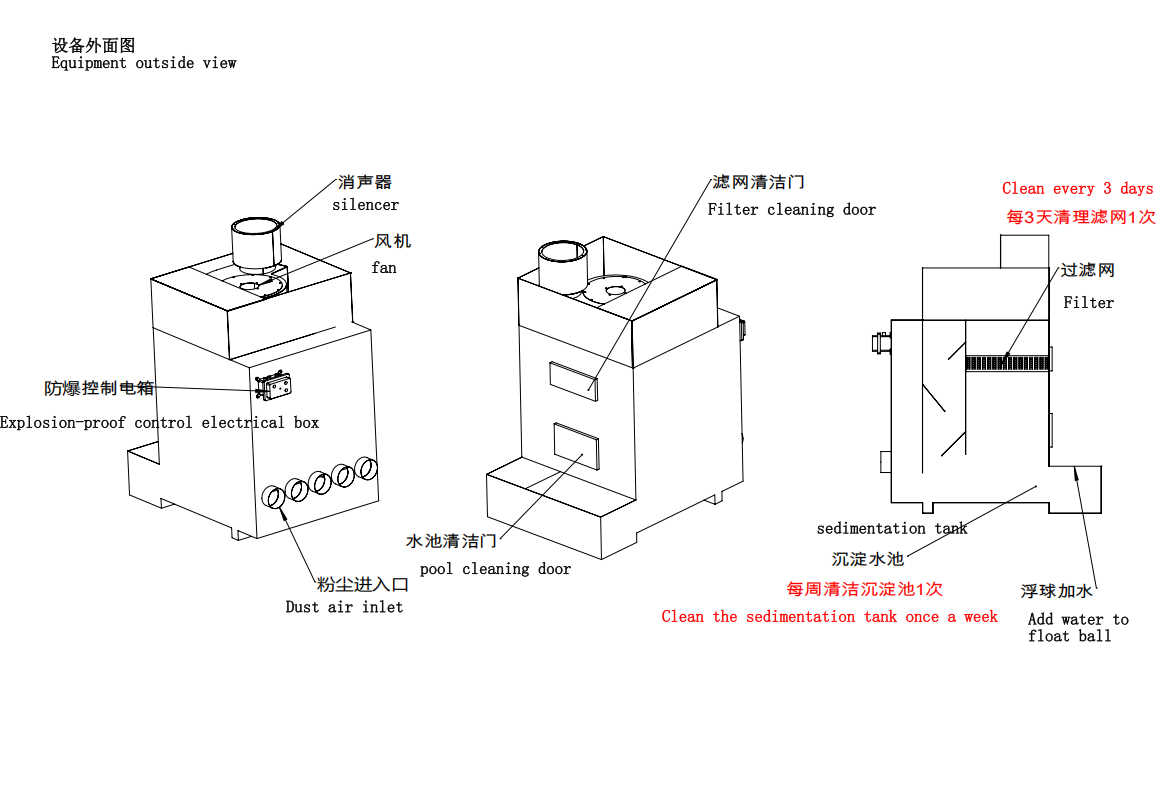

Water filter cleaning device:

The filtered wastewater passes through the first filter screen to filter out large debris, and then enters the second

fine filter screen through the water pump (the water after completing the first filter will not easily block the water

pump). Smaller particulate impurities are filtered out, and after two water filtrations, the discharged wastewater has

mostly removed impurities. Both the first and second screens can be removed and flushed with the high-pressure water gun

equipped with the equipment. The pressure gun improves the convenience of cleaning by the operator. The equipment is

equipped with a filter pressure gauge. When the impurities reach a certain amount, the pressure gauge alarms to prompt

the operator to clean the filter device.

Feature description:

1. The dust collection device and explosion-proof device have been tested by professional institutions to meet

environmental protection requirements.

2. The cleaning device has two steps of filtering, which is easy to clean.

3. Stainless steel shell device to prevent rust and improve corrosion resistance.

4. Wet dustproof, prevent dust, ensure a comfortable working environment and ensure the safety of operators."

Usage Scenarios

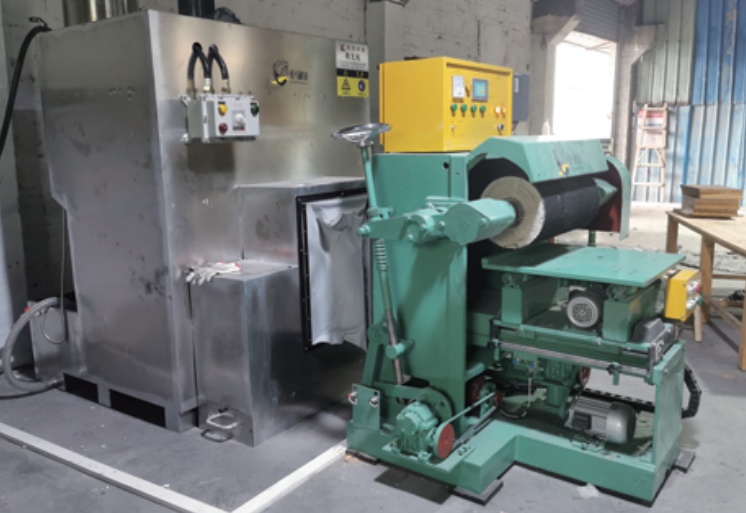

Flat Polishing Machine Dust Management
Dust Control for Tube Polishing Machines
e.

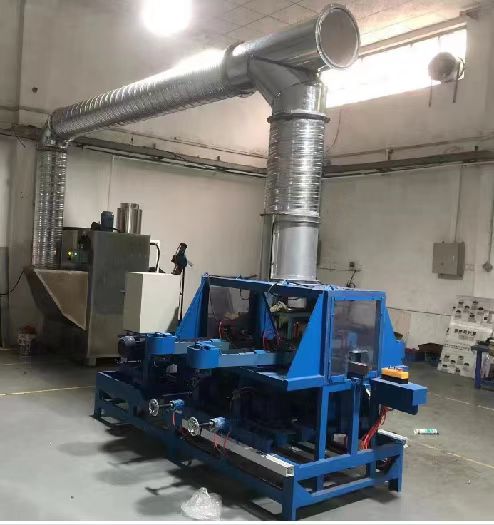

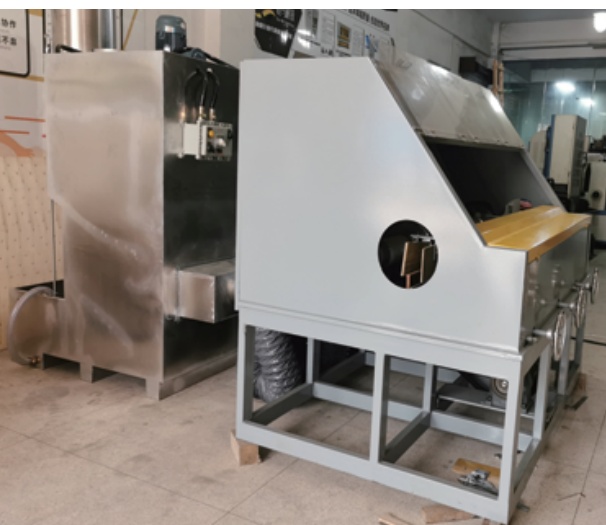

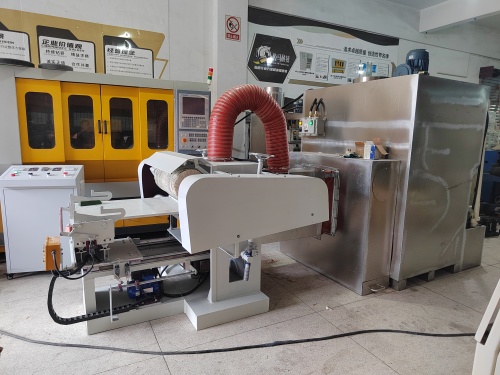

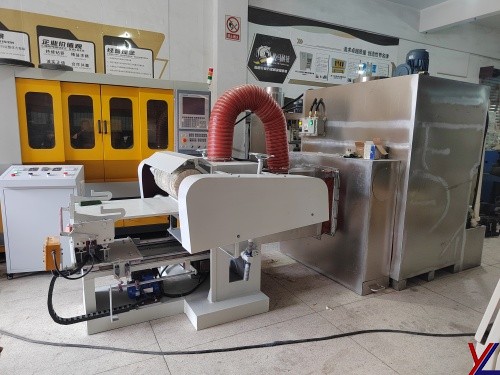

Dust Control for Belt Sanders

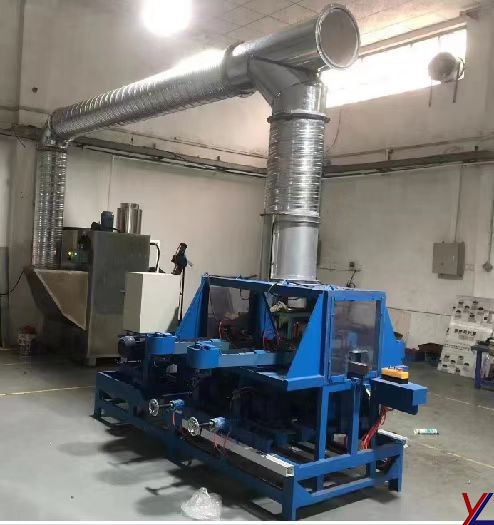

Dust Control for Automatic Polishing Machines

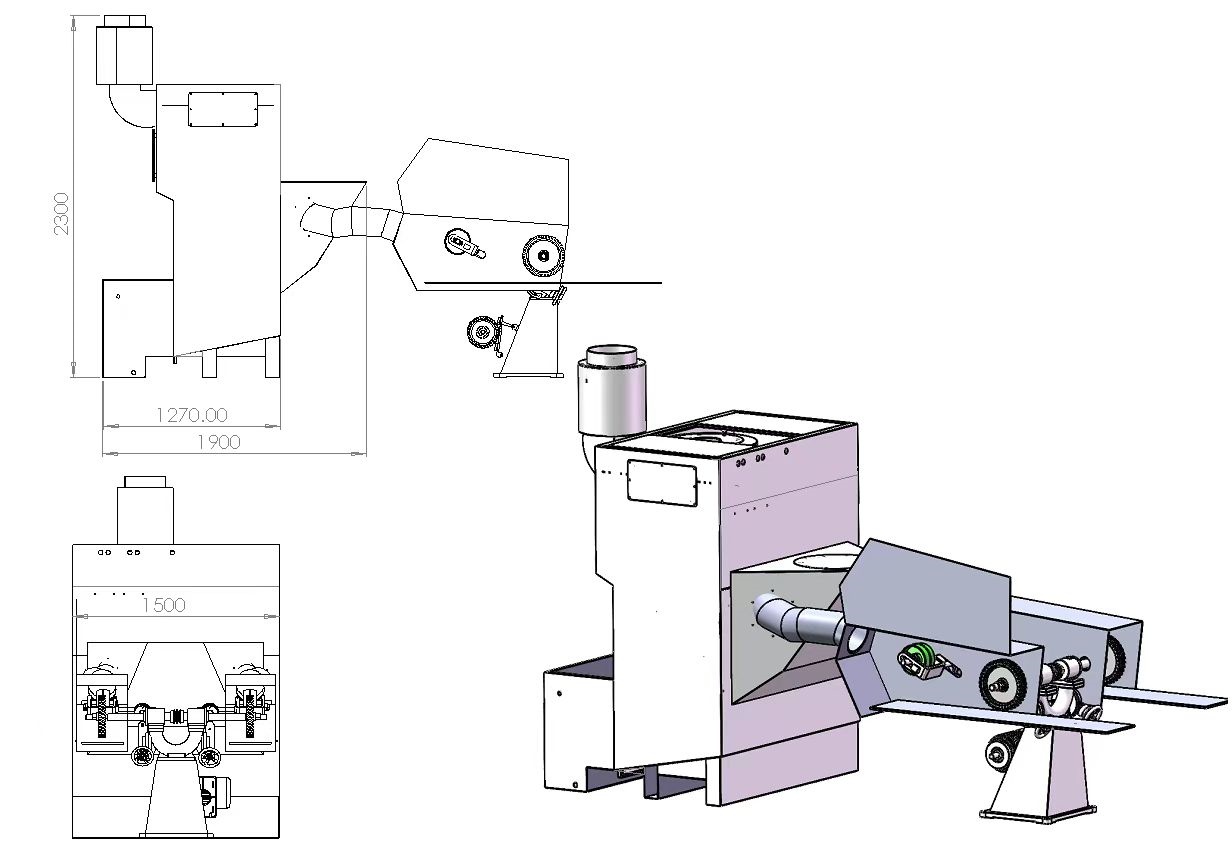

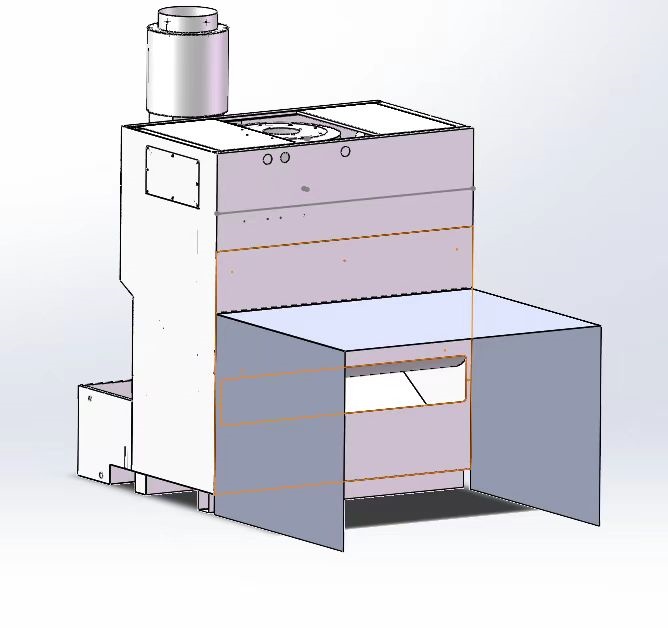

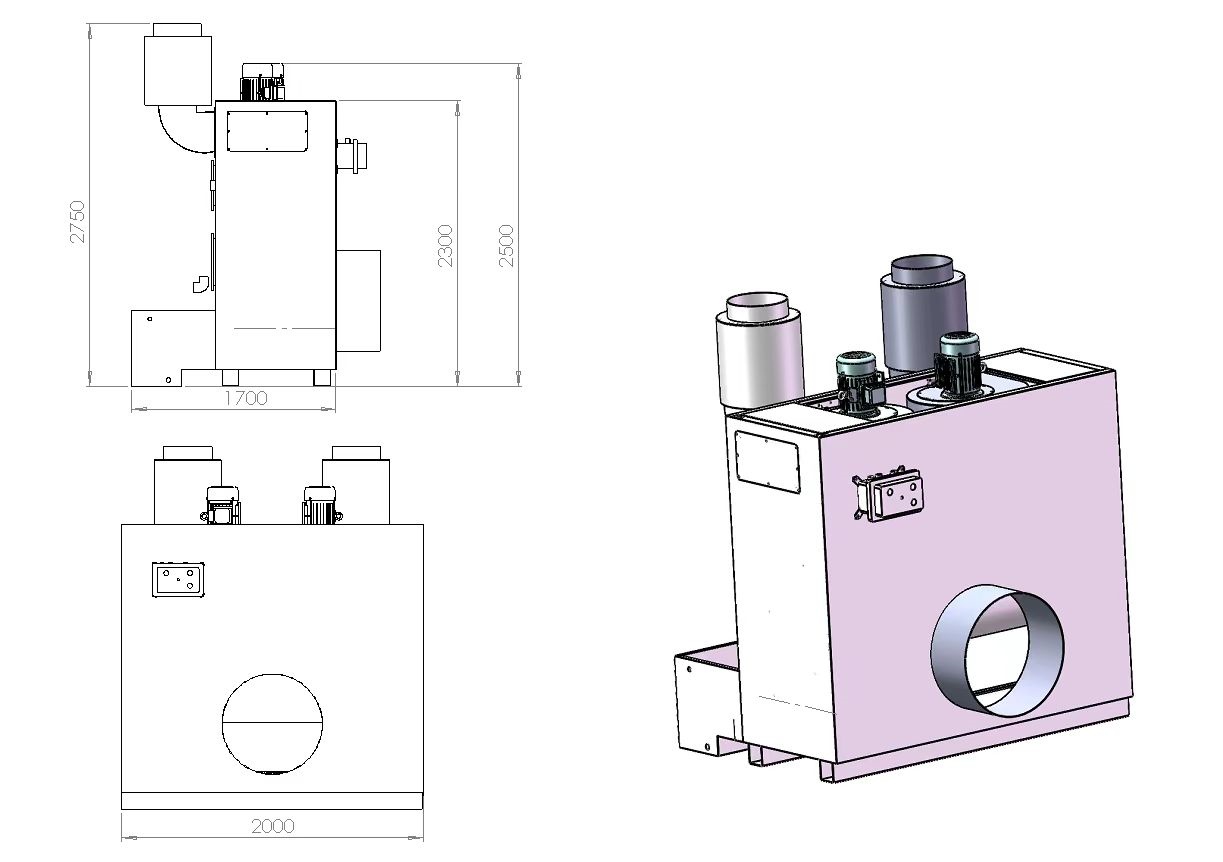

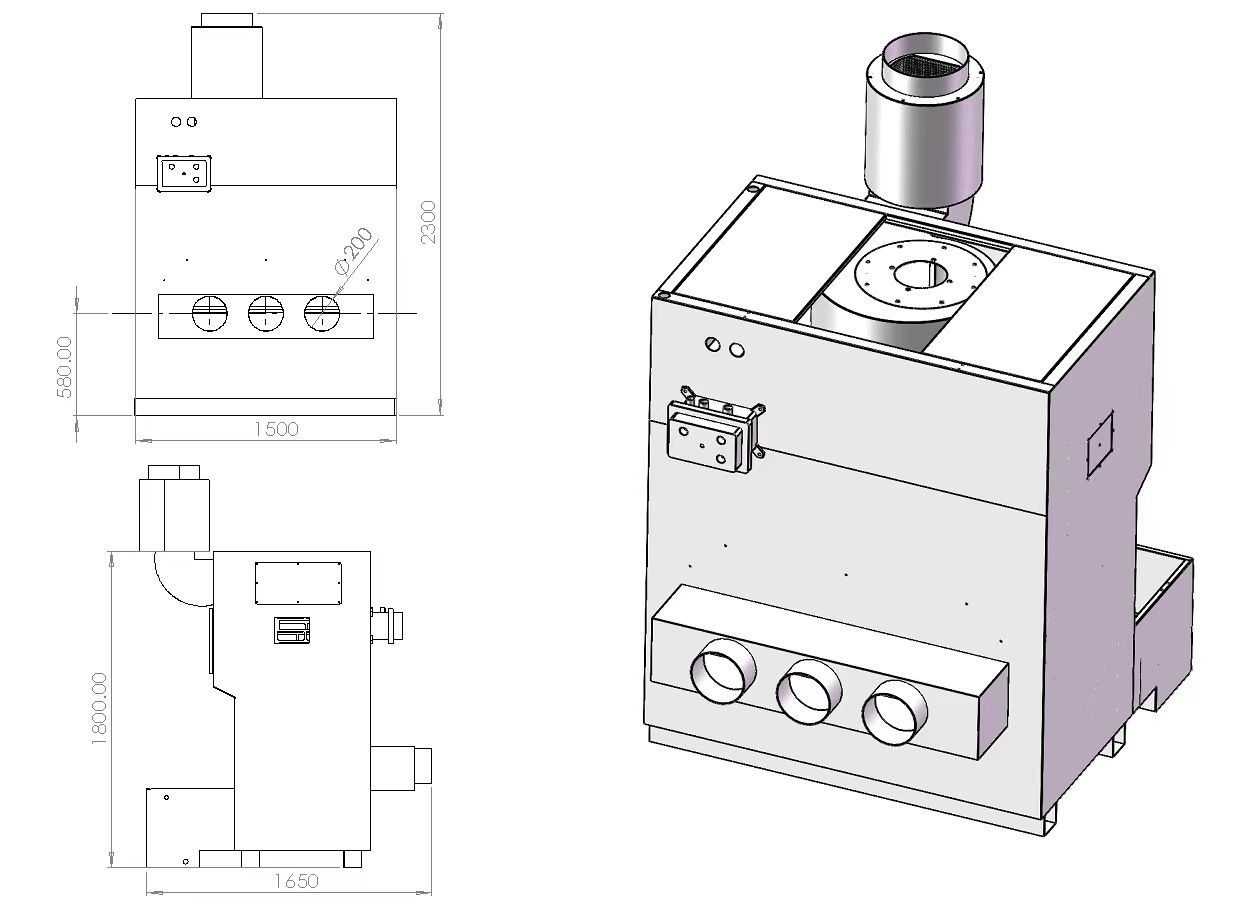

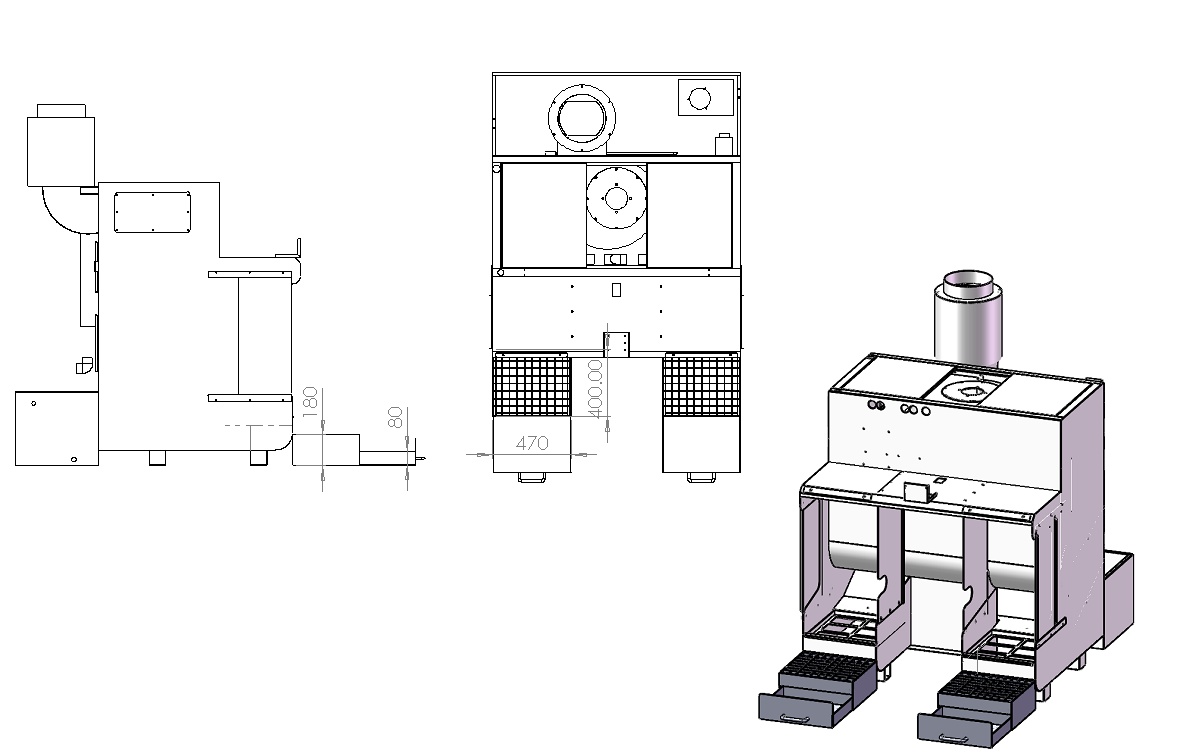

Design Drawings for a Dust Collector

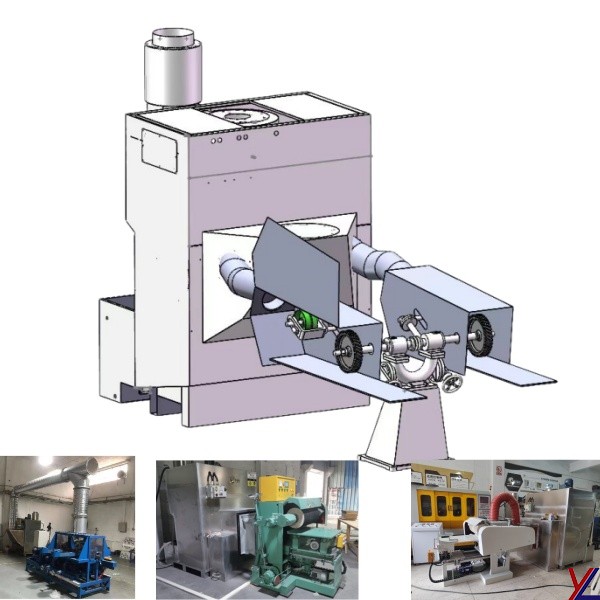

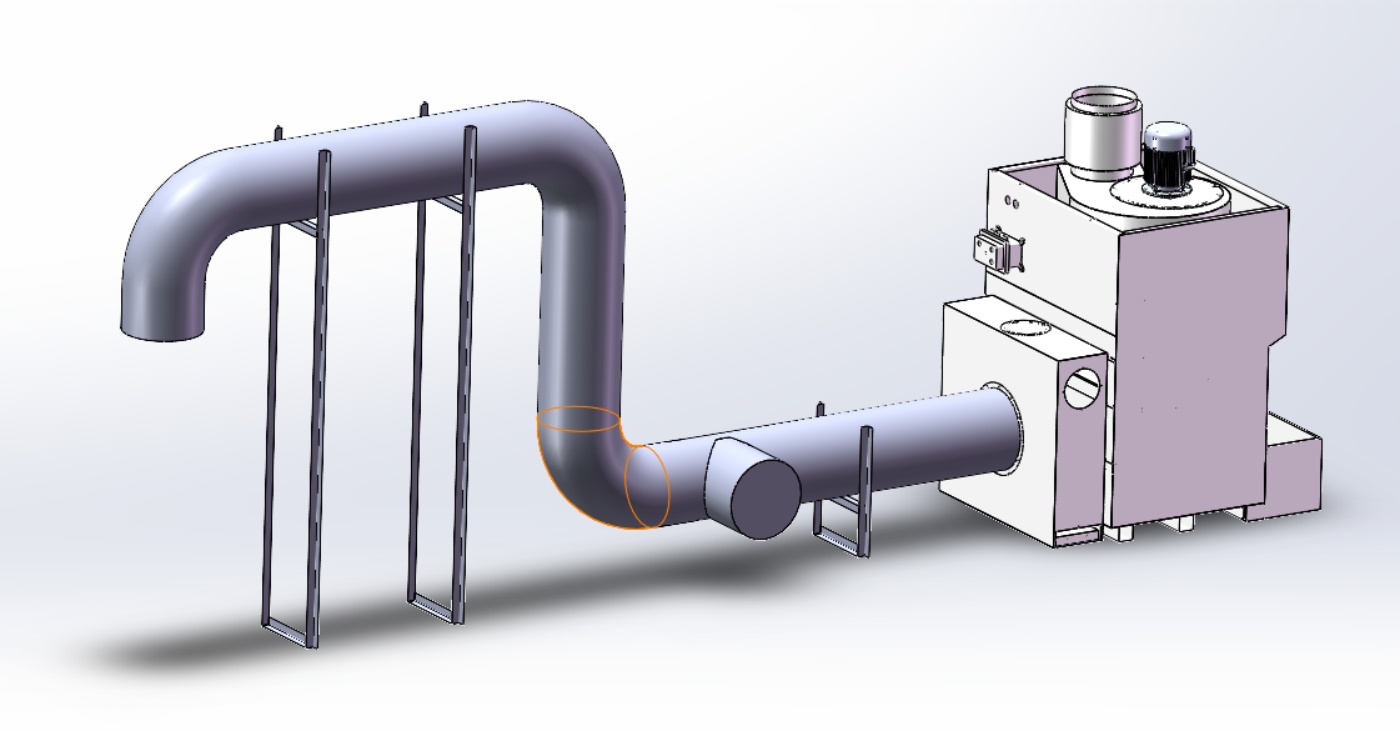

Customized Explosion-Proof, Eco-Friendly Dust Collector
Customized Explosion-Proof, Eco-Friendly Dust Collector
Customized Explosion-Proof, Eco-Friendly Dust Collector
Customized Explosion-Proof, Eco-Friendly Dust Collector
Customized Explosion-Proof, Eco-Friendly Dust Collector

--Customized Explosion-Proof and Eco-Friendly Dust Collectors: We customize the external structure, dust collection method, machine interface, airflow volume, and other specifications of our explosion-proof and eco-friendly dust collectors to suit various polishing and grinding equipment.
