This custom automatic polishing machine is independently researched, developed and manufactured by Qianma Technology (Guangzhou) Co., Ltd. — a certified high-tech factory with original polishing equipment patents. The equipment is globally exported byYiliang Polishing, providing integrated machine customization, process debugging and matched consumable service for overseas industrial clients.
This series of wet‑type polishing and dust‑removal equipment is constructed from 201 stainless steel. The product lineup includes integrated polishing machines, wet‑environment belt sanders, grinding dust‑removal workbenches, pneumatic spray‑paint water curtain cabinets and activated carbon adsorption boxes, widely applied in grinding, woodworking, metal cutting and hardware polishing processes.
It delivers a high dust‑removal efficiency of 98‑99%. Different from conventional 1‑2‑layer water curtains and plastic filter screens, it uses three‑layer water‑curtain filtration and stainless‑steel filters to eliminate clogging and potential fire risks. Large‑sized grates allow quick waste cleaning, replacing inefficient traditional dust‑collecting cloth bags.
Equipped with full explosion‑proof accessories, leakage protection and built‑in silencers, the step‑designed water pump prevents blockage. The inner water‑circulation system only needs regular water change for easy upkeep. All units hold explosion‑proof and inspection certificates, and custom sizes are offered for various working conditions.
Brand :
易亮Product Name :
Explosion-Proof Dust Treatment Equipment YL-ATPM-061Product Model :
YL-ATPM-061、YL-ATPM-059、YL-ATPM-060custom made :
Customized according to dust treatment requirements.Product Uses :
For dust explosion protection and dust handling during polishing and grinding operations.
Product Introduction
The Explosion-Proof and Eco-Friendly Dust Treatment Equipment is a wet-type, explosion-proof dust collection system specifically designed for polishing and grinding operations. It effectively addresses the issues of flammable and explosive dust generated in scenarios such as metal processing and plastic mold line finishing, thereby ensuring workplace safety and environmental compliance.
Core Features
| 🔥 Explosion Safety | Thoroughly eliminates explosive dust and gases via wet dust removal; equipped with an explosion-proof control cabinet and warning lights. |
| 🌿 Environmental Compliance | Tested by professional agencies and certified to meet environmental emission standards. |
| 💧 Dual Filtration | Water curtain spray + fine-mesh filtration screen—a two-stage purification process ensures complete dust removal. |
| 🧹 Easy Cleaning & Maintenance | Both filtration screens are detachable and can be quickly rinsed using a high-pressure water gun. |
Working Principle
Equipment Parameters
| Operating Voltage | AC380V 50HZ | The voltage can be adjusted upon request. |
| Manufacturing Standards | AQ4273-2019 | |
| Exhaust power | 2.2KW/3kw/4KW | The power output should be determined based on the volume of dust generated by the machine. |
| Water pump power | 0.55KW | |
| Air volume | 5009～12736m³ | The airflow volume is calculated based on the machine's power output. |
| Dust removal efficiency | ≥93% | |
| Dimensions | L2900*W 2180*H 1650MM | Dimensions may vary depending on the customized machine configuration. |
| Total Weight | 950KG | |
| illustrate |
1. The whole machine material is first designed with stainless steel, and the thickness of the stainless steel at the bottom is 1.35MM. 2. The electrical and switches of the whole machine adopt explosion-proof accessories, which meet the explosion-proof standards of the whole machine and have a third-party explosion-proof certificate. 3. The interior of the equipment adopts three-layer water curtain filtration and uses a stainless steel filter; a custom-made anti-clogging water pump makes the water pump less likely to be clogged; the water pump is connected to a water pipe and can be drained directly to the outside, making it very convenient to drain water. |

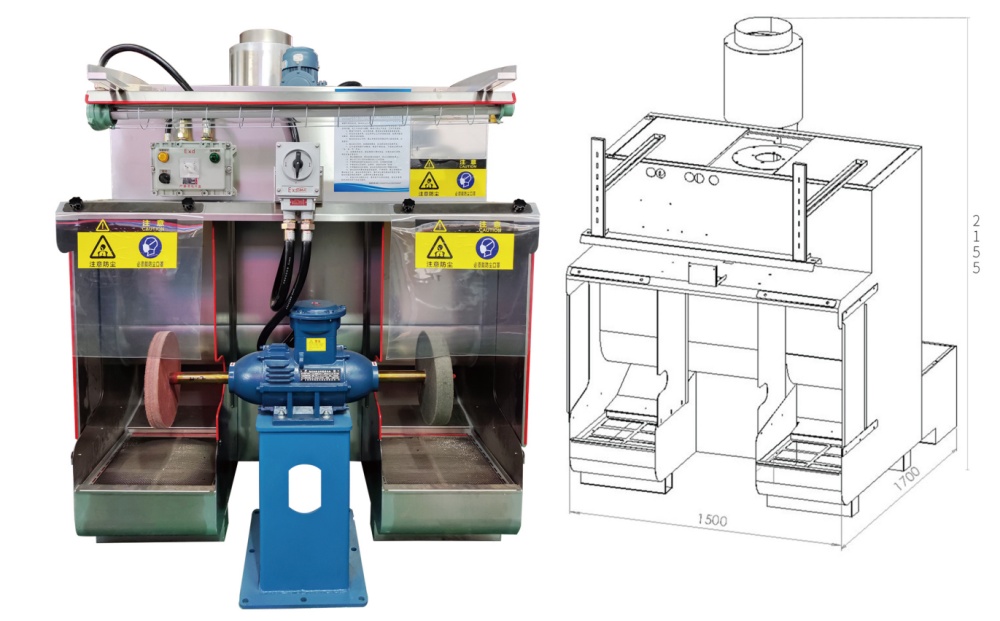

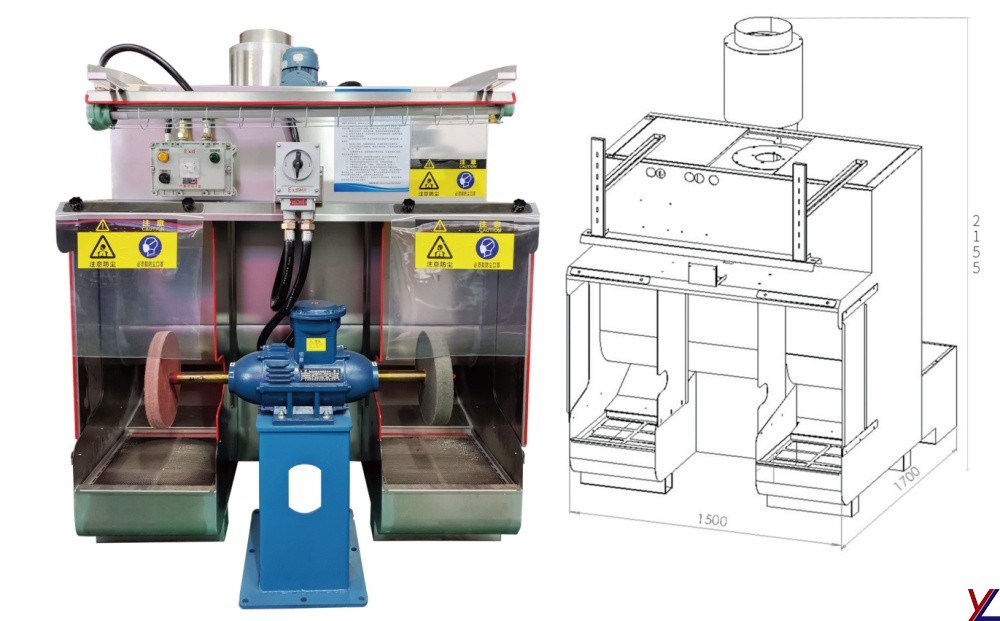

Model: YL-ATPM-059-1
Name: Explosion-proof Eco-friendly Polishing Machine
Material: Stainless steel
Rotational speed: 2980 RPM
Polisher power: 4 kW
Blower power: 2.2 kW
Water pump power: 0.55 kW
Polisher type: Explosion-proof polishing machine
Application: Surface polishing and grinding of metal products
Shaft diameter: Customizable (tapered spindle or threaded flange shaft)
Compatible wheels: Max. diameter 350 mm; thickness 50–100 mm
Dust removal efficiency: 98–99%
Airflow: 3814–5230 m³/h
Motor, control box, and wiring are all explosion-proof rated.
Equipped with leakage protection.
Internal circulation design: no continuous water supply required; only periodic water changes needed.
Water pump connected to a hose for convenient water changing and cleaning.
All-new stainless steel filter screen design.
Built-in silencer.
Stepped pump intake with grid barrier prevents debris from reaching the pump, avoiding clogs.

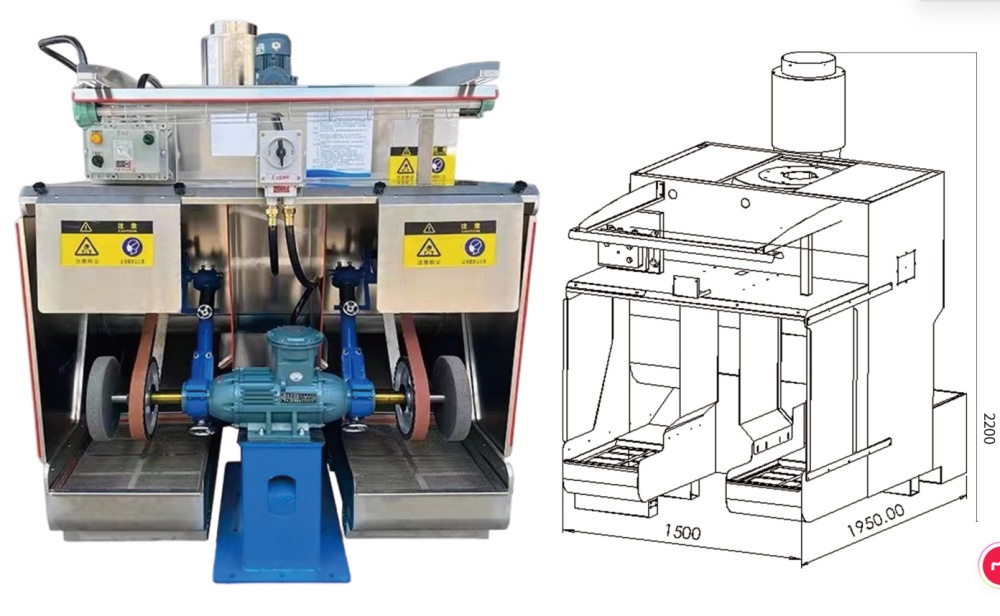

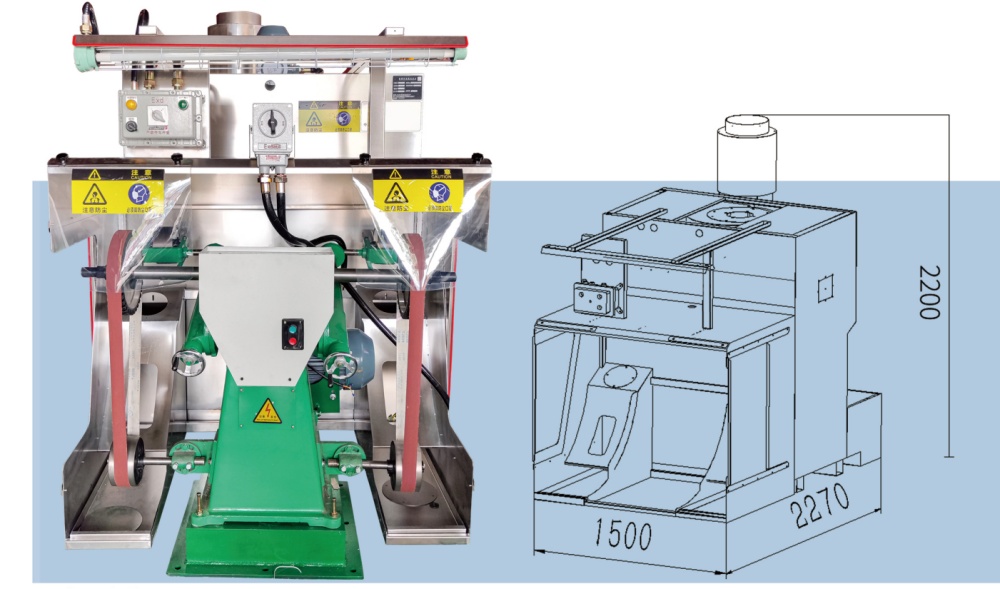

Model: YL-ATPM-059-2
Name: Explosion-proof Eco-friendly Integrated Polishing & Belt Grinding Machine
Material: Stainless steel
Rotational speed: 2980 RPM
Polisher power: 4 kW
Blower power: 2.2 kW
Water pump power: 0.55 kW
Polisher type: Explosion-proof polisher
Application: Surface polishing and grinding of metal products
Spindle design: Dual-station setup allowing for coordinated use of the polishing wheel and abrasive belt; supports automatic switching or simultaneous operation.
Dust removal efficiency: 98–99%
Airflow: 3814–5230 m³/h
Motors, electrical control boxes, and wiring are all explosion-proof rated.
Equipped with earth-leakage protection.
Internal circulation design: No continuous water supply required; only periodic water changes are needed.
Water pump connected to a hose for convenient water changing and cleaning.
All-new stainless steel filter screen design.
Built-in silencer.
Stepped water pump layout with a grid barrier prevents debris from reaching the pump, thereby preventing clogs.
Model: YL-ATPM-060
Name: Explosion-proof, eco-friendly vertical polishing and belt-grinding combo machine
Material: Stainless steel
Rotational speed: 2980 RPM
Polishing machine power: 4 kW
Blower power: 2.2 kW
Water pump power: 0.55 kW
Machine type: Vertical polishing machine; motor-driven spindle. High-power combo unit; motor power is customizable; optional variable frequency drive (VFD) available for high-speed operation.
Application: Surface grinding and polishing of metal products (large items, castings).
Spindle design: Dual-station setup allowing for easy interchange of polishing wheels; includes one drive wheel set for the abrasive belt, with optional idler configurations (single extended-arm type, dual triangular type, or standard belt assembly).
Dust removal efficiency: 98–99%
Airflow: 3814–5230 m³/h
Explosion-proof components: Motor, electrical control box, and wiring.
Integrated earth-leakage protection.
Internal circulation design: No continuous water supply required; only periodic water changes needed.
Water pump connected to drainage hose for convenient water changing and cleaning.
All-new stainless steel filter screen design.
Integrated silencer design.
Multi-stage pump layout with grid barriers to prevent debris from reaching the pump and causing clogs.
on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring systemWebsite data operation system developed based on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring systemWebsite data operation system developed based on Google API big data integrates all website data (listing, weight, ranking, traffic, inquiry), so that each website has its own keyword database and weekly keyword monitoring system

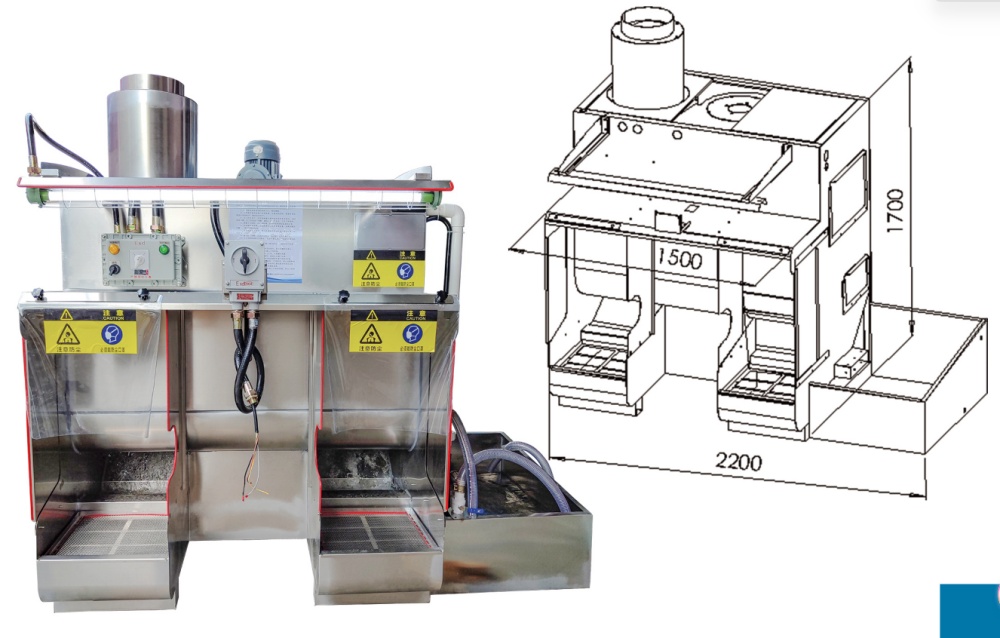

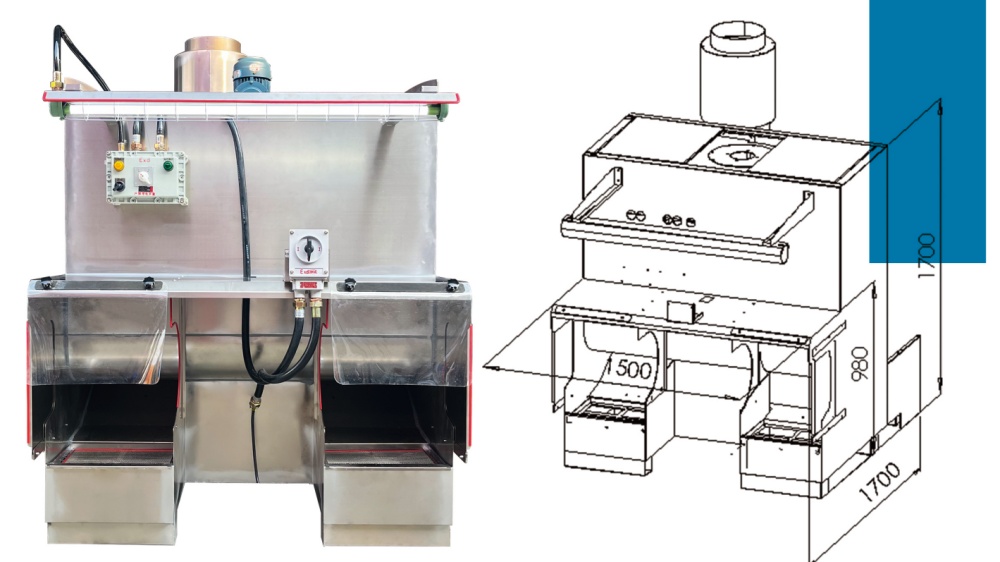

Model: YL-ATPM-061-1
Name: Explosion-proof Eco-friendly Dust Collector
Material: Stainless steel
Rotation speed: 2980 RPM
Fan power: 2.2 kW
Water pump power: 0.55 kW
Polisher type: Dual-station polisher (dimensions customizable based on machine specifications)
Dust removal efficiency: 98–99%
Airflow: 3814–5230 m³/h
Motor, electrical control box, and wiring are all explosion-proof components.
Equipped with built-in earth leakage protection.
Internal circulation design; no continuous water supply required—only periodic water changes.
Water pump connected to a hose for convenient water changing and cleaning.
All-new stainless steel filter screen design.
Built-in silencer design.
Stepped water pump and grid barrier prevent debris from reaching the pump, thereby preventing clogs.

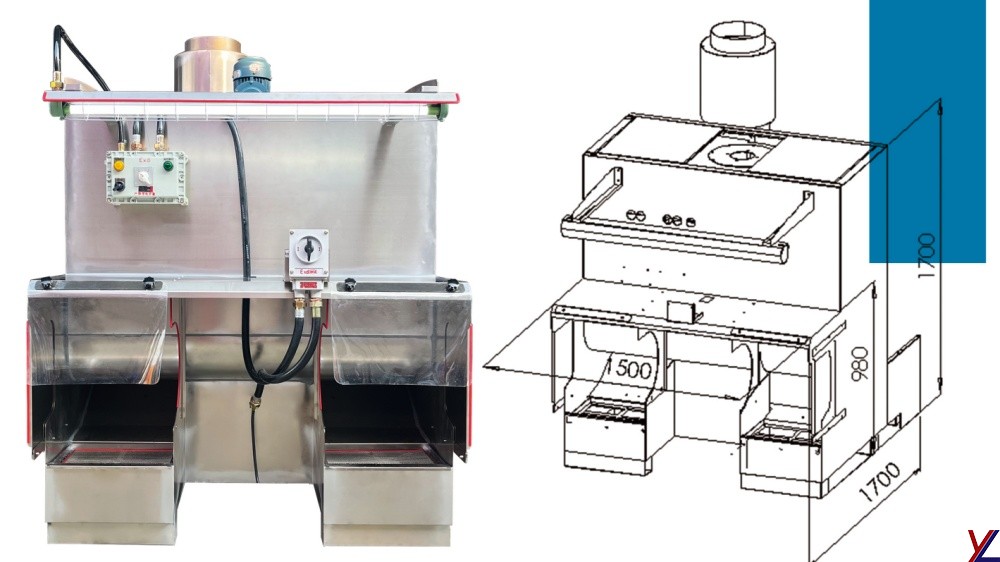

Model: YL-ATPM-061-2
Name: Explosion-proof, eco-friendly dust collector (side-mounted water tank design)
Material: Stainless steel
Rotation speed: 2980 RPM
Fan power: 2.2 kW
Water pump power: 0.55 kW
Polisher type: Dual-station polisher (dimensions customizable based on machine specifications)
Dust collection efficiency: 98–99%
Airflow: 3814–5230 m³/h
Motor, electrical control box, and wiring are all explosion-proof components.
Equipped with built-in earth-leakage protection.
Internal circulation design; no continuous water supply required—only periodic water changes.
Water pump connected to a hose for convenient water changing and cleaning.
Features a new stainless steel filter screen design.
Built-in silencer design.
Stepped water pump layout with grid barriers prevents debris from reaching the pump, thereby avoiding clogs.
--Customized Explosion-Proof and Eco-Friendly Dust Collectors: We customize the external structure, dust collection method, machine interface, airflow volume, and other specifications of our explosion-proof and eco-friendly dust collectors to suit various polishing and grinding equipment.
