Metal Ring Polishing Solution – 4-Head Automatic Flat Polishing Machine | YLOZ

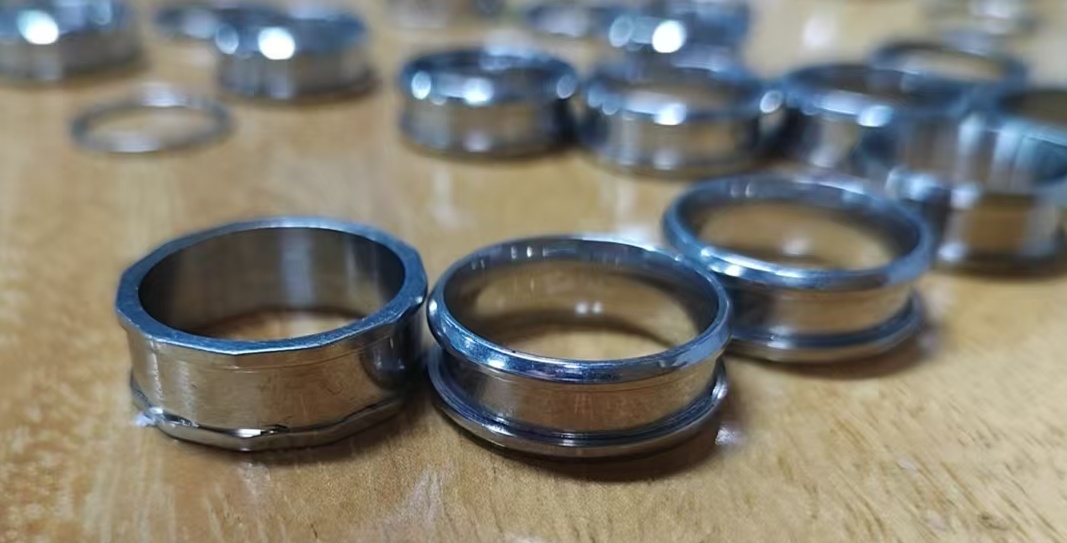

1. The product requiring polishing is a ring; the requirement is for a polished surface finish.
2. The machine used is equipped with four sets of flat polishing heads.
Equipment Specifications:
1. Polishing Heads: 4 units (equipped with 4 flat polishing wheels)
2. Chucks: 12 units (supplied with one complete set of fixtures; the large-sized fixture set is capable of holding two workpieces simultaneously)
3. Chuck Rotation Speed: 1100 RPM / 2100 RPM (adjustable via pulley system)
4. Large Rotary Table Speed: 0.7 – 3.5 RPM (steplessly adjustable; supports forward and reverse rotation). Features an intermittent pause system with an adjustable pause duration of 0–10 seconds.
5. Large Rotary Table Diameter: 800 mm
6. Polishing Wheel Speed: Right Wheel (1st wheel) — 2800 RPM; Middle Wheel (2nd wheel) — Coarse Polishing; Middle Wheel (3rd wheel) — Fine Polishing (Max. 2800 RPM); 4th Wheel — Fine Polishing (2800 RPM).
7. Polishing Motor Power: 2.2 kW × 4
8. Max. Polishing Wheel Diameter: 300 mm
9. Polishing Spindle Diameter: 25 mm
10. Max. Polishing Wheel Thickness (Clamping Capacity): 100 mm
11. Total Motor Power: 8.1 kW
12. Overall Dimensions (L×W×H): 1800 × 1600 × 1800 mm
13. Weight: 1200 kg
14. Includes a manual wax-spraying device
15. Custom tooling and fixtures available to suit specific product requirements
3、A test video of the machine after completion.
Project Overview
A metal ring manufacturer required an automated polishing solution to achieve a consistent polished surface finish on ring flat surfaces. The challenge: achieving uniform material removal and mirror finish across all rings, at production volume, without manual buffing inconsistency.
YLOZ designed and delivered a 4-head automatic flat polishing machine with custom tooling, tailored to the exact dimensions and finish requirements of the metal rings.
Polishing Requirements
Product: Metal ring (ring-shaped component with flat outer/inner surface)Objective: Achieve a consistent polished surface finishChallenge: Flat ring surfaces require even pressure distribution and multi-stage polishing to reach uniform mirror finish
Machine Solution: 4-Head Automatic Flat Polishing Machine
YLOZ supplied a 4-station flat polishing machine, each head equipped with a flat polishing wheel, processing rings sequentially through four polishing stages in a single machine pass.
Equipment Specifications
|
Parameter
|
Specification
|
|
Polishing Heads
|
4 units (4 flat polishing wheels)
|
|
Chucks
|
12 units (1 complete fixture set; large fixture holds 2 rings simultaneously)
|
|
Chuck Rotation Speed
|
1100 RPM / 2100 RPM (adjustable via pulley)
|
|
Large Rotary Table Speed
|
0.7–3.5 RPM (stepless, forward/reverse, intermittent pause 0–10 sec adjustable)
|
|
Rotary Table Diameter
|
800 mm
|
|
Polishing Wheel Speed
|
Wheel 1: 2800 RPM / Wheel 2: Coarse Polishing / Wheel 3: Fine Polishing (max 2800 RPM) / Wheel 4: Fine Polishing (2800 RPM)
|
|
Polishing Motor Power
|
2.2 kW × 4
|
|
Max. Polishing Wheel Diameter
|
300 mm
|
|
Polishing Spindle Diameter
|
25 mm
|
|
Max. Polishing Wheel Thickness
|
100 mm
|
|
Total Motor Power
|
8.1 kW
|
|
Machine Dimensions (L×W×H)
|
1800 × 1600 × 1800 mm
|
|
Weight
|
1200 kg
|
|
Additional
|
Manual wax-spraying device included
|
Key Machine Features
4-Stage Polishing in One PassFour independent polishing heads process each ring through coarse grinding → intermediate polishing → fine polishing → final polishing in sequence. This eliminates the need for multiple machines and reduces handling time between stages.
Adjustable Chuck SpeedDual-speed chuck rotation (1100 / 2100 RPM) allows the operator to optimize polishing parameters based on ring material and desired finish level. The pulley system provides simple speed adjustment without downtime.
Rotary Table with Intermittent PauseThe 800mm rotary table features stepless speed control (0.7–3.5 RPM) with forward and reverse rotation. The adjustable intermittent pause system (0–10 seconds) ensures each ring dwells in the polishing zone for the correct duration, improving finish consistency across the full batch.
Dual-Ring Large FixtureThe large fixture set holds two rings simultaneously, effectively doubling the production throughput per machine cycle compared to single-piece loading.
Manual Wax-Spraying DeviceBuilt-in wax application system delivers polishing compound evenly during the polishing process, maintaining consistent lubrication and reducing heat buildup on the ring surface.
Custom Tooling AvailableYLOZ designs and manufactures custom chucks and fixtures to match specific ring dimensions and geometries. Non-standard ring sizes or special geometries can be accommodated through custom fixture engineering.
Process Flow
- Operator loads rings into fixtures on rotary table (2 rings per large fixture)
- Rotary table indexes ring into position under Wheel 1 (2800 RPM, coarse polish)
- Table advances ring to Wheel 2 (coarse polishing stage)
- Table advances ring to Wheel 3 (fine polishing stage, max 2800 RPM)
- Table advances ring to Wheel 4 (final fine polishing)
- Wax sprayed between stages for lubrication and finish consistency
- Completed ring removed and inspected; next ring indexed into position
Why YLOZ for Ring Polishing?
Custom machine design — YLOZ engineers the machine to match your ring dimensions, material, and target finish. Standard machines are modified; YLOZ builds to specification.
Multi-stage capability — Four independent heads allow complete coarse-to-fine polishing in one machine, reducing capital equipment requirements.
Flexible fixture system — Custom chucks for different ring sizes. One machine can be retooled for multiple product variants.
Turnkey polishing solutions — Beyond the machine, YLOZ supplies all consumables: polishing wheels, compounds, and wax matched to your ring material.
Customize Your Ring Polishing Solution
YLOZ engineers custom polishing machines for rings, flat washers, flanges, and similar flat-surface components. Share your requirements:
-
Ring dimensions and material
-
Target surface finish (matte, satin, mirror)
-
Production volume per shift
-
Current polishing process and challenges
Contact YLOZ for a custom machine quotation.
