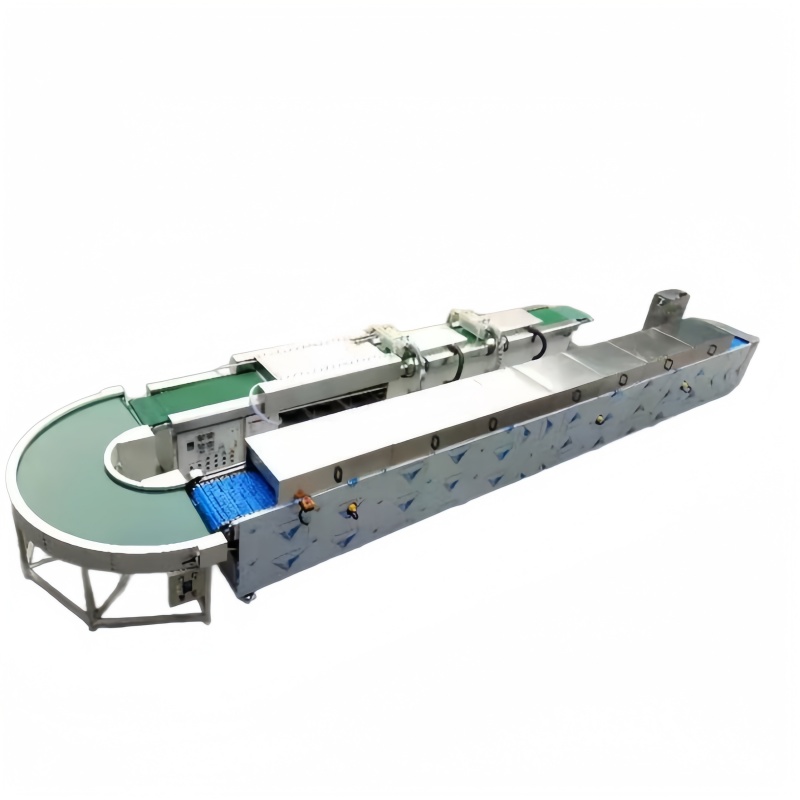

Conveyor-type Ultrasonic Cleaning Machine for Removing Oil and Stains from Product Accessories YL-ATPM-010
This industrial-grade cleaning system integrates ultrasonic washing, brush cleaning, rinsing, and hot-air drying in one continuous process. Built with SUS304/201 stainless steel, it features 150pcs 28K transducers (9KW), dual 6KW brush cleaners, and a 600mm-wide conveyor belt. With a total power of 60KW and compact 9100mm length, it delivers efficient, reliable cleaning for metal parts and precision components, ideal for automated production lines.
Brand :
YOL-POLISHINGProduct Name :
Conveyor-type Ultrasonic Cleaning MachineProduct Model :
YL-TTPM-010custom made :
Customized based on product size and cleaning requirements.Product Uses :
Suitable for various industries: cleaning surface stains on products such as automotive parts, 3C accessories, hardware products, and medical devices.
Product Introduction
The Conveyor-Type Ultrasonic Cleaning Machine is a highly efficient, intelligent piece of industrial automated cleaning equipment, specifically designed for high-volume, continuous production environments. By integrating ultrasonic cavitation technology with an automated conveying system, it achieves continuous, efficient, and uniform cleaning of workpieces—thereby significantly boosting production efficiency and reducing labor costs.
Applications: Precision cleaning of various industrial workpieces, including hardware components, automotive parts, electronic components, medical devices, optical lenses, and more.
| Advantages | Description |
| 🚀 High Efficiency & Continuity | Automated conveying system enables 24-hour uninterrupted operation, boosting production capacity by 3 to 5 times. |
| 🔊 Deep Cleaning | 40 kHz ultrasonic technology provides 360° comprehensive cleaning, penetrating deep into microscopic pores and crevices. |
| 🧠 Intelligent Control | PLC touch panel interface features multi-segment program storage and precise temperature control accurate to ±1°C. |
| 💚 Energy-Efficient & Eco-Friendly | Cleaning solution is recycled for reuse, achieving 30% energy savings while maintaining low noise levels (≤65 dB). |
| 🛡️ Durable & Reliable | Constructed from SUS304 stainless steel and equipped with imported transducers, ensuring a service life of 10+ years. |
🔧 Workflow

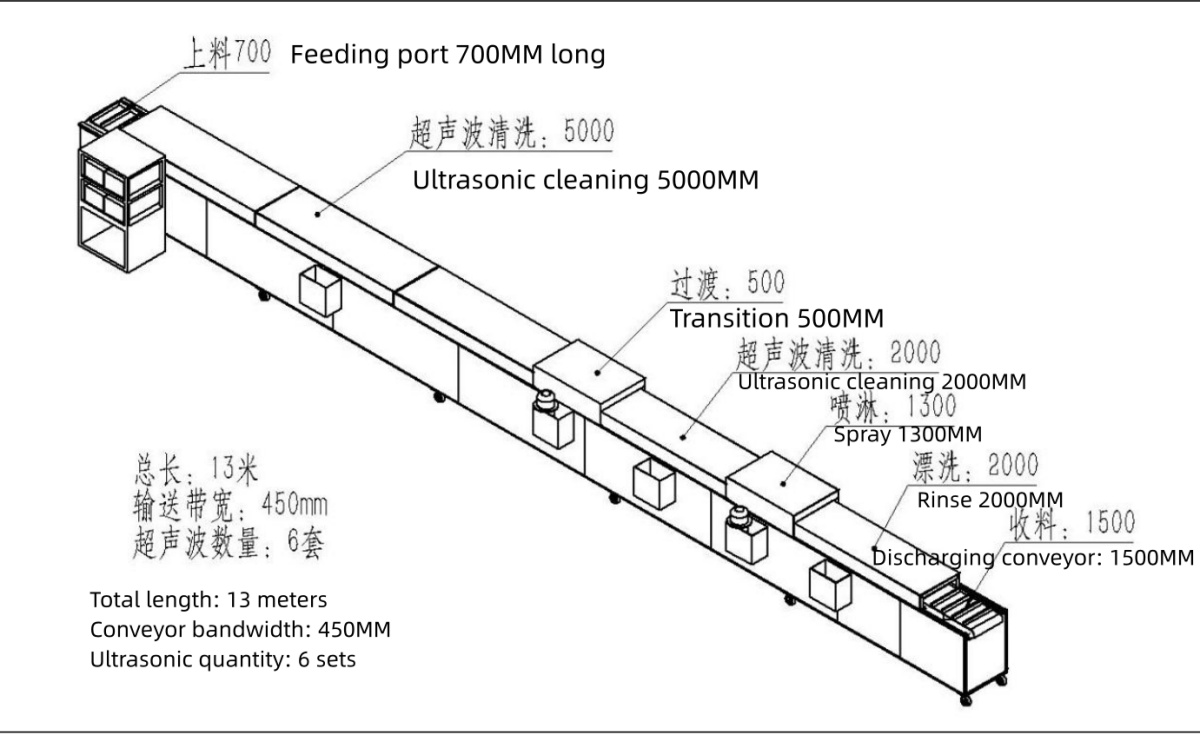

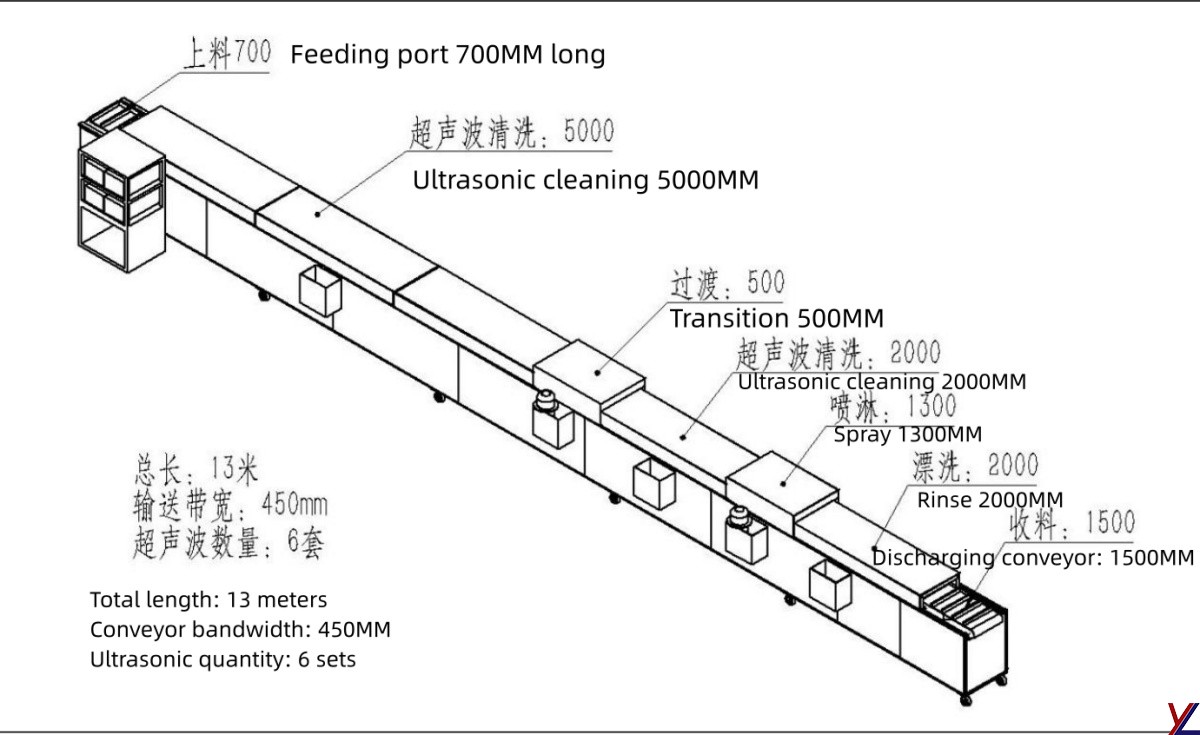

Loading → Ultrasonic Cleaning (Oil and Wax Removal) → Ultrasonic Rinsing → Pure Water Rinsing → Hot Air Drying → Unloading
Equipment Parameters
| Operating Voltage | AC380V 50HZ | The voltage can be adjusted upon request. |
| 1. Conveyor Belt Width: | 400mm / 600mm / 800mm | (Conveying method can be customized according to product requirements). |

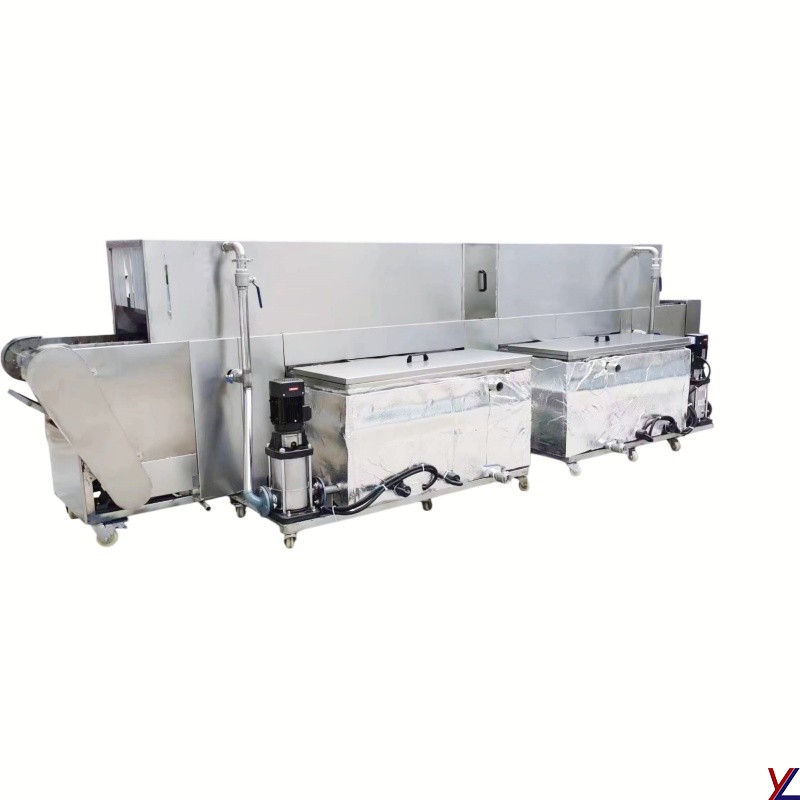

| 2. Ultrasonic Tank: | Tank: 20kW heating elements; 150 transducers totaling 9kW. Constructed from 2mm-thick SUS304 stainless steel plate. Features 150 purchased 28kHz transducers, rated at 60W each. | (Heating elements and transducers can be customized according to product requirements). |
| 3. Conveyor Motor: | 1.5kW. | |
| 4. Blower: | 4kW | (Customized according to product cleaning requirements). |
| 5. Spray Rinse Section: | 1.1kW water pump; 4kW heating elements. Constructed from 1.5mm-thick SUS304 stainless steel plate. | |
| 6. Cleaning Feed Motor: | 0.75kW | (Sized according to the conveyed load weight). |
| 7. Brush Cleaning Unit: | 6kW × 2 | (Workpieces are conveyed to the brush cleaning unit after ultrasonic cleaning is complete, followed by drying). |
| 8. Drying Oven: | 3kW. |
|
| 9. Total Power Consumption: | 60kW. |
|
| 10. Total Equipment Length: | 9100mm |
(Can be customized according to product requirements). |
| 11. Frame Materials: | Constructed using 201 stainless steel square tubing (50mm × 50mm × 1.5mm). The exterior of the frame is enclosed with 0.8mm-thick 201 stainless steel sheeting. The top cover is made of 304 stainless steel plate. Electrical components are supplied by the Delixi brand. |
|
| 12. Accessories: | Water pumps feature stainless steel casings. The square tubing for the brush cleaning unit assembly is made of 201 stainless steel material. Electrical components are supplied by Delixi. |
|
Usage Scenarios
Application Scenarios
| Industry | Typical Workpieces | Typical Workpieces |
| Automotive Components | Engine parts, gears, brake pads | Oil stains, cutting fluids, polishing pastes |
| Hardware Products | Screws, stamped parts, die-cast parts | Drawing oils, polishing waxes, fingerprints |
| Electronic Components | PCBs, connectors | Flux, rosin, dust |
| Medical Devices | Surgical instruments, implants | Blood, tissue residues |
| Optical Lenses | Eyeglass lenses, camera lenses | Grinding fluids, fingerprints |
🎯 Customer Value
Labor Savings: One unit replaces 3–5 workers, saving ¥150,000–¥250,000 annually.
Efficiency Boost: Production capacity increases 3–5 times, and delivery lead times are reduced by 40%.
Consumable Reduction: Cleaning fluid is recycled, cutting costs by 50%.
Yield Improvement: The cleaning defect rate drops from 3% to below 0.5%.
Your Success, Our Export Mission
Trusted by Over 1,000 Clients [Globally / Across Industries] | Quality Without Borders—Your Global Supply Partner
--
This industrial-grade cleaning system integrates ultrasonic washing, brush cleaning, rinsing, and hot-air drying in one continuous process. Built with SUS304/201 stainless steel, it features 150pcs 28K transducers (9KW), dual 6KW brush cleaners, and a 600mm-wide conveyor belt. With a total power of 60KW and compact 9100mm length, it delivers efficient, reliable cleaning for metal parts and precision components, ideal for automated production lines.
Details
This industrial-grade cleaning system integrates hot water brushing, spraying, and hot air drying functions to facilitate a continuous cleaning process. The main body of the equipment is constructed from SUS304/201 stainless steel and features a 600mm-wide conveyor belt. Capable of providing efficient and reliable cleaning services for metal parts and precision components, this system serves as an ideal complementary unit for automated production lines.
