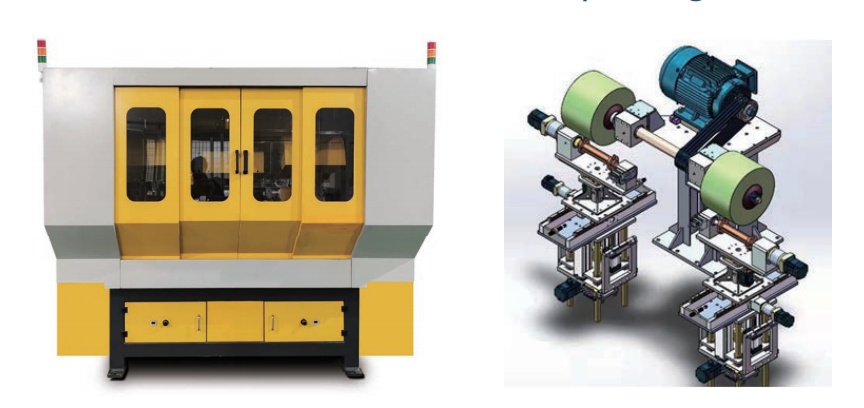

Yiliang Polishing Launches the QM4A-2-10 Dual-Station 5-Axis Simultaneous Automatic Polishing Machine—A Dual Breakthrough in Precision and Efficiency.

Guangzhou Yiliang Polishing Trading Co., Ltd. has officially launched its brand-new QM4A-2-10 Dual-Station Automatic Polishing Machine. Featuring an advanced 5-axis simultaneous CNC control system, this equipment provides a comprehensive, one-stop solution for the precision polishing of metal components.

Key Advantages:

Dual-Station Design: Two independent workstations can operate simultaneously or alternately, significantly boosting production capacity.

5-Axis Simultaneous Control: Synchronized movement across the Y, Z, A, and C axes; the A-axis offers a 0–180° rotation range, while the C-axis offers 0–360°, achieving a minimum positioning accuracy of 0.1 degrees.

Intelligent Programming: Features a CNC-style operating interface capable of storing multiple product programs, allowing for one-touch recall without the need for repetitive debugging.

Automatic Wax Spraying: Equipped with a "1-tank, 2-gun" automatic liquid wax spraying system to ensure more consistent and stable polishing results.

Safety Protection: Features a fully enclosed safety enclosure combined with a dual-port dust extraction design, meeting the IP54 protection standard.

Applicable Fields: Precision metal products such as watch cases and components, 3C electronics accessories, medical devices, jewelry, and ornaments.

Technical Specifications:

Max. Workpiece Dimensions: Φ190 × 230 mm

Polishing Wheel Specifications: Φ350 – d32 × 230 mm (Max.)

Spindle Speed: 0–1885 rpm (Stepless speed control)

Equipment Dimensions: 2280 × 1635 × 1920 mm

Total Power: 15 kW

The QM4A-2-10 supports customization for either single or dual-station configurations. It can be configured with either a 4-axis or 5-axis simultaneous control system based on specific client requirements, thereby meeting a wide range of diverse production needs.
